8-124 Section 8-6 - Mechanical Parts- Replacement Procedures
D
IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL
PRELIMINARY
4.) For systems with rear cockpit cable cover installed, perform the following steps:
a.) Disconnect the Wi-Fi adapter.
b.) Release the four Phillips screws and remove the rear cable cover.
c.) Gently pull out the BE to Cockpit cable from the axis tilt.
5.) Release the BE to Cockpit cable from the arm:
a.) Carefully raise the arm to its up position.
b.) Remove the arm base cover.
• Wi-Fi Adapter Removal Procedure

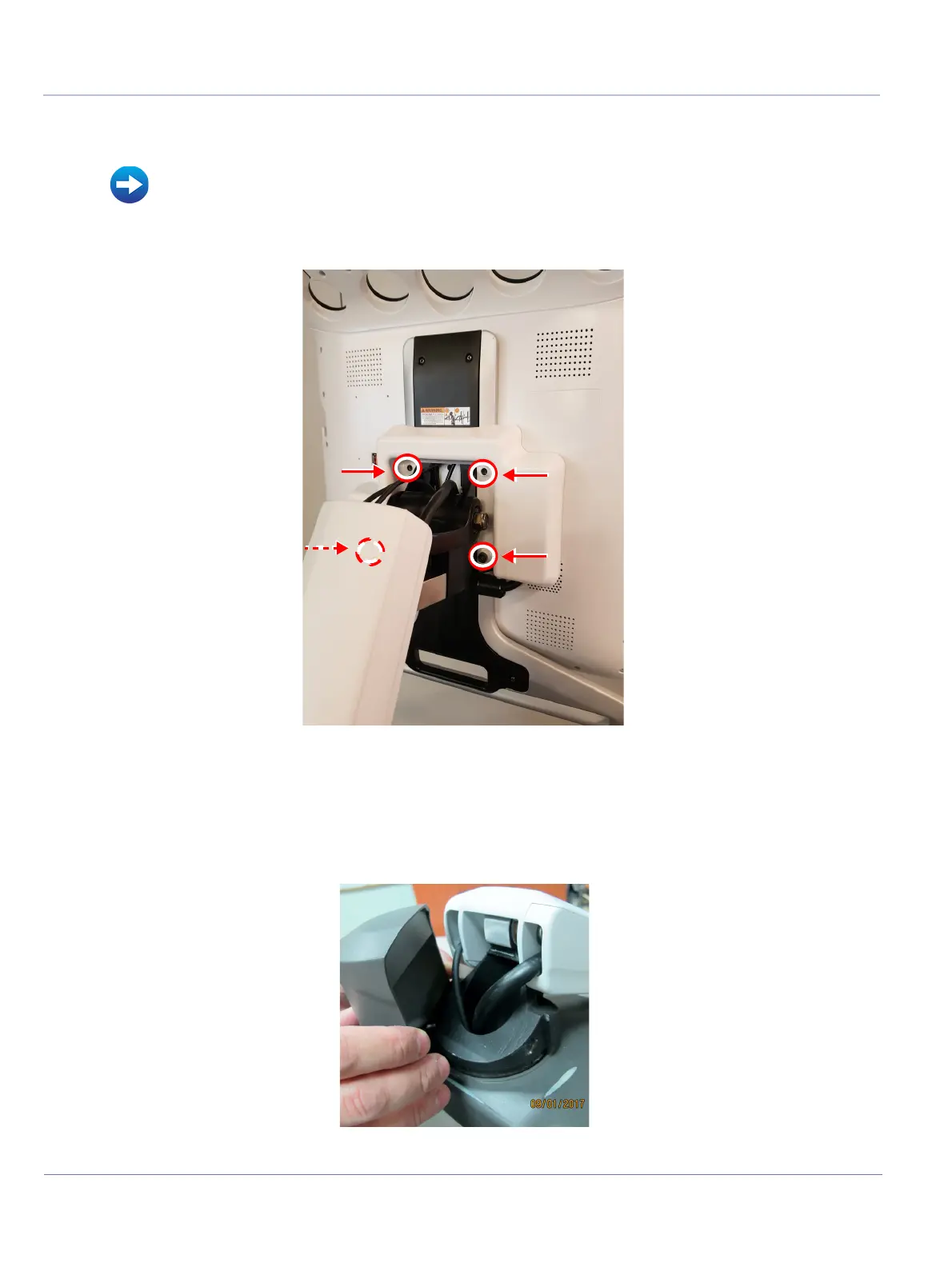

Figure 8-117 Removing Rear Cable Cover
Figure 8-118 Removing Arm Base Cover
