8-8-2-5 Wi-Fi Adapter Installation Procedure (For Systems with No Existing Wi-Fi Adapter)
1.) Attach the L-shape USB adapter to the Wi-Fi dongle.
NOTE: Perform this step only for Venue™ systems with no previously installed Wi-Fi adapter. For
systems with existing Wi-Fi adapter, skip this step and proceed to Step 2.
2.) Connect the L-shape USB adapter to the back of the Cockpit.
3.) Attach the transparent Wi-Fi dongle cover and secure with four screws.
8-8-2-6 Barcode Replacement Procedure
1.) Connect the Barcode to the system.
2.) Wait for a few minutes for the system to accept the Barcode.
3.) Restart the system

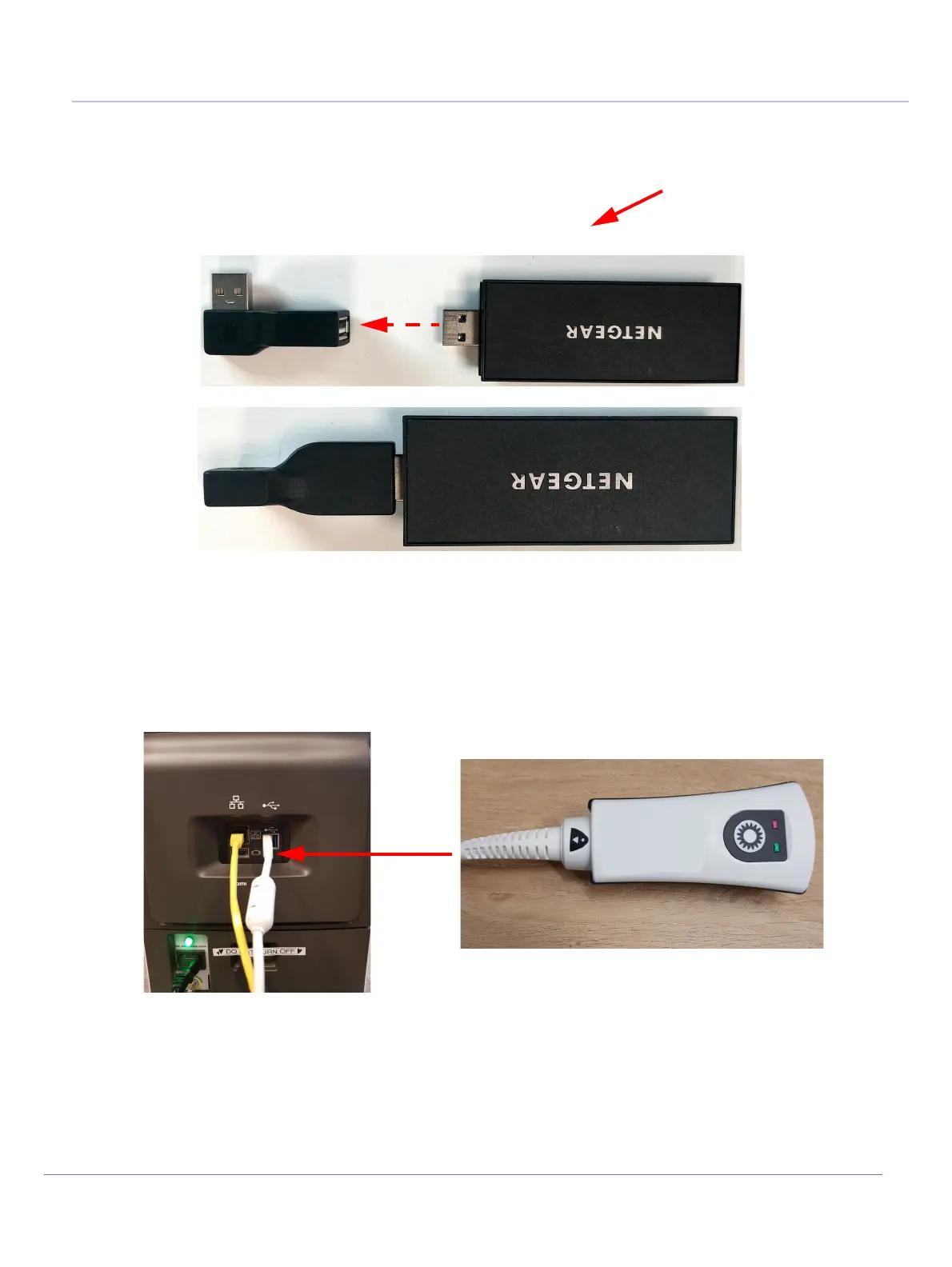

Figure 8-182 Attaching L-shape USB Adapter to Wi-Fi Dongle
Figure 8-183 Attaching L-shape USB Adapter to Wi-Fi Dongle
