IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL

9-8 Section 9-4 - Renewal Parts Lists and Diagrams

PRELIMINARY

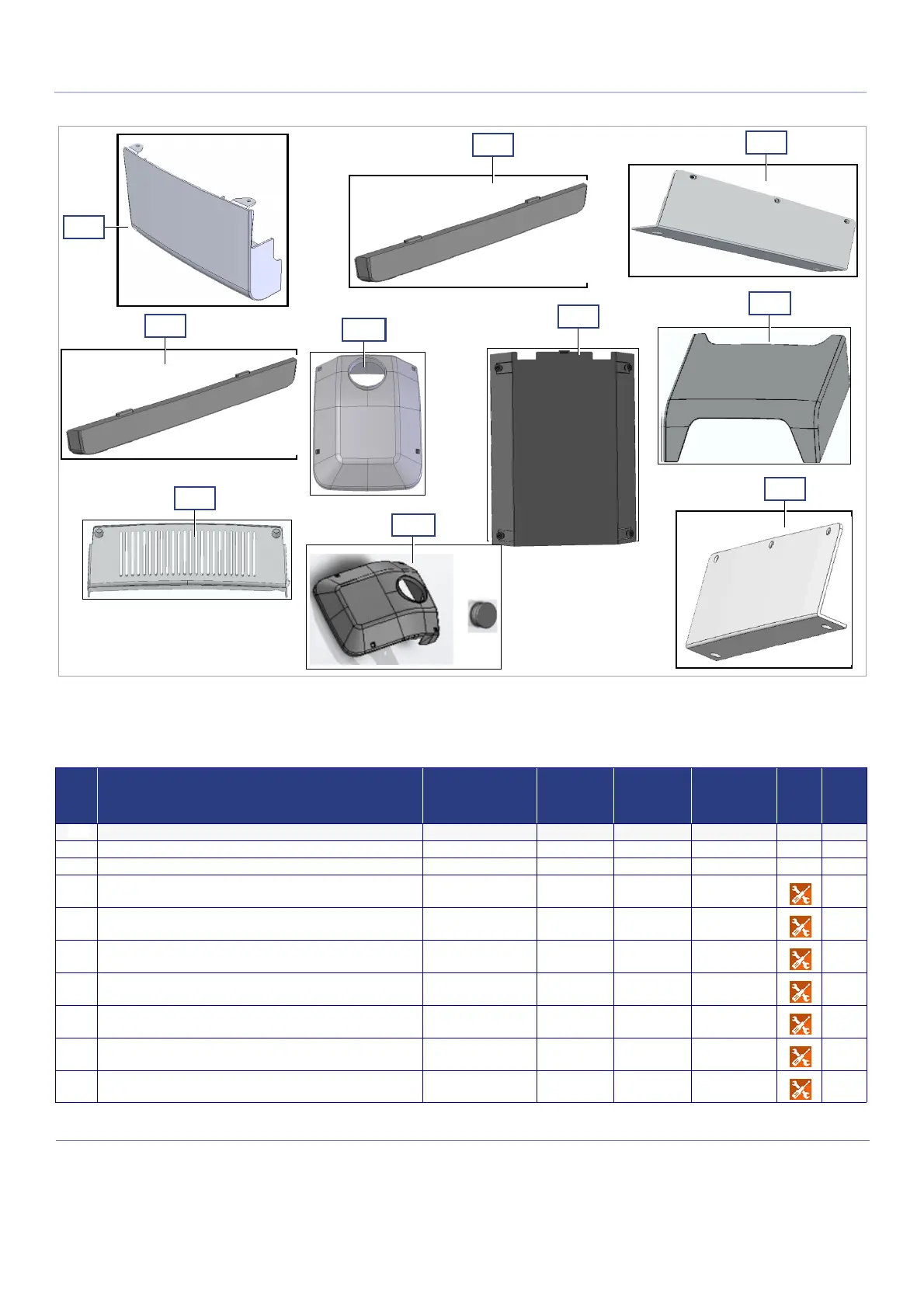

Figure 9-6 Covers - Diagram 2

Table 9-9 Covers - Diagram 2

Item Part Name Part Number

Can

Replace

Part #

Can Be

Replaced

by Part #

Not

Compatible

With

Repl

Proc

CRU

210 Cover: Front Base FRU S5759988

211 Cover: Left Side Base- FRU S5759989

212 Cover: Right Side Base - FRU S5759990

213 Cover: Right Base Bottom - FRU S5759991

214 Cover: Riser - FRU S5759992

215 Cover: Riser with Friction Adj. Hole FRU S5759992-1

216 Cover: RS Probe Connector - FRU S5759993

217 Cover: Riser Thermal - FRU S5759994

218 Cover: Left Base Bottom - FRU S5759995

219 MPB Front Metal door FRU S5731685

213

211

210

218

216

214

217

219

212

215
