IRECTION 5771498-100, REVISION 6 VENUE™ SERVICE MANUAL

9-14 Section 9-4 - Renewal Parts Lists and Diagrams

PRELIMINARY

9-4-5-3 Back End Cables

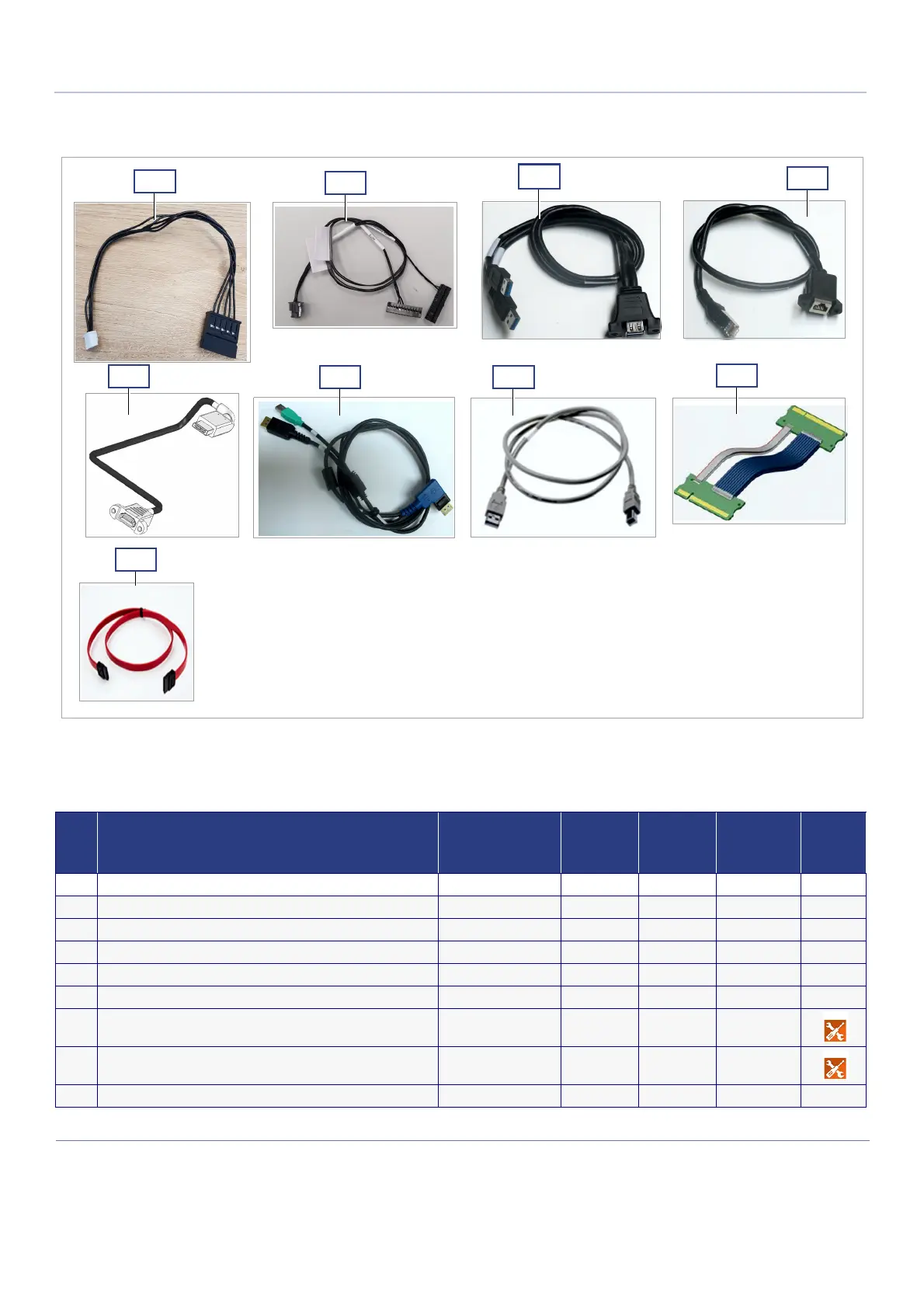

Figure 9-11 Back End Cables

Table 9-14 Back End Cables

Item Part Name Part Number

Can

Replace

Part #

Can Be

Replaced

by Part #

Not

Compatible

With

Repl

Proc

701 Cable: MITX TO SSD PWR - FRU S5721127

702 Cable: BIB TO BE SPLIT CABLE - FRU S5721145

703 Cable: BE TO IO USB3 - FRU S5715745

704 Cable: BE TO IO LAN - FRU S5715747

705 Cable: BE TO IO DP HDMI - FRU S5715746

706 Cable: BE to Cockpit - FRU S5715748

707 Cable: Printer USB - FRU S5721142

708 Cable: PCIe - FRU S5715744

709 Cable: SATA DATA BE TO SSD A - FRU S5715743

701

703

704

705

706 707

708

709

702
