XMTC User’s Manual 97
Appendix E. CE Mark Compliance
E.4 Wiring the Signal Connections for the Explosion/Flameproof Version
Refer to Figure 88 on page 94, and complete the following steps to make the proper wiring connections:
1. Install the first cable entry device in accordance with the manufacturer's instructions.
Note: If installation of the cable entry device is only partially complete, GE recommends tagging the device to ensure
the safety of subsequent users.
a. Remove the tab "Remove Before Installation".
b. Thread the cable gland entry body into the XMTC port closest to the terminal blocks.
c. Route the 4-wire power/analog output cable & its ground lug through the cable gland.
d. Fray the braided shield and spread evenly around the cone as shown in Figure 90 below. Compress the ring
to lock the shield.
e. After terminating the shield as shown, assemble the gland pieces together and tighten the gland to secure
the cable and the shield.
IMPORTANT: The cable shield must be terminated in the cable gland as shown in Figure 90 below.

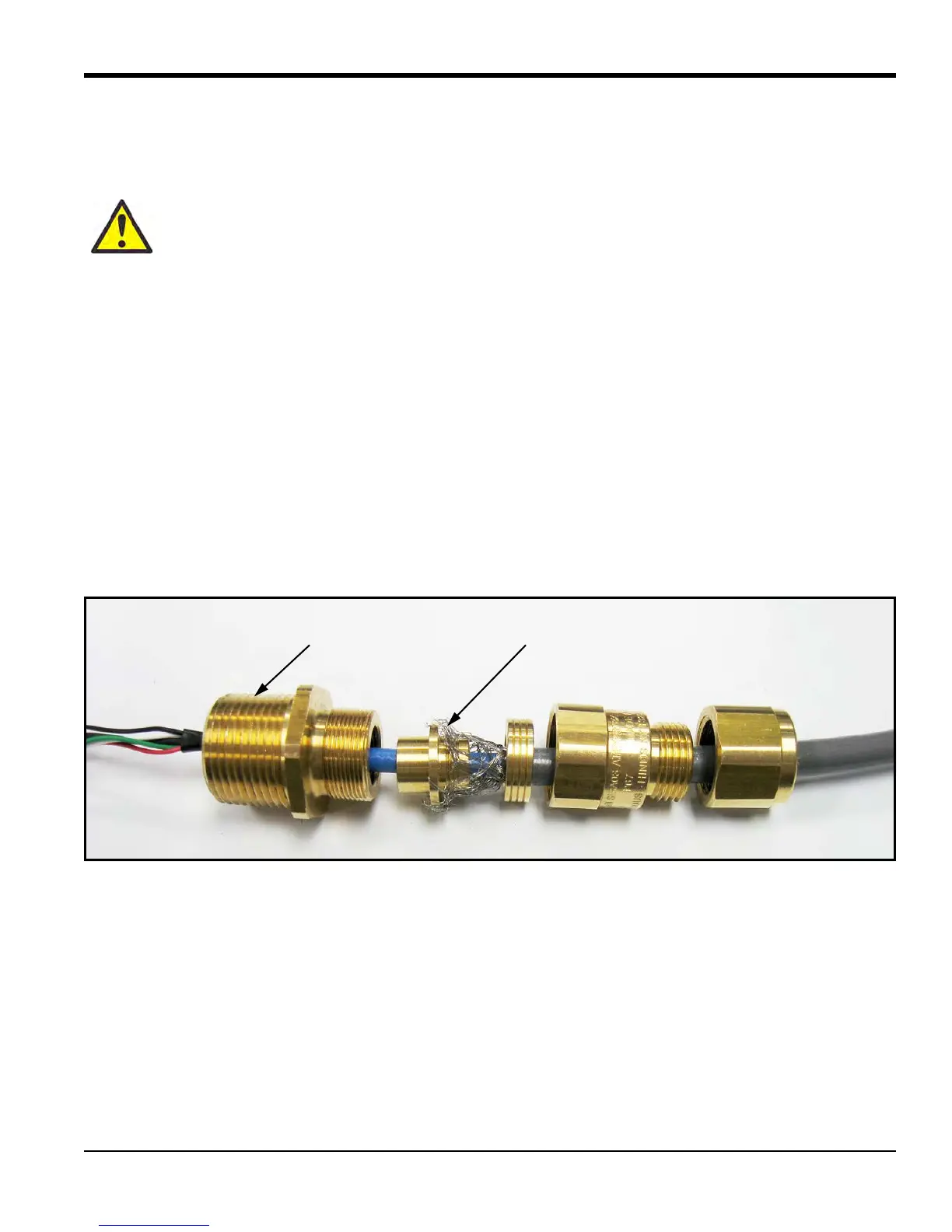

Figure 90: Proper Cable Gland Assembly (GE p/n 419-217)
2. Remove the standoff and the screw that secures the EMI filter board to its standoff. Then, pull the board from
its socket to access the TB3 connector, and loosen the terminal screws on the TB3 connector.
WARNING! Cable entries of an approved flameproof design are required. These must be
installed according to the manufacturer’s instructions. The choice of cable entry device may limit
the overall installation category achieved.
