GE XMTC User Manual

Chapter 3. Operation and Programming
28 XMTC User’s Manual
3.7 4-20 mA Output
The 4-20 mA Output command enables you to modify the output that the XMTC sends to an external device such as a
recorder or digital multimeter. When you click on the 4-20 mA Output command from the Edit Functions menu
(Figure 10 on page 20), a window similar to Figure 25 below opens. Clicking on any option opens the window for that
option, while clicking on Next Item/Enter opens the menu listed on the status line above the options.

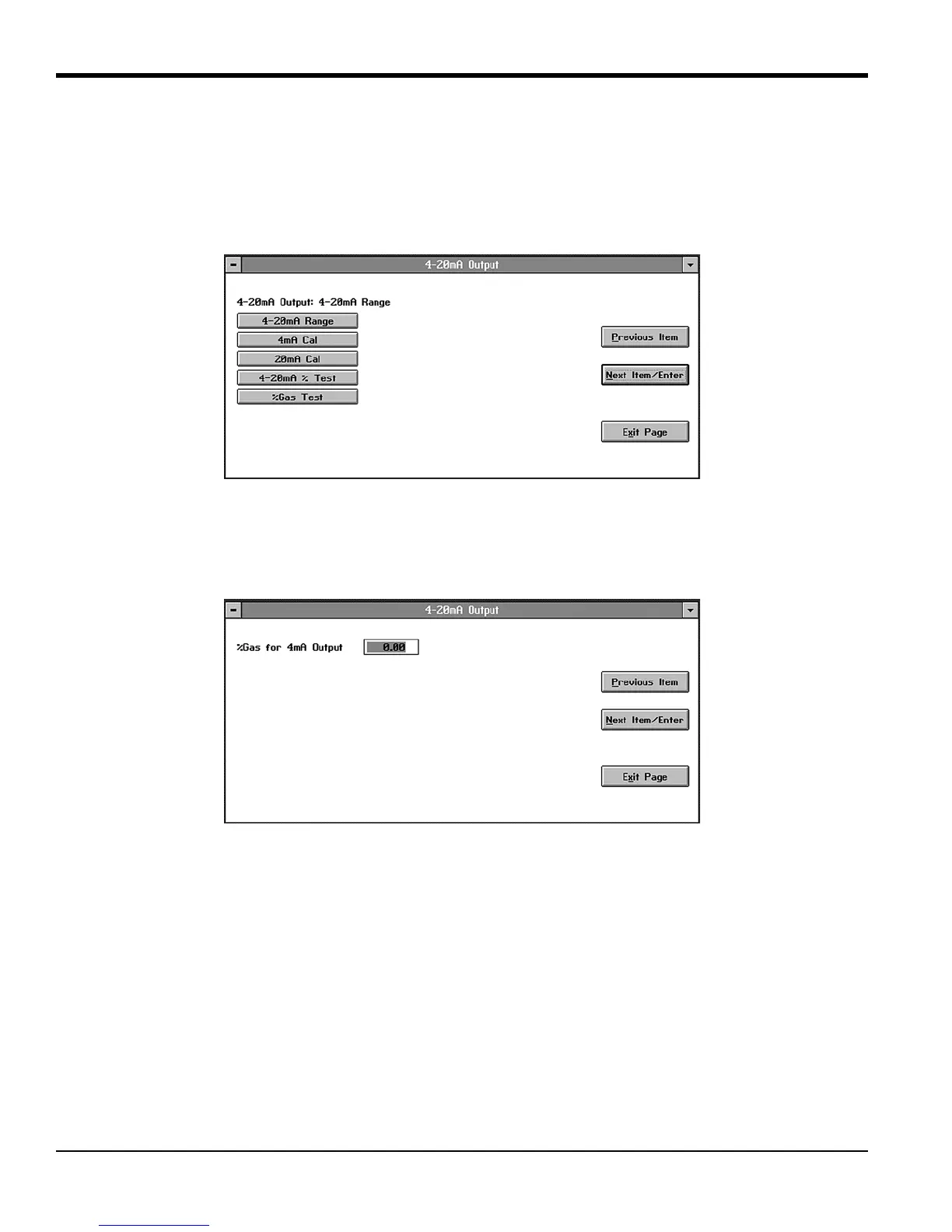

Figure 25: 4-20 mA Output Window
3.7.1 4-20 mA Range
The window for 4-20 mA Range is similar to Figure 26 below.
Figure 26: 4 mA Output Gas Percentage Window
Enter the desired percentage of gas for the 4 mA output in the text box. Clicking on Next Item/Enter opens the window
for the 20 mA output, shown in Figure 27 on page 29.
