Chapter 3. Operation and Programming
26 XMTC User’s Manual
3.6.2d Max Total Drift and Max Drift/Cal
Max Total Drift is the maximum total drift allowable as a percentage of full scale, while Max Drift/Cal is the maximum
drift allowable per calibration as a percentage of full scale. The windows for both Max Total Drift and Max Drift/Cal
are similar to Figure 21 below.

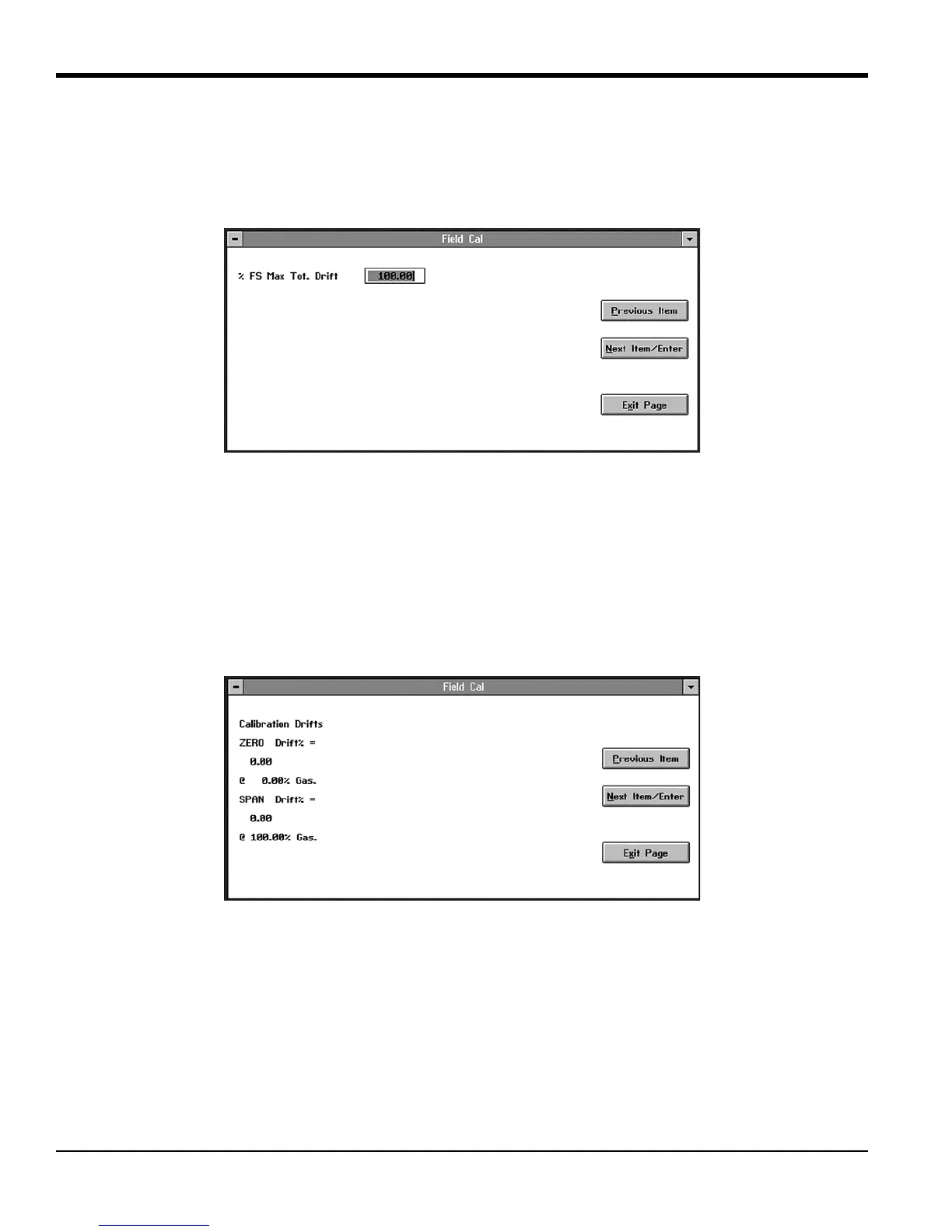

Figure 21: Max Total Drift Entry Window
Enter the desired percentage of full scale in the text box, and click Next Item/Enter to confirm the entry. (Click Previous
Item or Exit Page to close the window without changing the percentage.) You are then returned to the Configure Cal
window.
3.6.3 Calibration Drifts
The Calibration Drifts command enables you to view the drift of both zero and span gases since the last calibration. A
window similar to Figure 22 below opens.
Figure 22: Calibration Drifts Window
Click on any button to return to the Field Cal window.
