XMTC User’s Manual 33
Chapter 3. Operation and Programming
3.8.1 Total Drift Error (cont.)

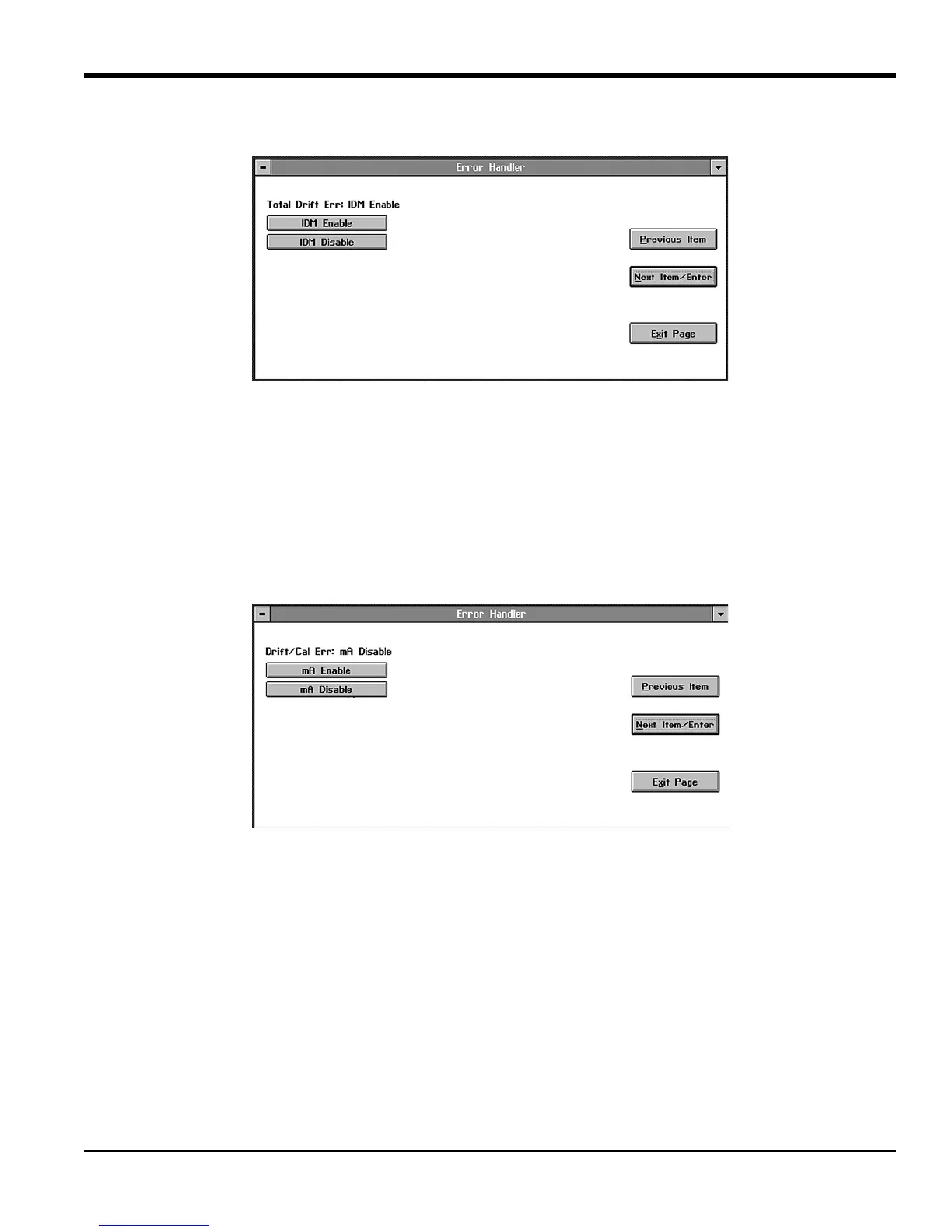

Figure 35: IDM Enable/Disable Window
Click on IDM Enable to enable drift error. (Click Previous Item or Exit Page to close the window without changing the
output.) However, if you click on mA Disable, you are also asked for confirmation. Click on IDM Disable to disable the
drift error. You are then returned to the Error Handler window.
3.8.2 Drift/Cal Error
The DriftCal Error option lets you enable or disable error handling for DriftCal, generated when an error occurs during
calibration. The window is similar to Figure 36 below.
Figure 36: DriftCal Error Window
If you click on mA Enable, the window displays a text box similar to that in Figure 34 on page 32. Enter the desired
error mA output in the text box, and click on Next Item/Enter to confirm the entry. You are then asked for confirmation,
as shown in a window similar to Figure 35. Click on IDM Enable to enable drift error. (Click Previous Item or Exit
Page to close the window without changing the output.) However, if you click on mA Disable, you are also asked for
confirmation. Click on IDM Disable to disable the drift error. You are then returned to the Error Handler window.
