XMTC
User
’s Manual
45
Chapter 4. Calibration
4.4
Preparing the Transmitter for Calibration
Complete the following steps before connecting and adjusting th
e zero, span, and reference gases:
1.
Allow 30 minutes after power
is turned on for the XMTC to reach temperature stability
.
2.
Loosen the set screw that locks the
XMTC
cover in place, and unscrew the cover (see
Figur
e
53
below).

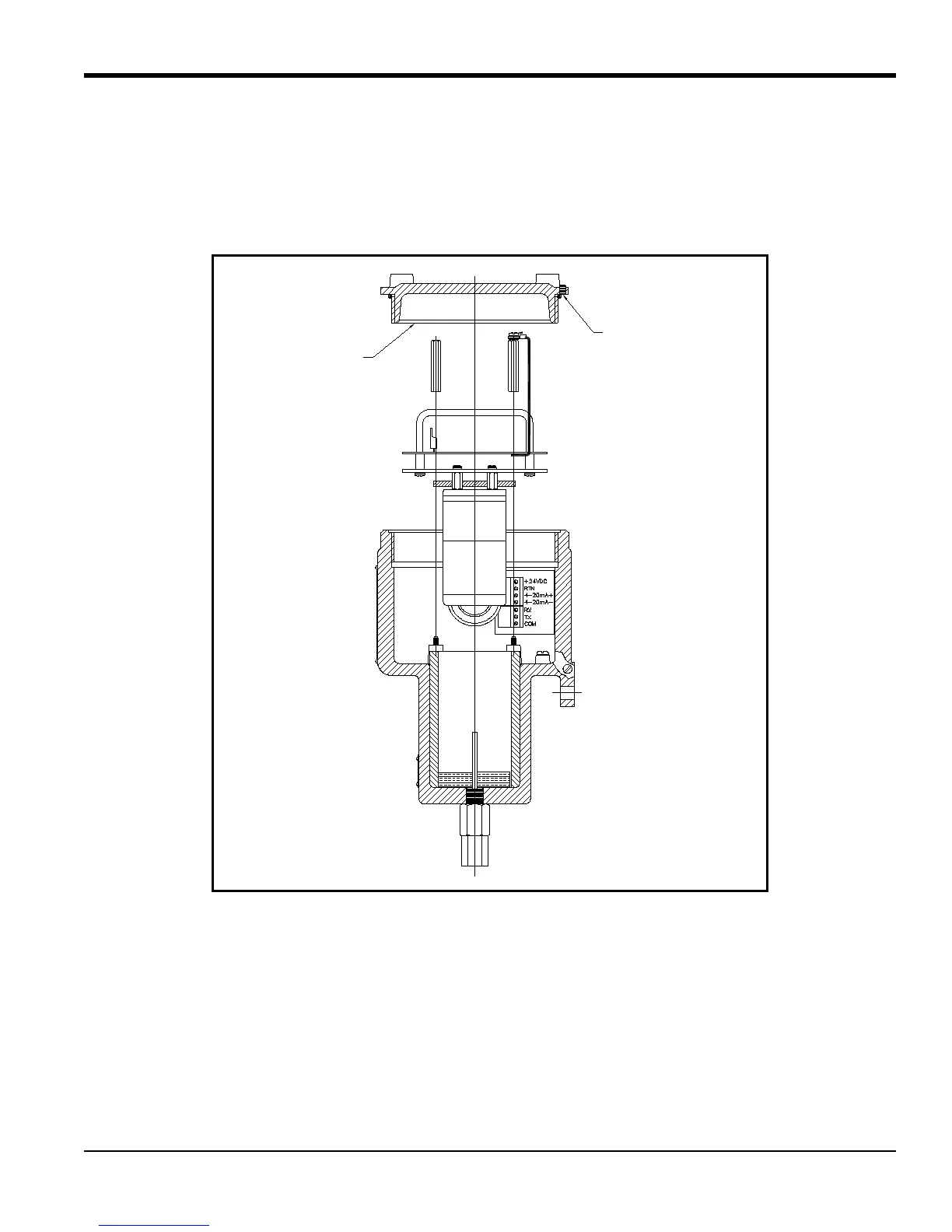

Figur
e 53: Transmitter Cover and Set Scr
ew
Set Screw
Cover
54
56
