4 - System setup
4.78
Serial Port Settings

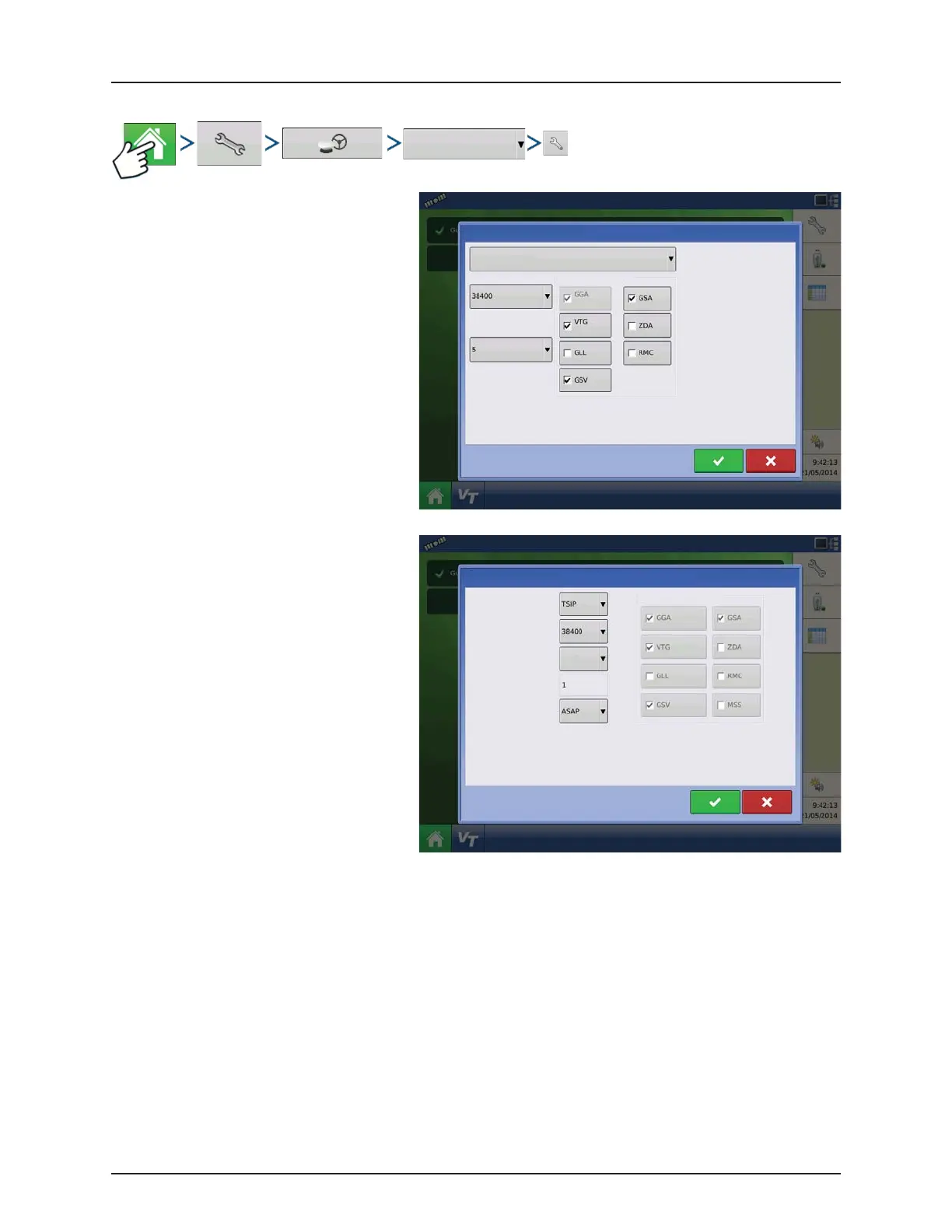

The Serial Port Settings screen is the place where
you can adjust GPS output. The appearance of the
Serial Port Settings screen varies depending upon
your model of GPS receiver. Shown to the left is the
Serial Port Settings screen as it would appear for an
operator of a GPS 1500 or 2500 antenna.
The appearance of this TSIP receiver GPS Port
Setup screen is the same for both Ports A and B.
• Output Type
Displays what type of protocol the receiver is using. (NMEA or TSIP).
• Output Baud Rate
Displays the speed at which the receiver communicates with the display. For optimal performance, the GPS baud rate
should be set at 19,200 or higher.
• Output Parity
Displays either Odd or None.
• If using TSIP, this setting should be Odd.
• If using NMEA, this setting should be None.
÷
NOTE! Parity refers to a technique for checking data integrity after transmission.
Serial
GPS Port Setup
Port A - Connected
Output Baud Rate
GPS Position Rate (Hz)
NMEA Messages
(Position)
(Speed)
NMEA Messages
(Position)
(Speed)
Output Type
Output Baud Rate
Output Parity
GPS Pos. Rate (Hz)
Output Rate (Hz)
None
GPS Port Setup - PORT A
