4 - System setup
4.100
Rate Control: Product Control Toolbox

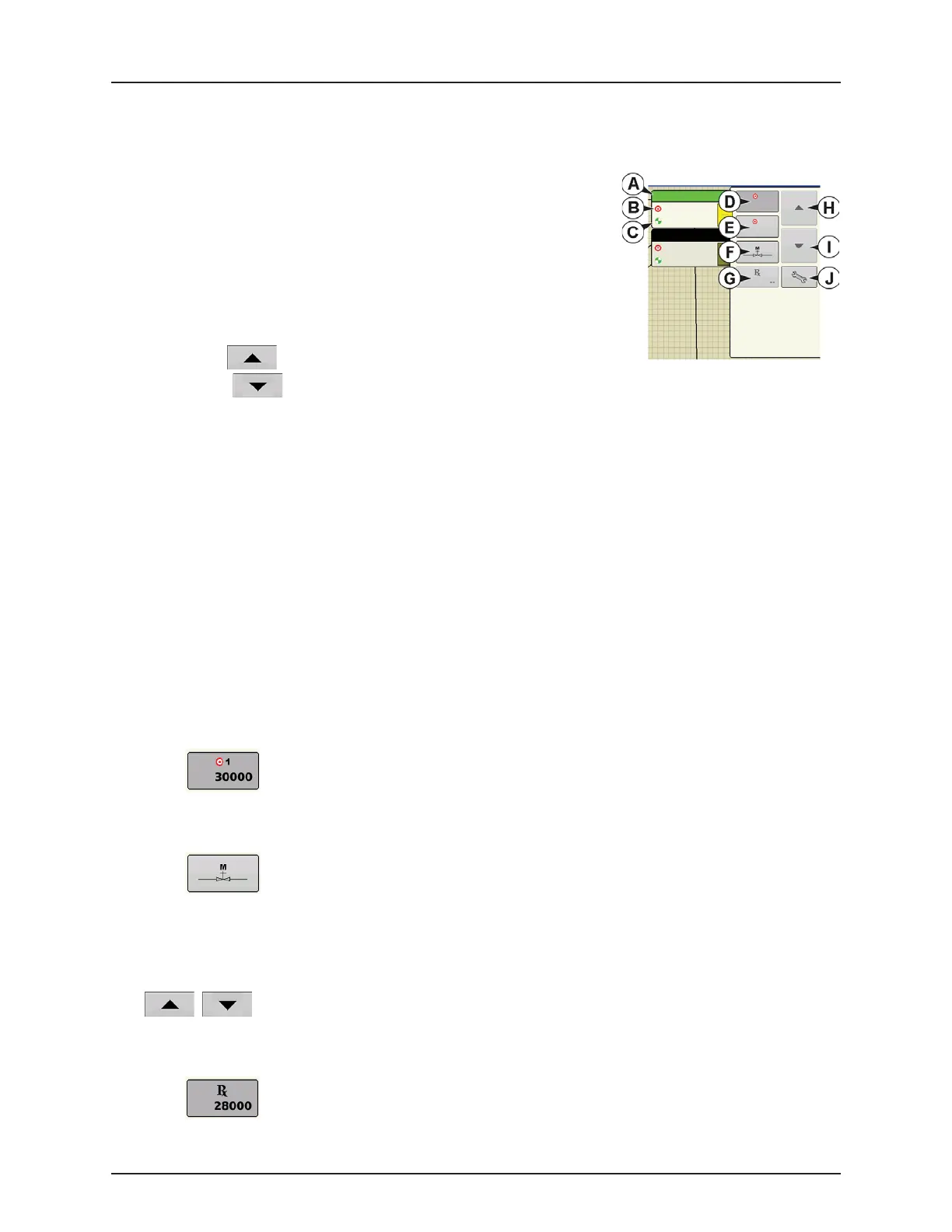

During Run Time operations, the Product Tabs are shown in the upper right-hand side of the Map screen.
Press the Product Tabs, and an extended view shows following, all of which are described below.
A. Product
B. Target Rate
C. Actual Rate
D. Rate 1 button
E. Rate 2 button
F. Manual Valve Control
G. Prescription button
H. Rate Increase
I. Rate Decrease
J. Rate Setup button
• Target Rate
The Target Rate is desired application rate.
÷
NOTE! In some conditions, the Target Rate may increment more quickly than the Actual Rate.
• Actual Rate
The Flow Sensor returns the actual rate being applied.
÷
NOTE! In some conditions, the Actual Rate may increment slower than the Target Rate, or its numeric values may vary
before matching the Target Rate.
• Container Level
The Container Level shows the amount of product in the main tank. For more information, see “Rate Control: Container
Level” on page 4.102.
• Rate 1 and Rate 2 buttons
The Rate 1 and Rate 2 settings represent preset application rates that allow operators to quickly change
between desired target rates for each individual product.
• Manual Valve Control button
The Manual Valve Control button allows operators to specify the position of the control valve. Operators use this
option to prime the system before application or clean out the equipment at the end of the day.
• Rate Increase and Decrease Arrows
/ allow Product Application Rate to be changed according to the Target Rate Increment. In using
manual valve control, the increase and decrease buttons allow the position of the control valve to be defined by the
operator.
• Prescription button
For more information, see “Loading Prescriptions” on page 4.104.
