Hitachi ZAXIS 17U-2 User Manual

MAINTENANCE
7-4
OPENING/CLOSING RIGHT SIDE COVERS
WARNING:
• Do not keep the right side cover (5) open when
the machine is parked on a slope, or while the
wind is blowing hard. The right side cover may
close accidentally, possibly resulting in per-
sonal injury.
• When opening/closing the right side cover, take
care not to allow your fingers to be pinched
with the cover.
1. Unlock key (1), and open fuel refueling cover (2).
2. Release the lock (3) in the fuel refueling cover (2).
3. Unlock key (4), and open right side cover (5). Take
stopper (6) out of holder (7). Install stopper (6) into
the lock position.
4. When close right side cover (5), follow the reverse
order of the above procedure.

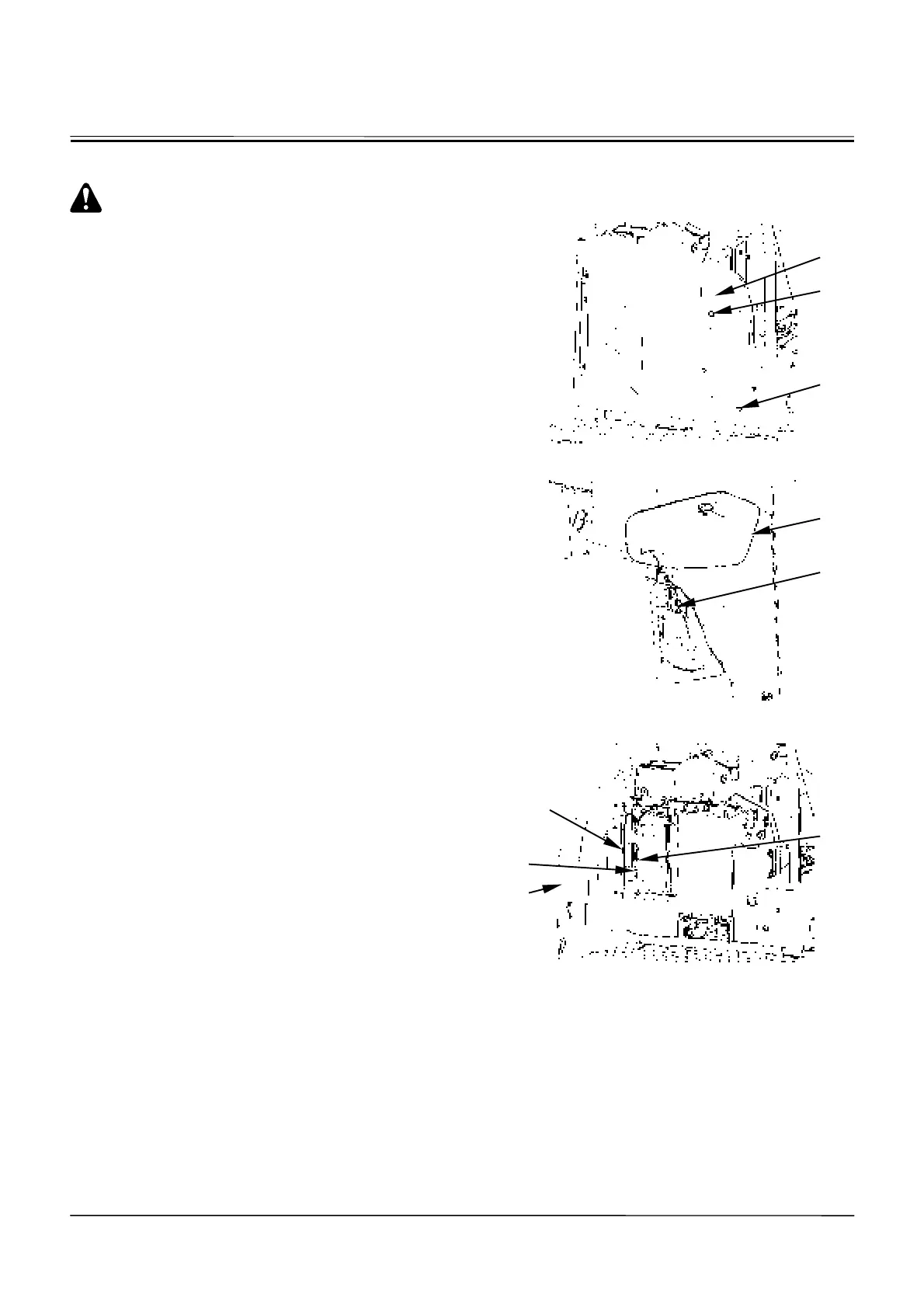

M1MS-07-003
M1MS-07-004
M1MS-07-005
2
1
4
2
3
6
7
5
Lock
Position
