SPECIFICATIONS
12-2

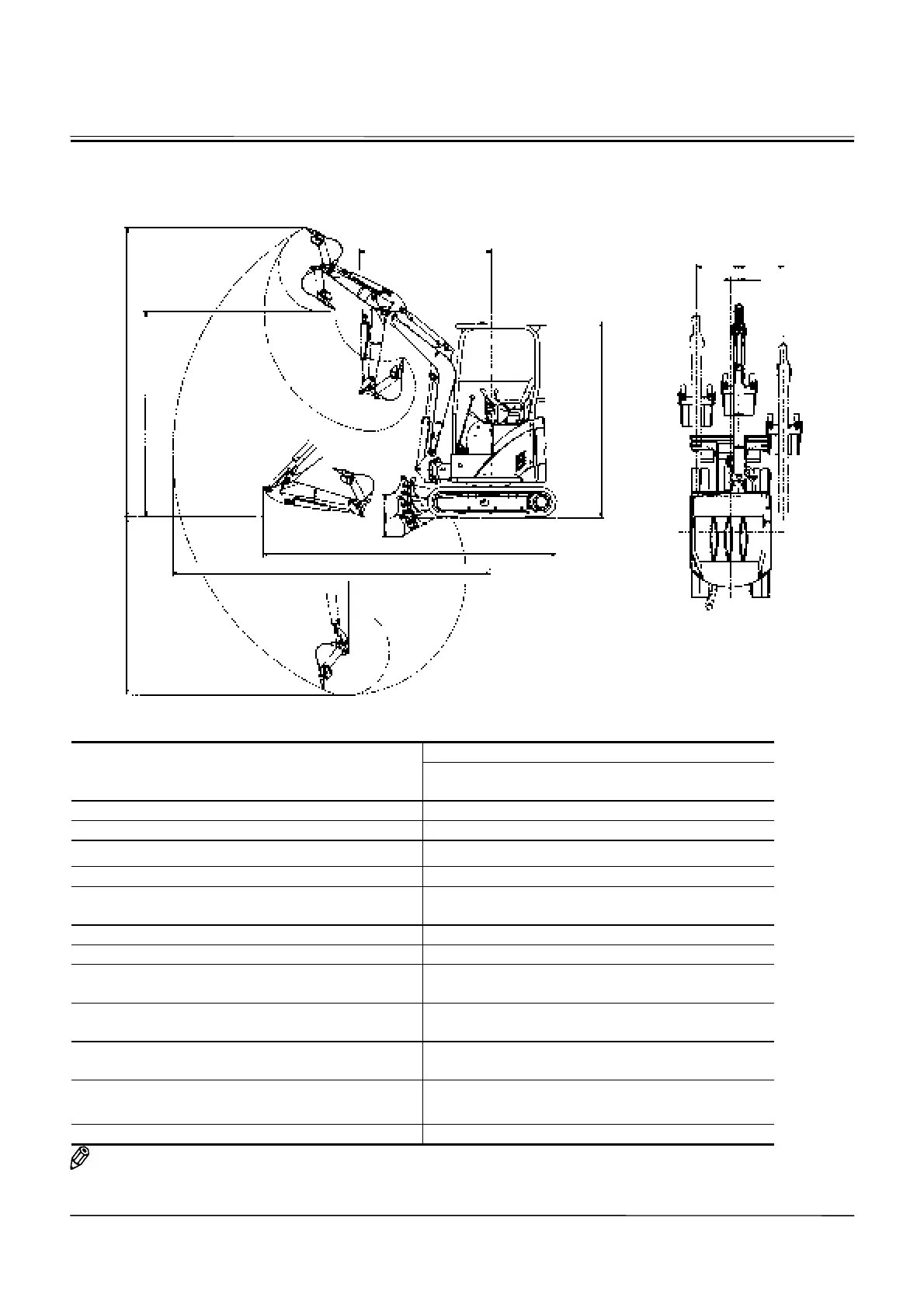

WORKING RANGES
M1MS-12-002
ZAXIS17U
-2
Canopy
ROPS Canopy
A: Maximum Digging Reach mm (ft⋅in) 3900 (12′10″) [4080 (13′5″)]
B: Maximum Digging Depth mm (ft⋅in) 2170 (7′1″) [2370 (7′9″)]
C: Maximum Cutting Height mm (ft⋅in) 3560 (11′8″) [3660 (12′0″)]
D: Maximum Dumping Height mm (ft⋅in) 2530 (8′4″) [2630 (8′8″)]
E: Transport Height
(Rubber Crawler) mm (ft⋅in)
2380 (7′10″)
2400 (7′11″)
F: Overall Transport Length mm (ft⋅in) 3590 (11′9″) [3640 (11′11″)]
G: Minimum Swing Radius mm (ft⋅in) 1540 (5′1″) [1630 (5′4″)]
H: Boom-Swing Pivot Offset Distance
mm (ft⋅in)
100 (4″)
I: Blade Bottom Highest Position
(above ground level)
282 (11″)
J: Blade Bottom Lowest Position
(above ground level) mm (ft⋅in)
240 (9″)
K: Offset Distance mm (ft⋅in)
L520 (L 1′9″) / R550 (R1′10″)
Maximum Boom-Swing Angle Degree L70° / R50°
NOTE: The dimensions do not include the height of the shoe lug.
The dimensions for the machine equipped with the long arm are shown in brackets [ ].
E
G
D
C
B
F
J
I
K
H
K
