OPERATION
5-3
CONTROL LEVER
(SAE-BACKHOE PATTERN) --- IF EQUIPPED
(2 Way Multi Valve)
WARNING: Make sure you know the location and
function of each control lever before operating.
The upperstructure and/or front attachment may
unexpectedly move in an attempt to look back
because a part of operator’s body may come into
contact with the control lever(s). Take care not to
come into contact with the control levers when
looking back.

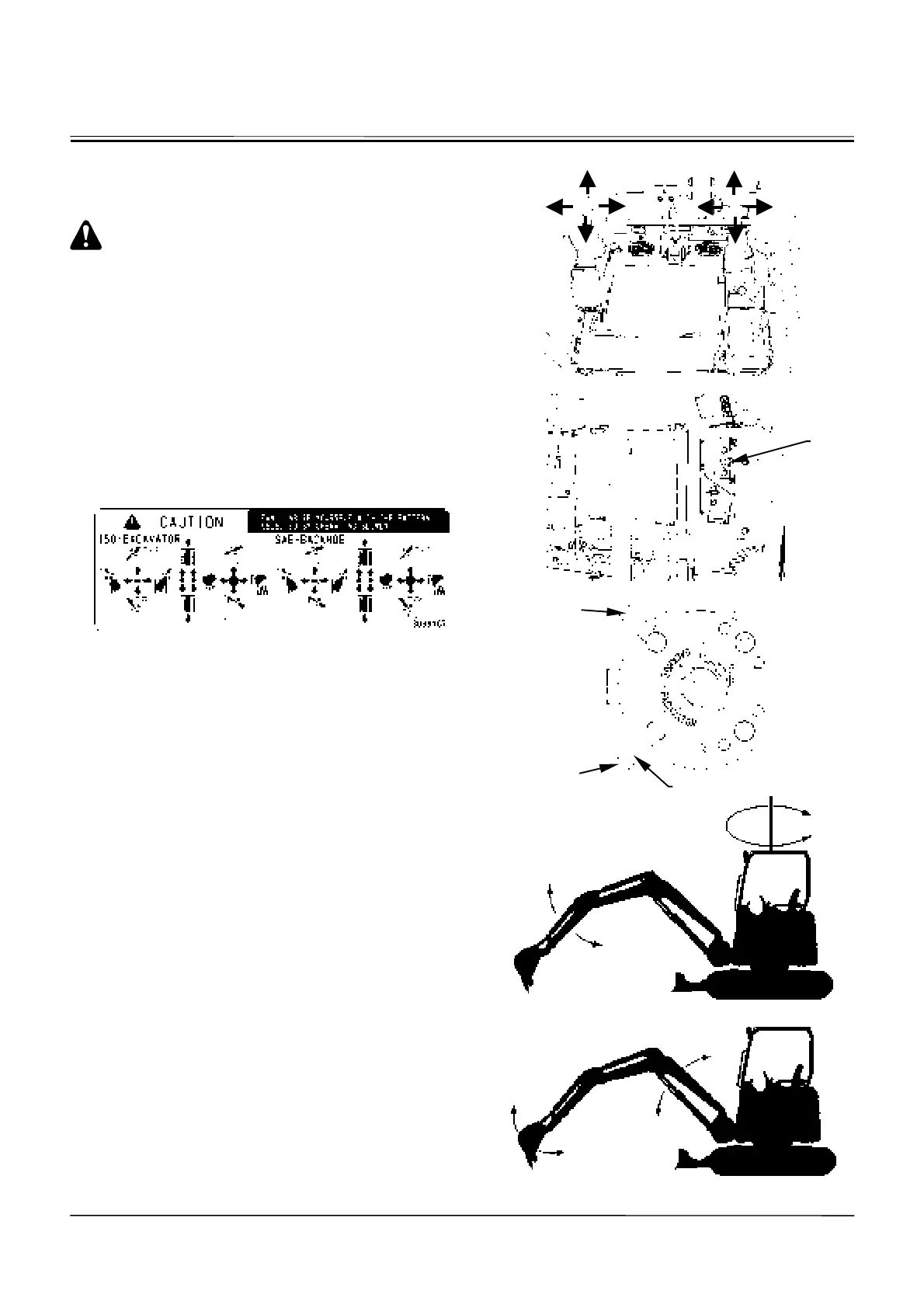

Labels showing the SAE-BACKHOE pattern are provided
on the operator’s right.
Whenever changing the pattern, stop the engine, rotate the
selector valve (9), and set to the pattern position.
M1M7-05-028
When a control lever is released, it automatically returns to
neutral, stopping the function in that position.
1- Boom Lower
2- Boom Raise
3- Swing Left
4- Swing Right
5- Arm Roll-Out
6- Arm Roll-In
7- Bucket Roll-In
8- Bucket Roll-Out
M1MS-05-003
M1MS-05-010
M1MS-05-011
M1M7-05-001
M1M7-05-002
4
3
1
2
8
7
5
6
9
43
2
1
6
5
7
8
9
Excavato
r
Position
Backhoe
Position
