Hitachi ZAXIS 17U-2 User Manual

OPERATION
5-2

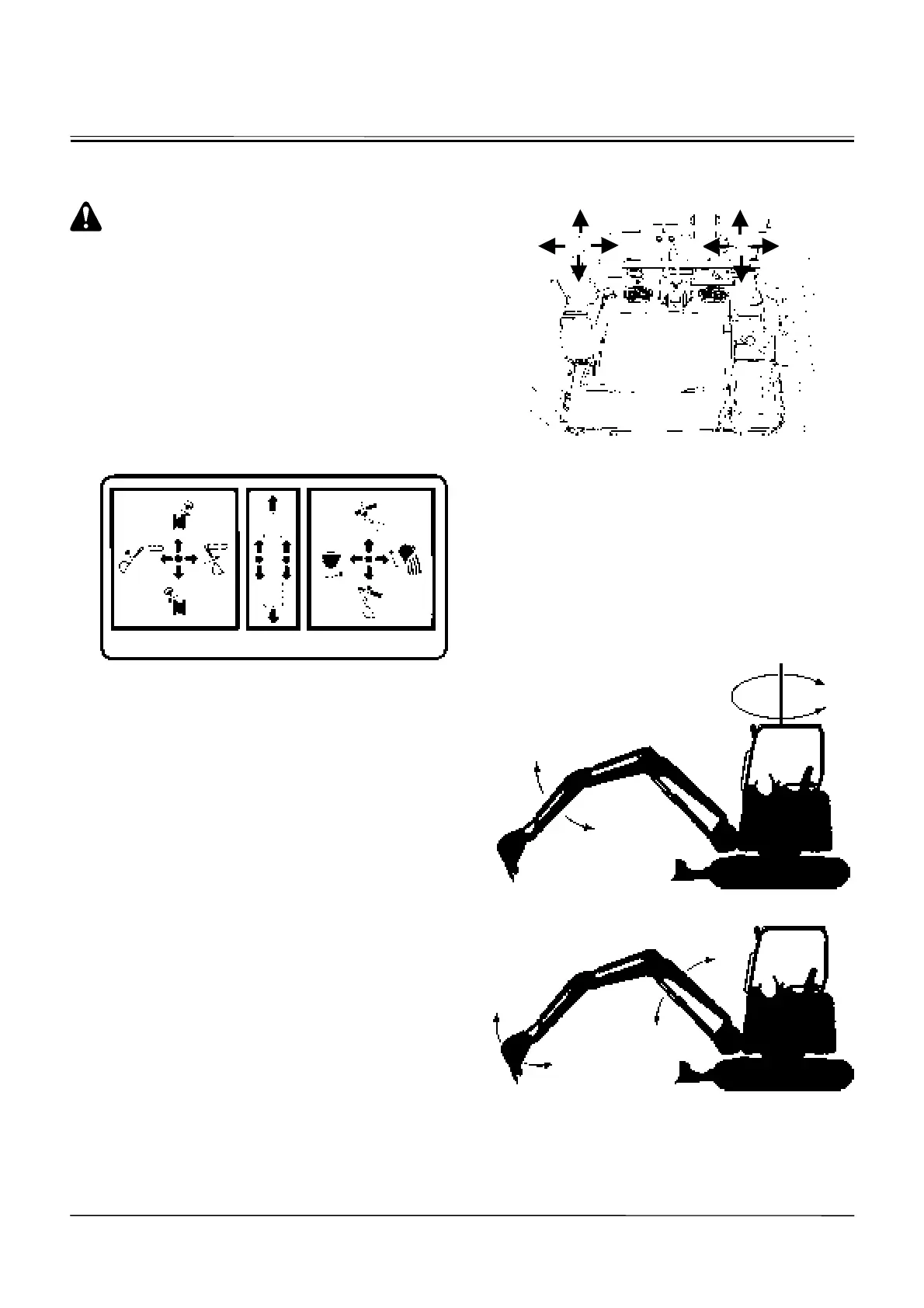

CONTROL LEVER (H-PATTERN: HITACHI
EXCAVATOR PATTERN)
WARNING: Make sure to check the location and
function of each control lever before operating.
The upperstructure and/or front attachment may
unexpectedly move in an attempt to look back
because a part of operator’s body may come into
contact with the control lever(s). Take care not to
come into contact with the control levers when
looking back.
Labels displaying the available lever control patterns are
provided at the right of the operator. As illustrated below,
the labels with H pattern mark at the right bottom corner
indicate the HITACHI Excavator Pattern.
M1LA-05-014
When a control lever is released, it automatically returns
to neutral, stopping the function in that position.
1- Swing Right
2- Swing Left
3- Arm Roll-Out
4- Arm Roll-In
5- Boom Lower
6- Boom Raise
7- Bucket Roll-In
8- Bucket Roll-Out
M1MS-05-003
M1M7-05-001
M1M7-05-002
1
2
3
4
8
7
5
6
43
2
1
6
5
7
8
