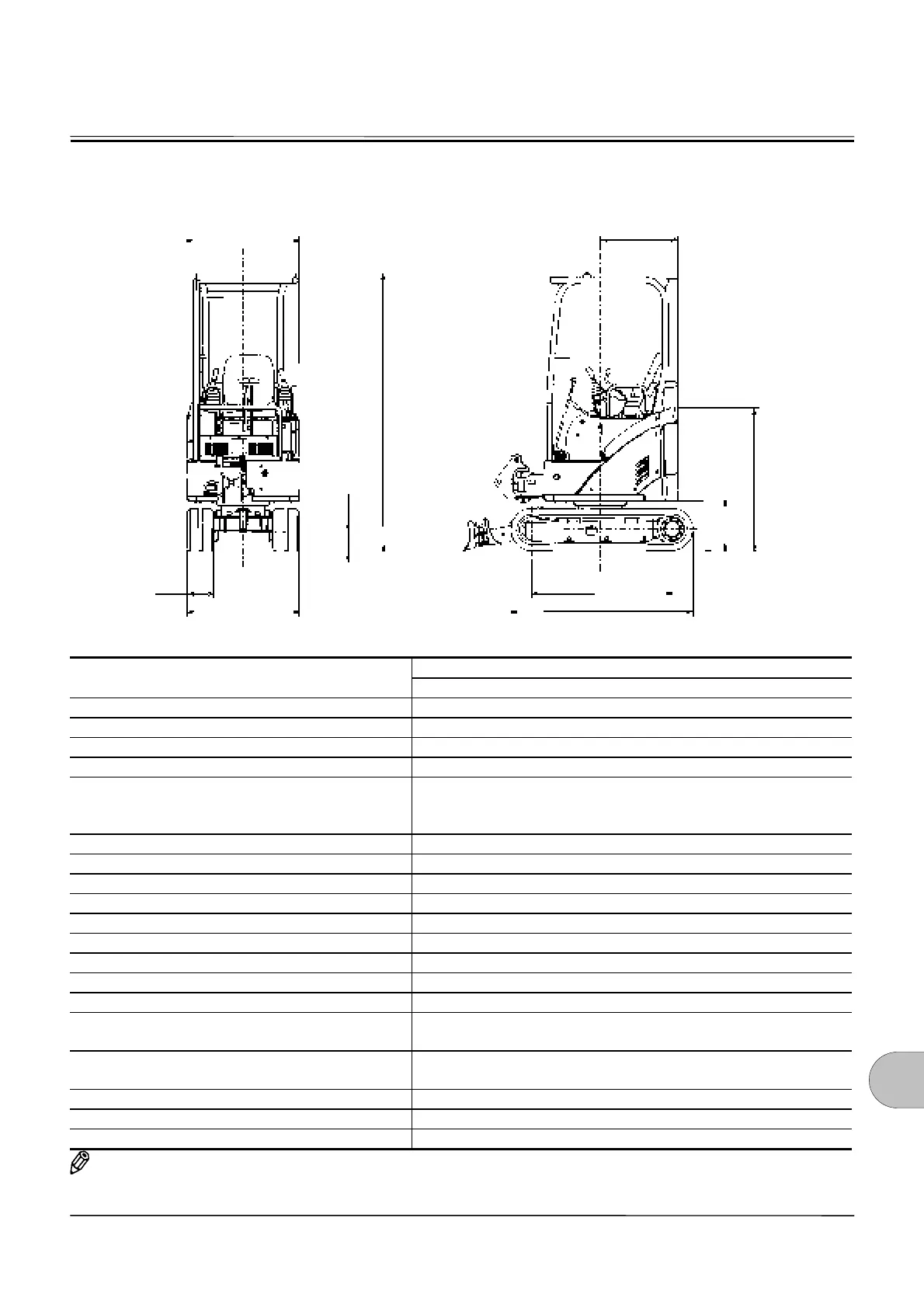

SPECIFICATIONS
12-1
SPECIFICATIONS
M1MS-12-001
ZAXIS17U
-2
Type
ROPS Canopy
Type of Front-End Attachment Boom Swing Type
Bucket Capacity (Heaped) m
3
(yd
3
) 0.044 (0.058)
Operating Weight kg (lb) 1770 (3900)
Basic Machine Weight kg (lb) 1420 (3130)
Engine kW/min
-1
(PS/rpm)
Yanmar 3TNV70
11.0/2400
(15.0/2400)
A: Overall Width mm (ft⋅in) 980 (3′3″)
B: Overall Height mm (ft⋅in) 2400 (7′11″)
C: Rear-End Swing Radius mm (ft⋅in) 675 (2′3″)
D: Minimum Ground Clearance mm (ft⋅in) 165 (6″)
E: Counterweight Height mm (ft⋅in) 435 (1′5″)
F: Engine Cover Height mm (ft⋅in) 1230 (4′0″)
G: Undercarriage Length mm (ft⋅in) 1570 (5′2″)
H: Undercarriage Width mm (ft⋅in) 970 (3′2″) / 1280 (4′2″)
I: Sprocket Center to Idler Center mm (ft⋅in) 1210 (3′12″)
J: Track Shoe Width mm (ft⋅in)
230 (9″)
(Rubber Crawler)
Ground Pressure
kPa
(kgf/cm
2
, psi)
28.0
(0.29, 4.1)
Swing Speed min
–1
(rpm) 8.9
Travel Speed (fast/slow) km/h (mph) 4.3/2.4 (2.7/1.5)
Gradeability 30° (tan θ = 0.58)
NOTE: The dimensions do not include the height of the shoe lug.
A
B
D
J
H
C
F
E
I
G
