Honda BF40D Owner's Manual

25
CONTROLS AND FEATURES (R type)

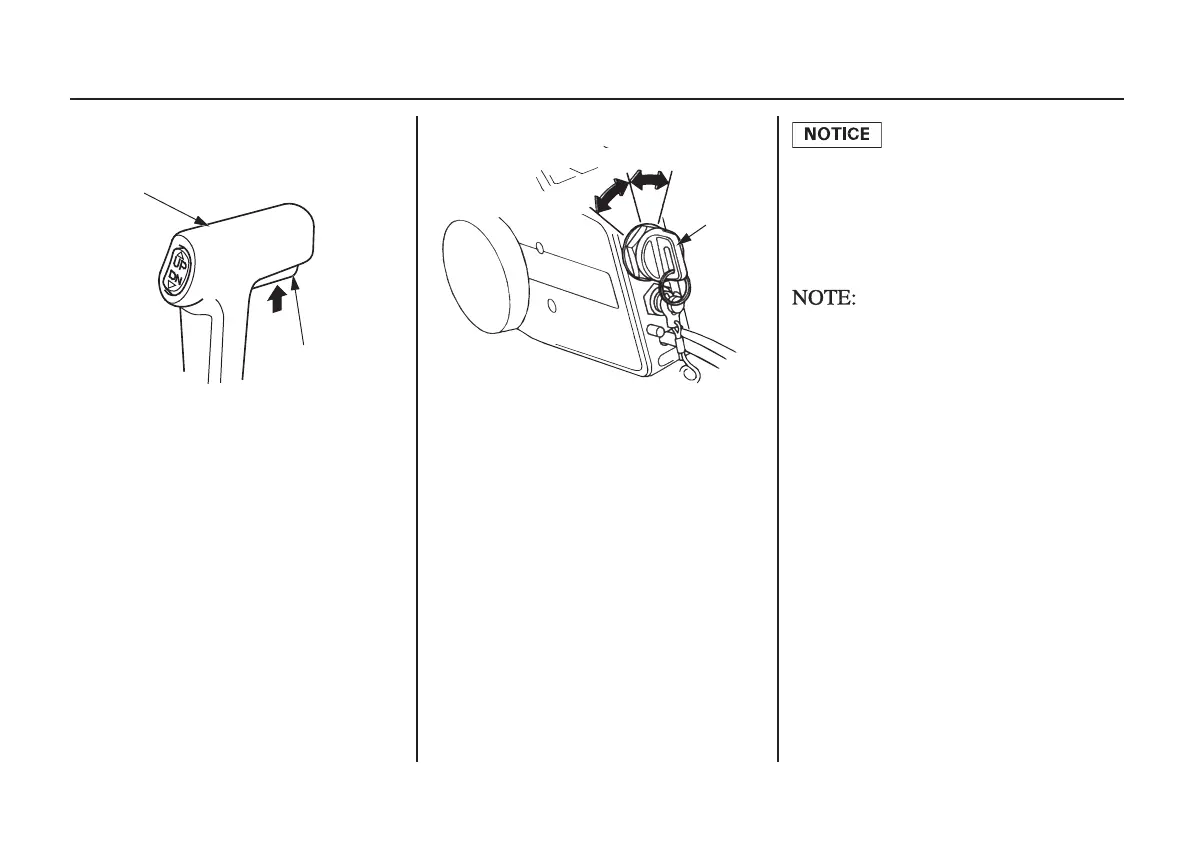

Neutral Release Lever
The neutral release lever is set on the
remote control lever to prevent an
accidental operation of the remote
control lever.
The remote control lever does not
operate unless it is moved while
pulling the neutral release lever up.
Engine Switch (Ignition Switch)
This remote control is equipped with
an automotive type ignition switch.
On the side-mount type (R1 type),
the engine switch locates on your
side near the remote control box.
Key positions:
START: to start the engine.
ON: to run the engine after
starting.
OFF: to stop the engine
(IGNITION OFF).
Do not leave the engine switch
(ignition switch) ON (key in ON
position) when the engine is not
running as the battery will
discharge.
The starter motor will not work
unless the remote control lever is in
the NEUTRAL position, and the clip
is in the emergency stop switch.
(
R
1
type
)
REMOTE CONTROL LEVER
NEUTRAL
RELEASE LEVER
(
R
1
type
)
OFF
ON
START
ENGINE
SWITCH
<<DQQMࡍ࡯ࠫ㧞㧜㧝㧟ᐕ㧝㧜᦬㧝ᣣޓἫᦐᣣޓඦᓟ㧞ᤨ㧟㧡ಽ

Honda BF40D Specifications

General

Displacement	808 cc
Full Throttle RPM Range	5, 000-6, 000 RPM
Horsepower	40 HP
Cooling System	Water Cooled
Starting System	Electric
Lubrication	Wet Sump
Trim Range	-4° to +16°
Tilt Range	72°
Steering	Remote
Gear Shift	F-N-R
Gear Ratio	2.08:1
Fuel Tank Capacity	External
Fuel Delivery	Programmed Fuel Injection
Exhaust	Through Propeller
Weight	205 lbs
Shaft Length	L type: 20 in, X type: 25 in
Alternator Output	12V
Engine Type	4-Stroke, SOHC, 3 Cylinder
Cylinder Configuration	Inline 3
