Outboard Motor Installation
1. Apply the silicone sealant
(Three Bond 1216 or equivalent) to
the outboard motor mounting
holes.
2. Set the outboard motor on the boat
and secure with the bolts, washers,
and nuts.
Standard torque:
15 – 20 N·m (1.5 – 2.0 kgf·m,
11 – 14 lbf·ft)
The standard torque is given just as a
guideline. Torque of the nut can be
different according to the material of
the boat. Consult with your outboard
motor dealer.
Install the outboard motor
securely. Loosely mounted
outboard motor can result in
accidental loss of the outboard
motor and damage and injury to
the equipment and personnel.
Before installing the outboard motor
on the boat, hang the outboard motor
with the hoist or equivalent devise by
attaching the lifting eye to the
outboard.
Use the hoist which allowable load is
250 kg (551 lbs) or above.

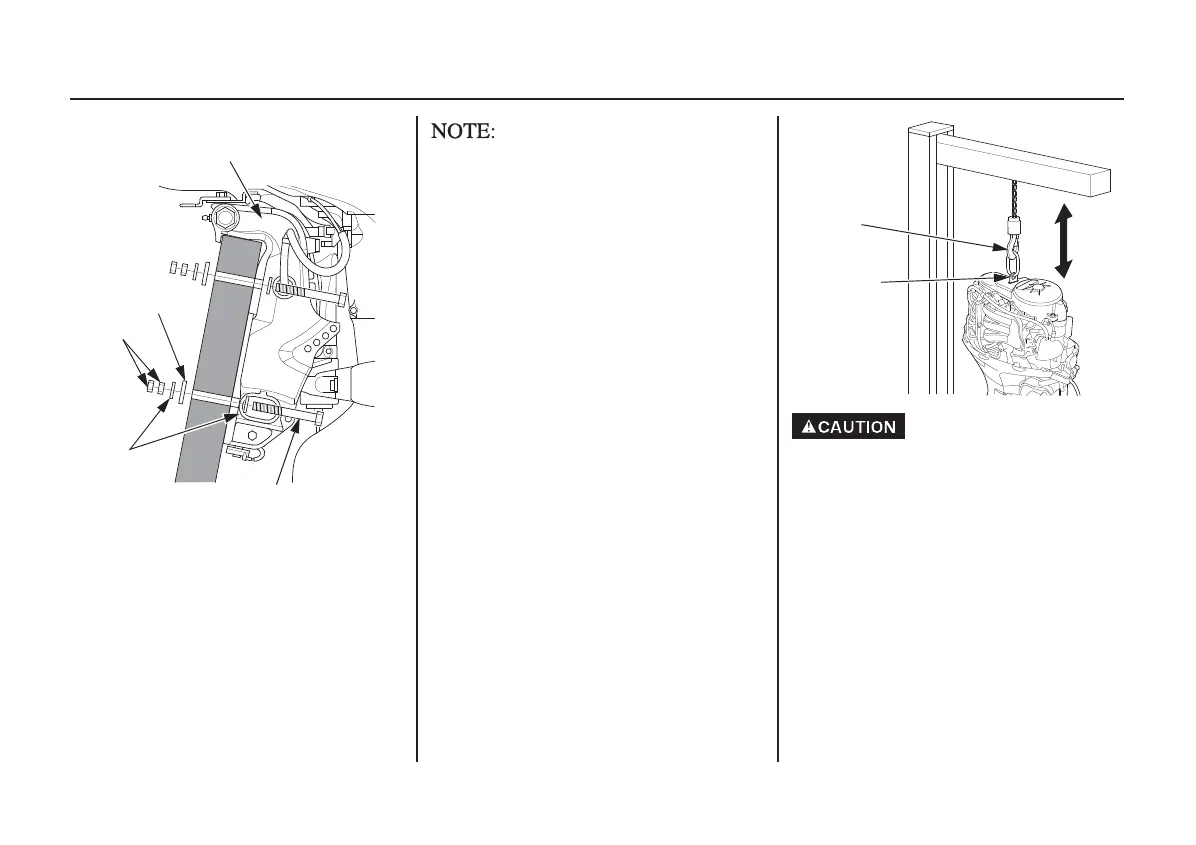

STERN BRACKET
WAS HER (4)
NUT (8)
WASHE R ( 8)
BOLT (12 × 100 mm) (4)
HOIST
HOOK
LIFTING
EYE
