Honda BF40D - Trimming the Outboard Motor

80
OPERATION
Trimming the Outboard Motor
The BF40D/50D T types are
equipped with the power trim/tilt
system which can adjust the outboard
motor angle (trim/tilt angle) while
cruising and mooring. The outboard
motor angle can also be adjusted
while cruising and accelerating to
obtain the maximum speed and
optimum driveability and fuel
economy.
Press either UP or DN (down) of the
power trim/tilt switch and tilt the
outboard motor to the best position in
compliance with the cruising
conditions.

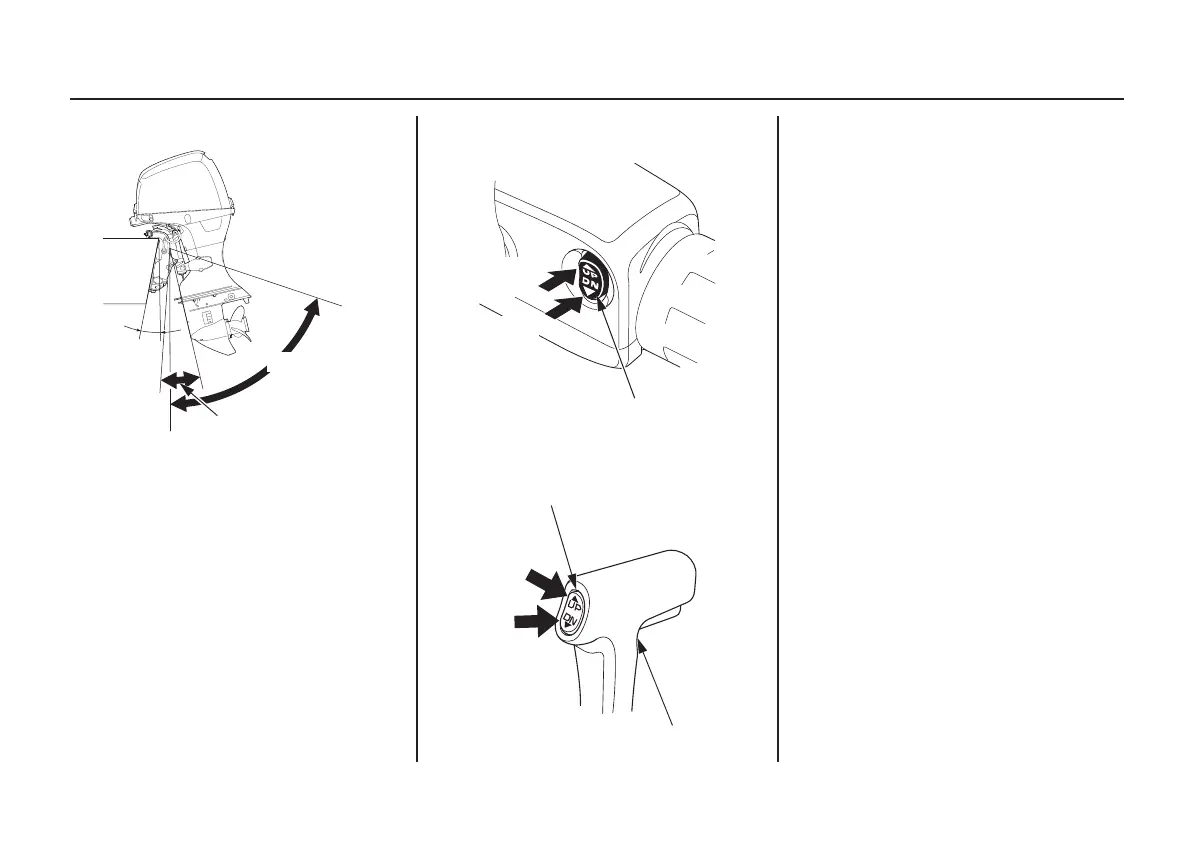

(when transom angle is 12°)
TRIM ANGLE
63°
12°
– 4°
12°
TILT ANGLE
0°
(VERTICAL LINE)
POWER TRIM/TILT SWITCH
(H type)
(R1 type)
REMOTE CONTROL LEVER
Press UP to
raise bow.
Press DN to
lower bow.
POWER TRIM/TILT SWITCH
Press UP to
raise bow.
Press DN to
lower bow.
