31
CONTROLS AND FEATURES (T type)
If the power trim/tilt switch will not
tilt the outboard motor, the outboard
motor can be manually tilted up or
down by opening the manual relief
valve. To tilt the outboard motor
manually, turn the manual relief
valve under the left stern bracket
no more than two and a half turns
counterclockwise using a
screwdriver.
After tilting the outboard motor, turn
the manual relief valve clockwise
securely.
Check that nobody is under the
outboard motor before opening the
manual relief valve. If the manual
relief valve is loosened (turned
counterclockwise) when the outboard
motor is tilted up, the outboard motor
will suddenly tilt down.
The manual relief valve must be
tightened securely before operating
the outboard motor or the outboard
motor could tilt up when operating in
reverse.

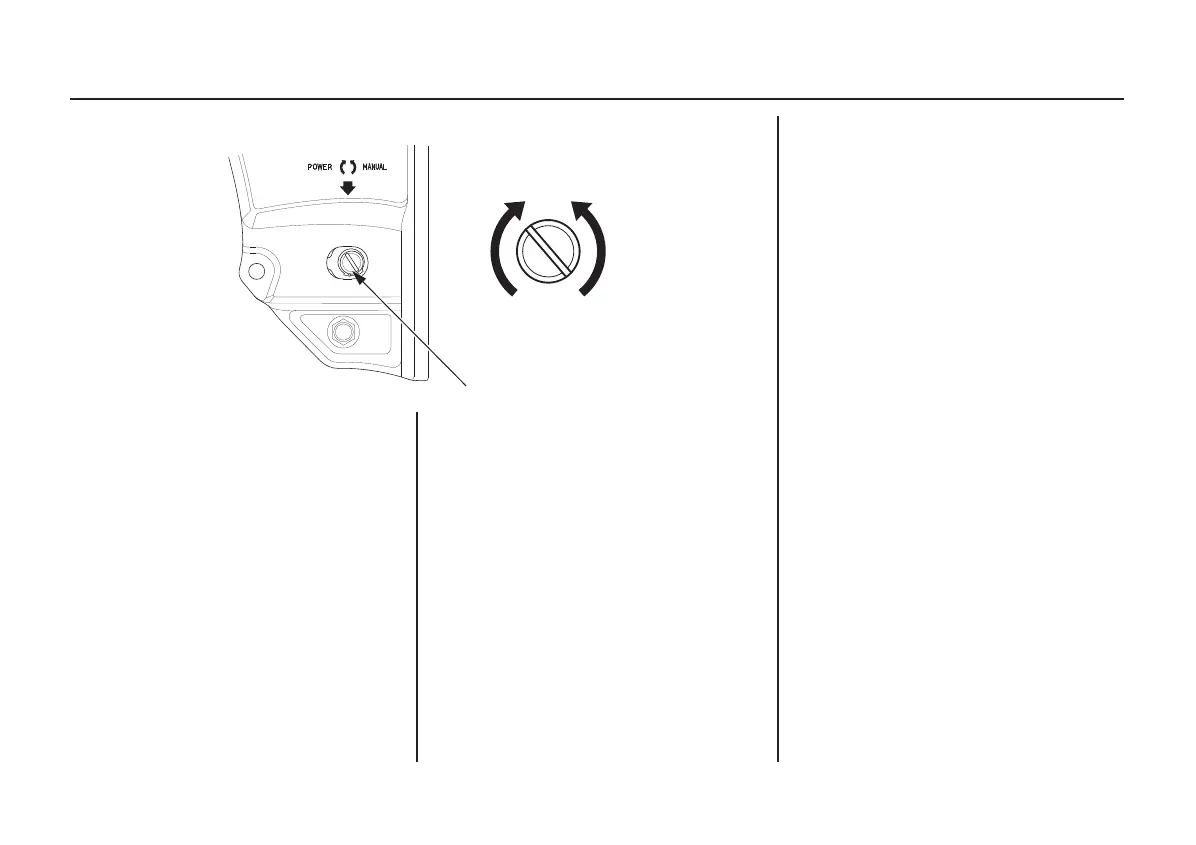

Manual Relief Valve
MANUAL RELIEF VALVE
POWER
(To fix)
MANUAL
(To release)
