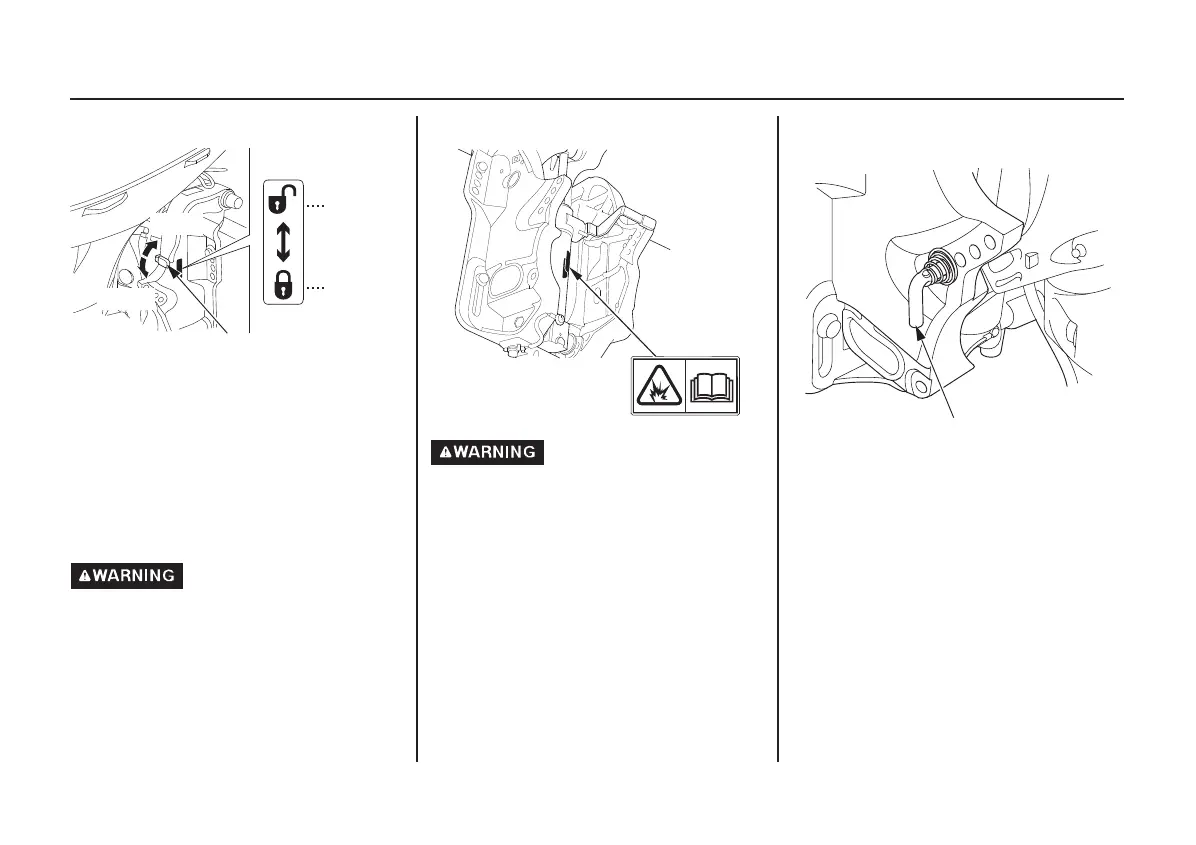

CONTROLS AND FEATURES (G type)
Tilt Lever
Use the tilt lever to temporarily raise
the outboard motor when the boat is
sailing in the shallows, or mooring or
anchoring in the shallows.
Raising the tilt lever unlocks the
outboard motor and the outboard
motor can be tilted. Lowering the tilt
lever locks the outboard motor.
Be sure to lower the tilt lever
and lock the outboard motor
before sailing. The outboard
motor could rise when sailing
in the reverse gear, resulting in
an accidental injury to the
passenger(s).
Do not disassemble the gas
assisted damper assembly as it
is filled with the high pressure
gas.
Transom Angle Adjusting Rod
Use the transom angle adjusting rod
to adjust the outboard motor angle
properly.
The outboard motor angle can be
adjusted to the five angles by
changing the adjusting rod position.
LOCK
FREE
FREE
LOCK
TILT LEVER
TRANSOM ANGLE ADJUSTING ROD
