PRE-OPERATION CHECKS
Steering Handle Friction
(H type)
Check whether the handle moves
smoothly.
For smooth steering, adjust the
steering friction adjuster so that a
slight drag is felt when turning.
Do not apply grease or oil on the
friction plate. Grease or oil will
reduce the friction of the adjuster.
Remote Control Lever Friction
(R type)
Check whether the remote control
lever moves smoothly.
Friction of the control lever can be
adjusted by turning the control lever
friction adjuster right or left.
Fuel Filter
Fuel filter is located near by the
engine cover fixing lever of the boat
side. Check the fuel filter. When
water accumulated in the fuel filter,
the red ring starts to float. Clean it or
consult with your outboard motor
dealer for clean (see page 120).

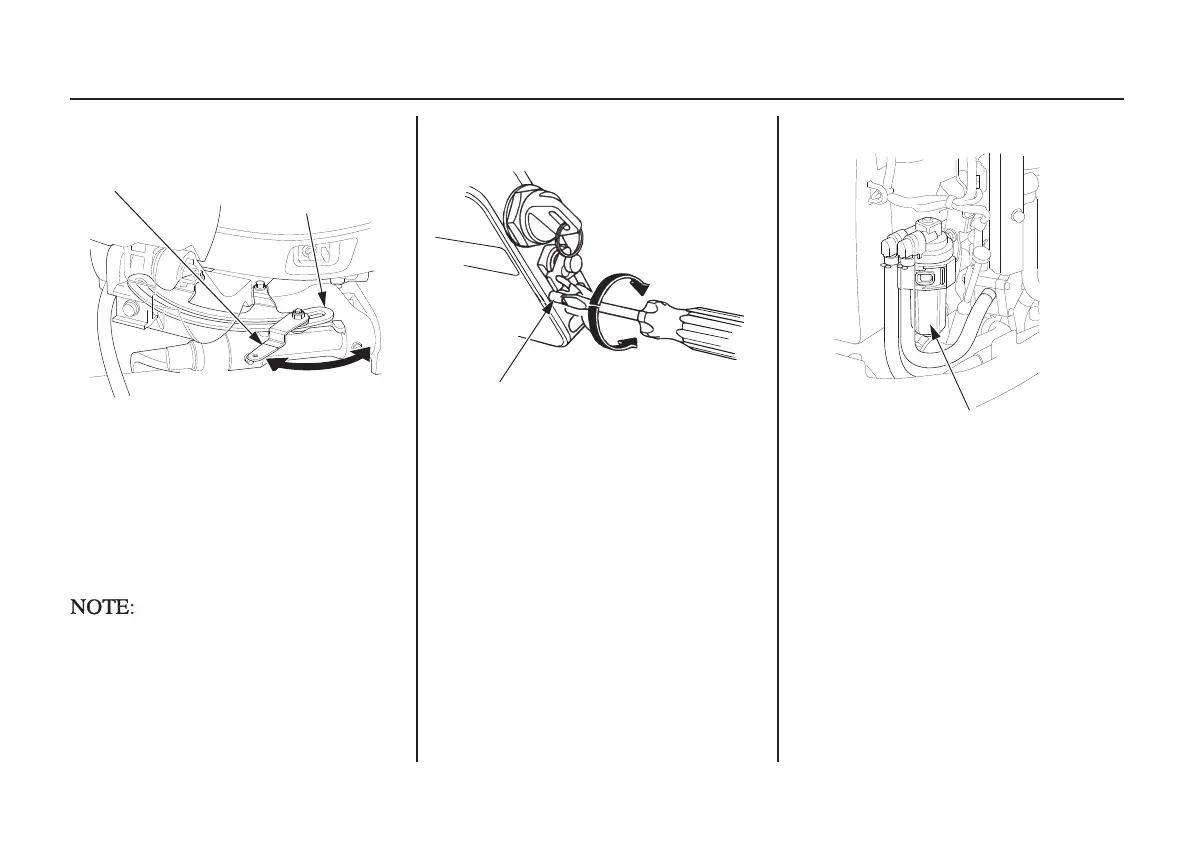

FRICTION PLATE
To d ec reas e
friction
(FREE)
STEERING FRICTION ADJUSTER
To increase
friction
(LOCK)
CONTROL
LEVER
FRICTION
SCREW
To i nc reas e
friction
To d ecre ase
friction
FUEL FILTER
