CONTROLS AND FEATURES (T type)
Power Trim/Tilt Switch
Power Trim
Press the power trim/tilt switch on the
remote control lever to adjust the
outboard motor trim angle of – 4° to
12° to maintain proper boat trim. The
power trim/tilt switch can be
operated while the boat is under way
or while stopped.
By using the power trim/tilt switch
the operator can change the trim
angle of the outboard motor to
achieve maximum boat acceleration,
speed, stability and maintain
optimum fuel consumption.
The outboard motor trim angle of
– 4° to 12° is the angle when the
outboard motor is installed on the
boat at 12°.
Excessive trim/tilt angle during
operation can cause the propeller
to raise out of the water and cause
propeller ventilation and engine
over-revving. Excessive trim/tilt
angle can also damage the water
pump.
(

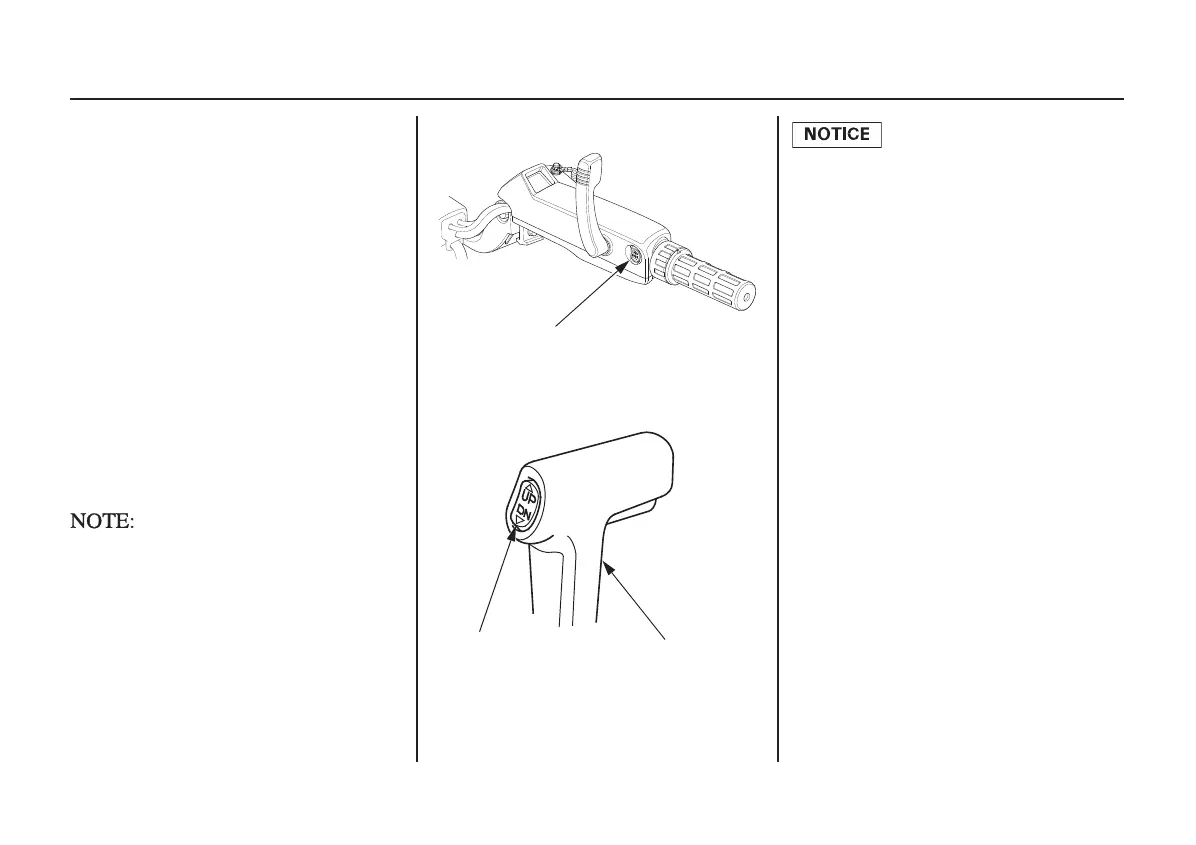

H type
)
POWER TRIM/TILT SWITCH
(R1 type)
REMOTE CONTROL
LEVER
POWER
TRIM/TILT
SWITCH
<<DQQMࡍ࡯ࠫ㧞㧜㧝㧟ᐕ㧝㧜᦬㧝ᣣޓἫᦐᣣޓඦᓟ㧞ᤨ㧟㧡ಽ

Honda BF40D Specifications

General

Displacement	808 cc
Full Throttle RPM Range	5, 000-6, 000 RPM
Horsepower	40 HP
Cooling System	Water Cooled
Starting System	Electric
Lubrication	Wet Sump
Trim Range	-4° to +16°
Tilt Range	72°
Steering	Remote
Gear Shift	F-N-R
Gear Ratio	2.08:1
Fuel Tank Capacity	External
Fuel Delivery	Programmed Fuel Injection
Exhaust	Through Propeller
Weight	205 lbs
Shaft Length	L type: 20 in, X type: 25 in
Alternator Output	12V
Engine Type	4-Stroke, SOHC, 3 Cylinder
Cylinder Configuration	Inline 3
