56
PRE-OPERATION CHECKS

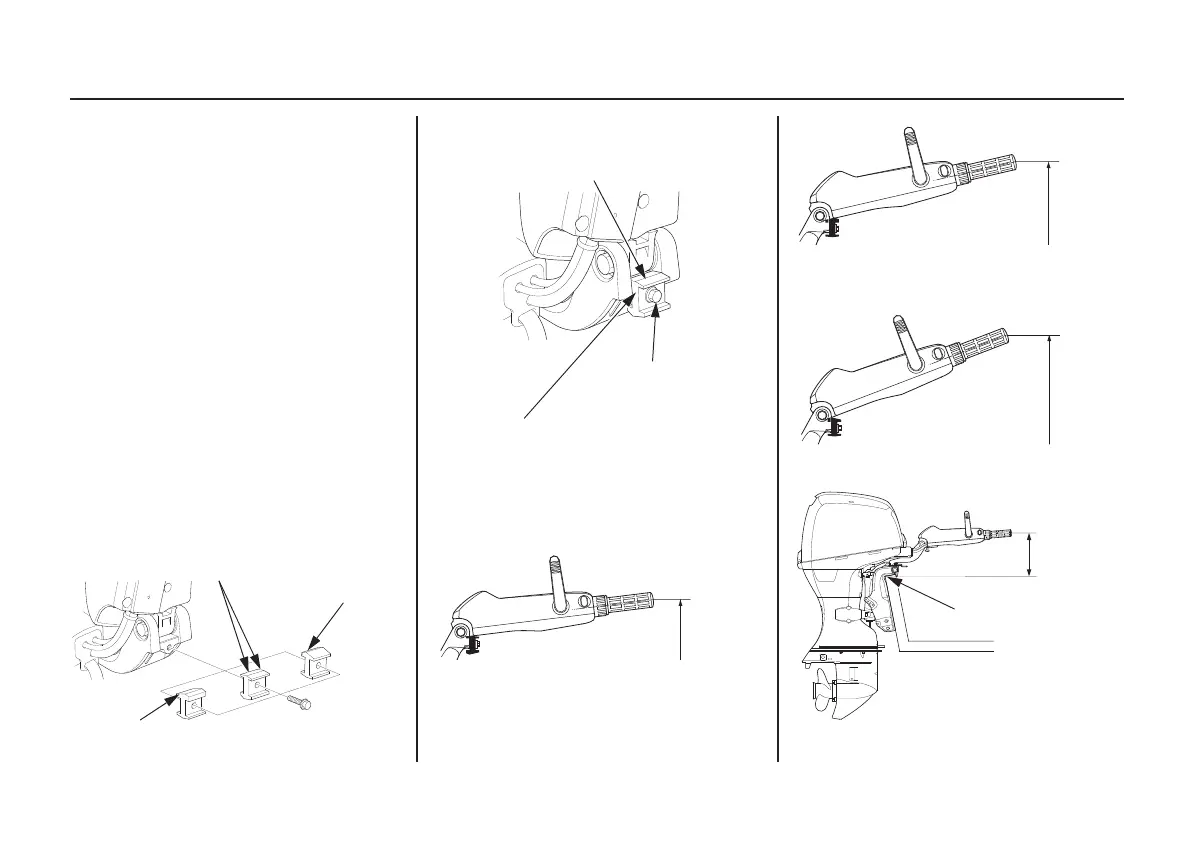

Tiller Handle Height/Angle
Adjustment (H type)
The tiller handle height and angle can
be adjusted to three positions by
changing the installation direction of
the height adjustment block. Select a
suitable height and angle for the
operator and secure the block.
<Height/Angle Adjustment
Procedure>
1. Raise the tiller handle and remove
the 8 × 28 mm flange bolt and the
height adjustment block.
2. Pull down the tiller handle.
Determine the height adjustment
block installation direction and
secure the block with the 8 ×
28 mm flange bolt.
HANDLE ANGLE: 7°
HANDLE ANGLE: 13°
HANDLE ANGLE:
21°
Install the height adjustment block
so that the selected angle of the tiller
handle is in this position.
HEIGHT ADJUSTMENT
BLOCK
8
× 28 mm
FLANGE BOLT
HANDLE ANGLE: 7°
275 mm
(10.8 in)
HANDLE ANGLE: 13°
336 mm
(13.2 in)
399 mm
(15.7 in)
HEIGHT
HANDLE ANGLE: 21°
Reference point
