45
INSTALLATION

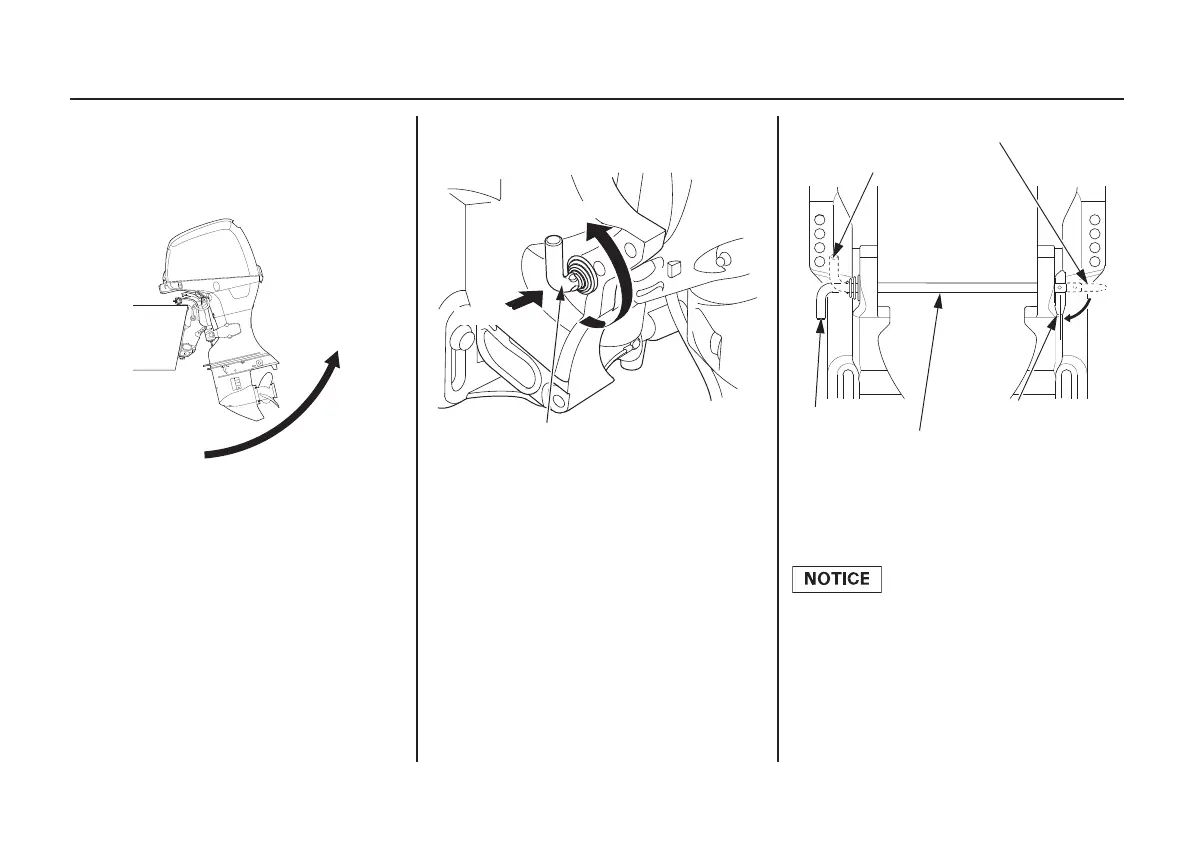

<Outboard Motor Angle
Adjustment>
(G type)
There are five adjusting stages.
1. Tilt the outboard motor to the
designated tilt angle.
2. Push in the adjusting rod, twist
upwards to the unlocked position
and pull out to remove.
3. Inserting the adjusting rod in the
proper hole, twist it down to lock.
After locking, pull the adjusting
rod and be sure it is not withdrawn.
To prevent damage to the outboard
motor or boat, make sure the
adjusting rod is locked.
BENT END UP
PUSH
TRANSOM ANGLE ADJUSTING ROD
UNLOCKED POSITION
TO CHANGE
ADJUSTING ROD
LOCKED POSITION
TO LOCK
