10-4
dummyheaddummyhead
STARTING SYSTEM

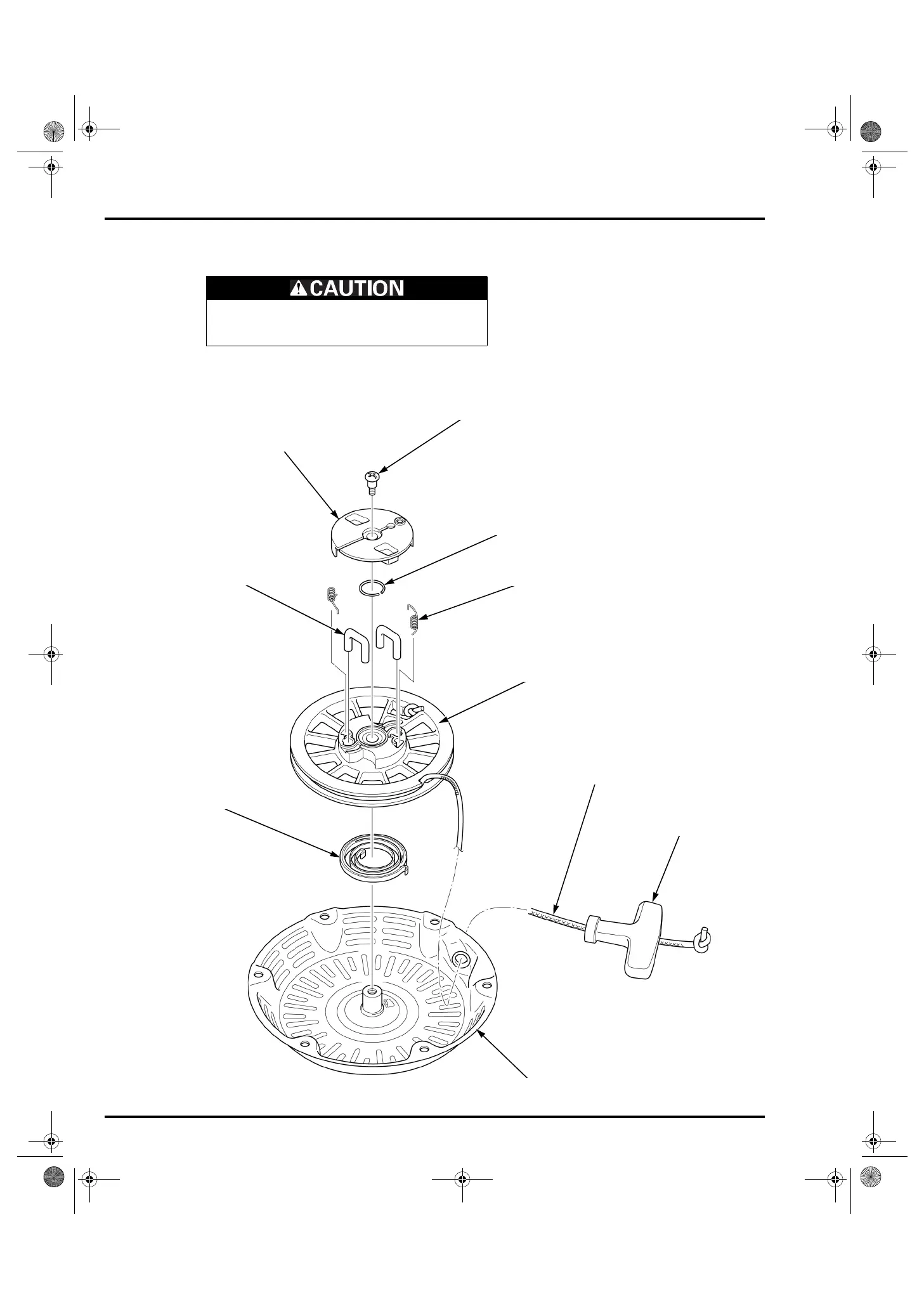

RECOIL STARTER Assy.
DISASSEMBLY/ASSEMBLY
DISASSEMBLY
Remove the recoil starter Assy. (page 10-3).
• Wear gloves and eye protection.
• During disassembly/assembly, take care not to
allow the spring to come out.
RATCHET GUIDE
RECOIL STARTER SETTING SCREW
FRICTION SPRING
RETURN SPRING (2)
RECOIL STARTER REEL
STARTER GRIP
RECOIL STARTER SPRING
RATCHET (2)
RECOIL STARTER CASE
RECOIL STARTER ROPE
62Z7B000.book 4 ページ ２０１２年９月２７日 木曜日 午前１０時２１分
