CRANKCASE
GX390H1 COUNTERSHAFT/P.T.O.
SHAFT BEARING REPLACEMENT
(CRANKCASE COVER SIDE)
COUNTERSHAFT BEARING (6202)
Remove the crankcase cover (page 14-4).

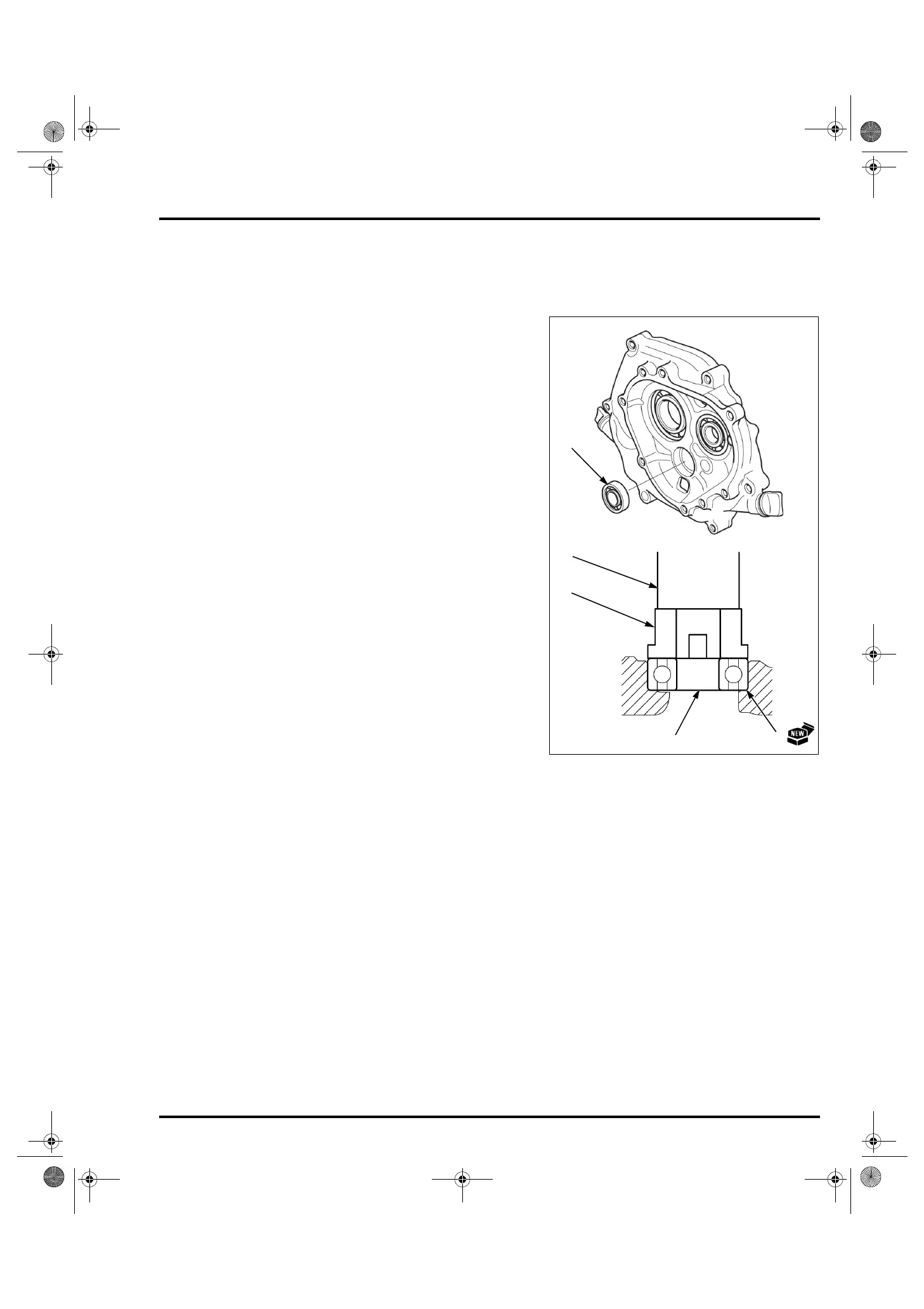

Drive out the radial ball bearing [1] using the special
tools.
Drive a new bearing [2] until it is fully seated on the end
using the special tools.
TOOLS:
Attachment, 32 x 35 mm [3] 07746-0010100
Pilot, 15 mm [4] 07746-0040300
Driver handle [5] 07749-0010000
