10-8
dummyheaddummyhead
STARTING SYSTEM
RECOIL STARTER INSPECTION

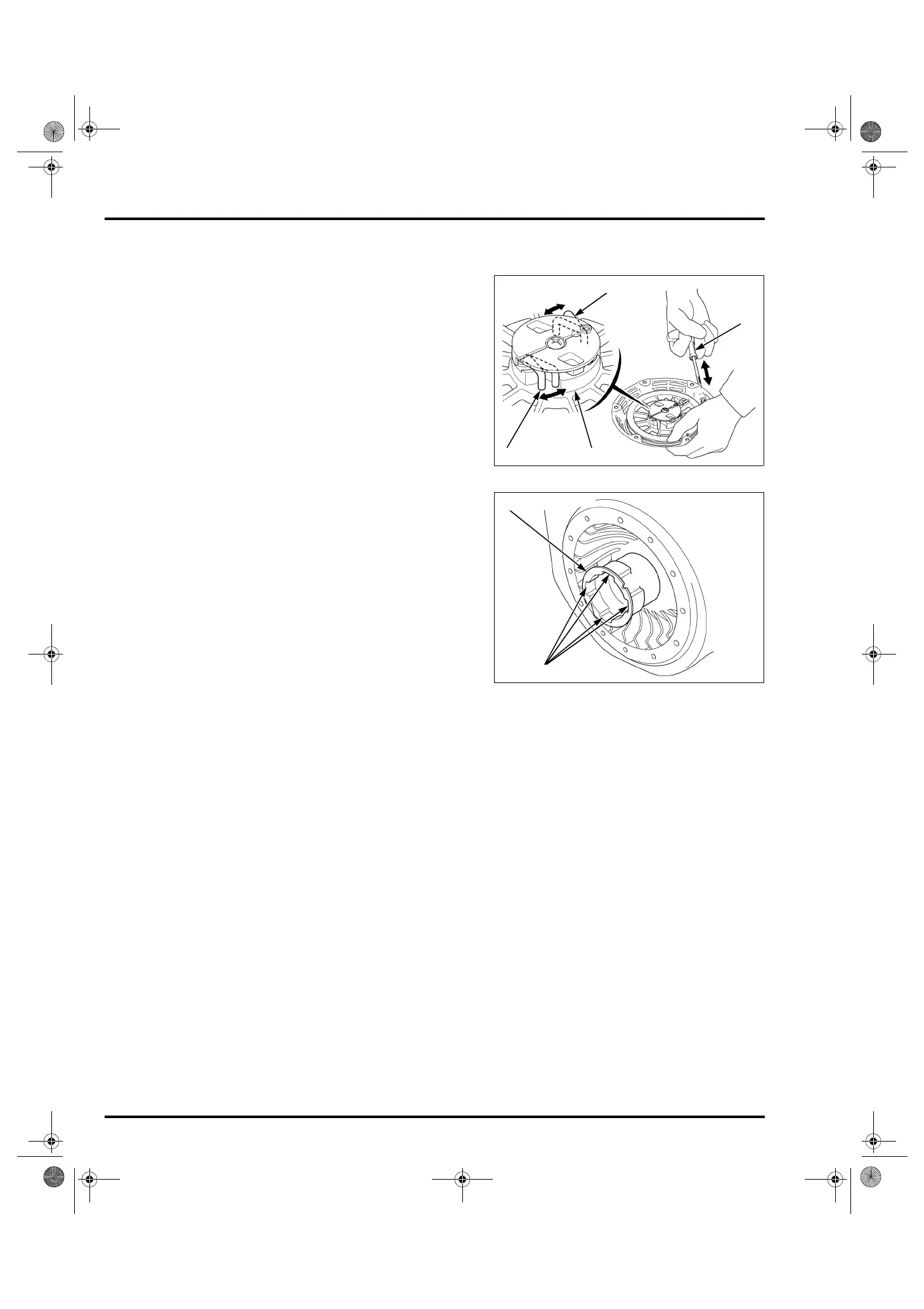

RECOIL STARTER OPERATION
Remove the recoil starter Assy. (page 10-3).
Pull the starter grip [1] several times to inspect that the
ratchets [2] are operated properly (the ratchet ends
come out from the ratchet guide [3]).
STARTER PULLEY
Remove the recoil starter Assy. (page 10-3).
Inspect the square dogs [1] of the starter pulley [2] for
deformation.
62Z7B000.book 8 ページ ２０１２年９月２７日 木曜日 午前１０時２１分
