8-7
dummyheaddummyhead
CHARGING SYSTEM

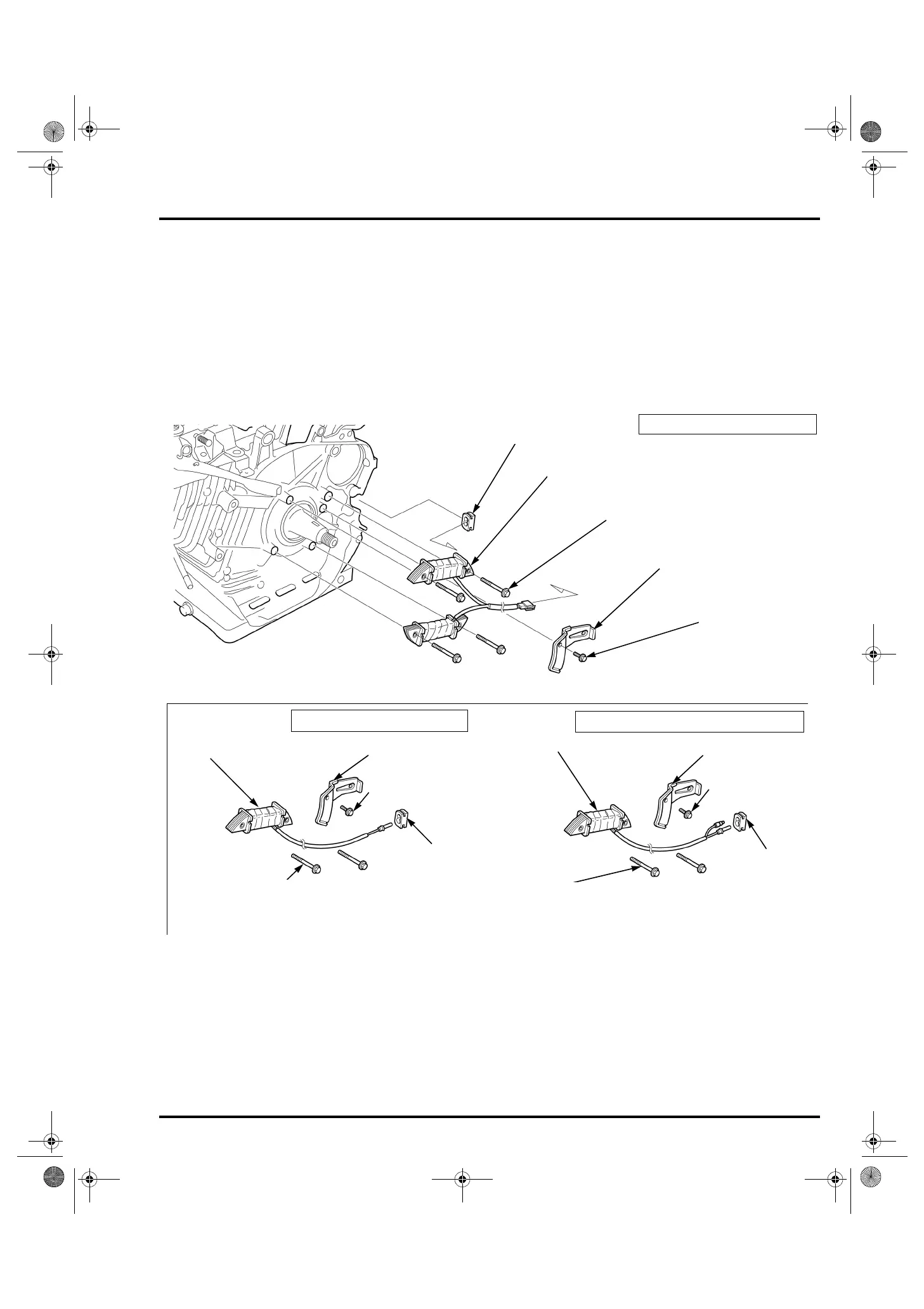

CHARGE/LAMP COIL (IF EQUIPPED)
REMOVAL/INSTALLATION
Remove the following parts:
– Fan cover (page 5-2).
– Ignition coil (page 9-4).
– Remove the flywheel (page 8-5).
Remove the coil connector or connectors.
Installation is in the reverse of removal.
Install the cord clamp. (page 2-10)
Adjust the maximum speed (page 7-8)
BOLT (6 x 40 mm) (4)
CORD GROMMET
CORD CLAMP
1 A/3 A
CHARGE COIL
BOLT (6 x 12 mm)
CORD
GROMMET
CORD CLAMP
12 V-50 W LAMP COIL TYPE:
1 A/3 A CHARGE COIL TYPE:
12 V-15 W/12 V-25 W LAMP COIL
BOLT (6 x 12 mm)
CORD CLAMP
12 V-15 W/12 V-25 W LAMP COIL TYPE:
CORD
GROMMET
1 A CHARGE COIL TYPE: BOLT (6 x 35 mm) (2)
BOLT (6 x 12 mm)
3 A CHARGE COIL TYPE: BOLT (6 x 40 mm) (2)
12 V-15 W LAMP COIL TYPE: BOLT (6 x 32 mm) (2)
12 V-25 W LAMP COIL TYPE: BOLT (6 x 40 mm) (2)
12 V-50 W LAMP COIL
