11-4
dummyheaddummyhead
OTHER ELECTRICAL

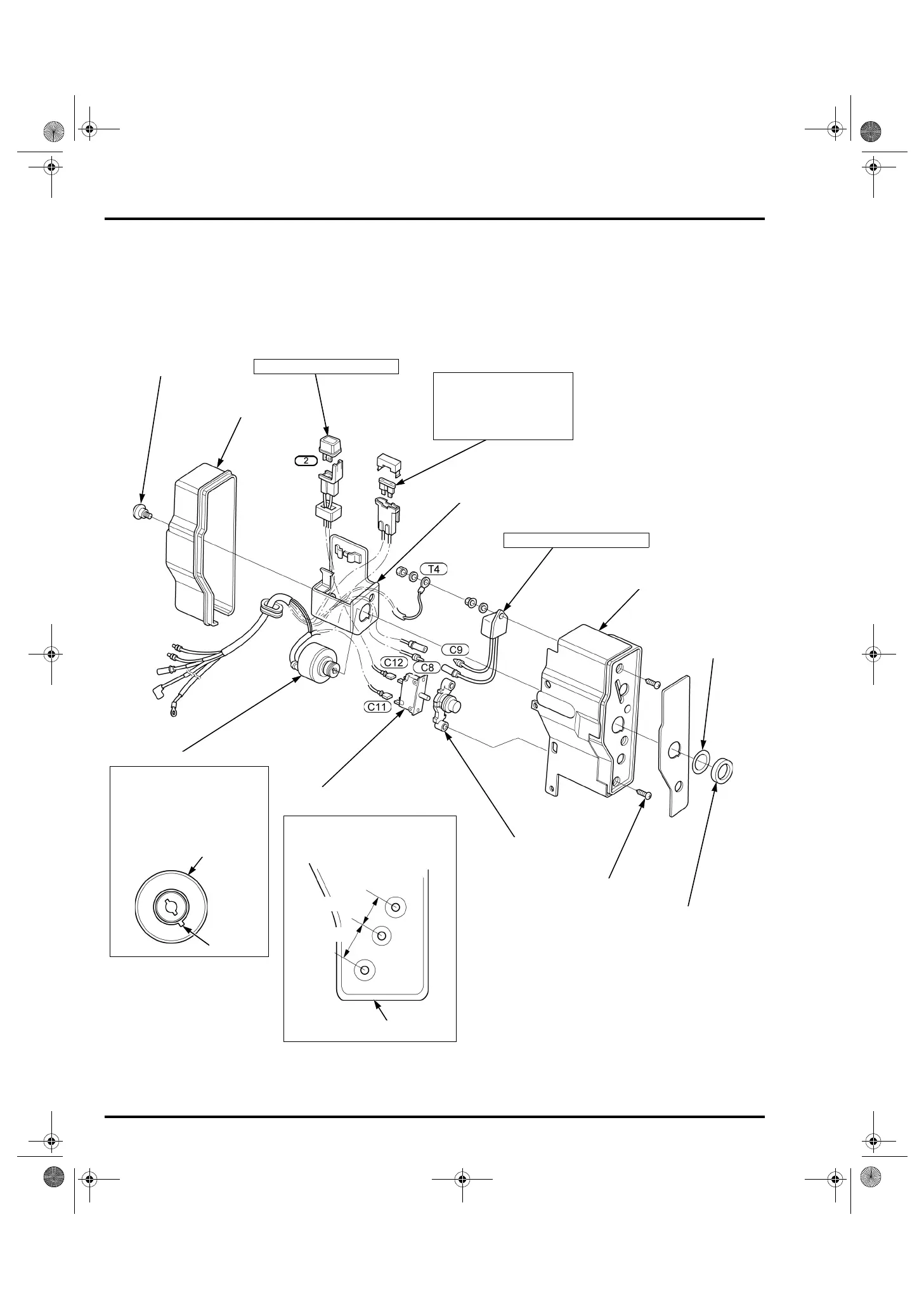

CONTROL BOX DISASSEMBLY/
ASSEMBLY
Remove the control box (page 11-3).
INSPECTION: (page 11-7)
INSTALLATION:
Note the installation direction.
INSPECTION: (page 11-6)
INSTALLATION:
Align the tab [1] with the cutout
in the case mounting bracket
and the control panel.
COMBINATION
SWITCH NUT
SILICON RECTIFIER
SPECIAL SCREW
(6 x 12 mm)
CONTROL BOX CASE
MAIN FUSE
CASE MOUNTING BRACKET
OIL ALERT UNIT
CONTROL PANEL
COMBINATION
SWITCH WASHER
SCREW (3 x 12 mm) (2)
PROTECTOR LENS
(If equipped)
CIRCUIT PROTECTOR
(If equipped)
COMBINATION SWITCH
[1]
CONTROL PANEL
INSPECTION: (page 11-6)
INSPECTION: (page 11-7)
GX270H:
QBE1, QXE9: 5 A
VKK: 15 A
GX390H1: 5 A
INSPECTION: (page 11-5)
COMBINATION SWITCH
SHORT
LONG
