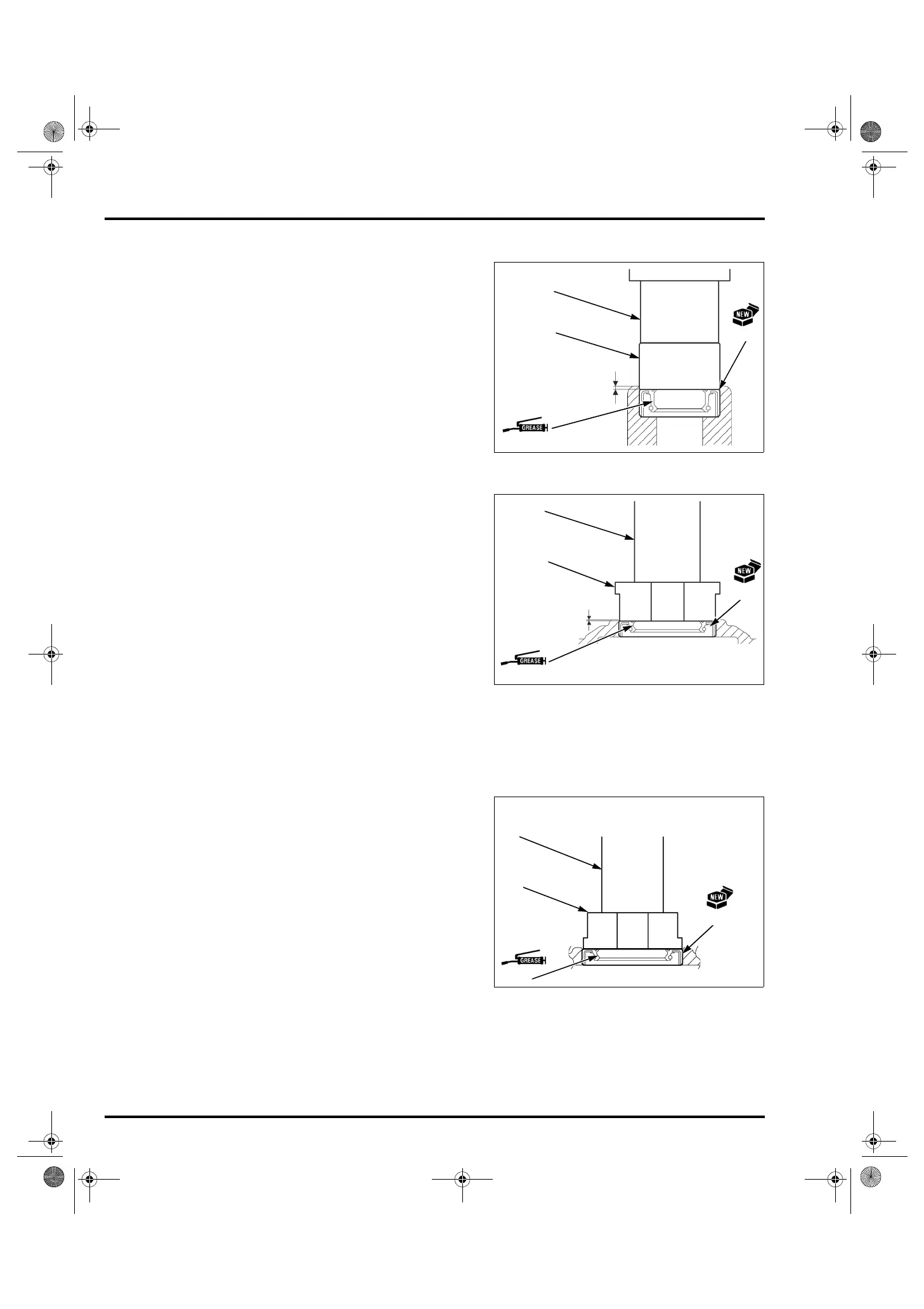

CRANKCASE
GOVERNOR ARM SHAFT OIL SEAL (8
x 14 x 5 mm)
Remove the oil seal from the cylinder barrel.
Drive a new oil seal [1] in the position as shown using
the special tools.
Apply grease to the lip of a oil seal.
CRANKSHAFT OIL SEAL (35 x 52 x 8
mm)
Remove the oil seal from the cylinder barrel.
Drive a new oil seal [1] in the position as shown using
the special tools.
Apply grease to the lip of a oil seal.
GX270H CRANKSHAFT/P.T.O.SHAFT
OIL SEAL REPLACEMENT (1/2
REDUCTION CLUTCH TYPE)
P.T.O.SHAFT OIL SEAL (30 x 50 x 7
mm)
Remove the oil seal from the reduction cover.
Drive a new oil seal [1] in the position as shown using
the special tools.
Apply grease to the lip of a oil seal.
TOOLS:
Pilot, 14 mm [2] 07746-0041200
Driver handle [3] 07749-0010000
0 – 0.5 mm
(0 – 0.02 in)
[3]
(Lips)
[2]
[1]
TOOLS:
Attachment, 52 x 55 mm [2] 07746-0010400
Driver handle [3] 07749-0010000
[2]
2.0 mm (0.08 in)
[3]
[1]
(Lips)
TOOLS:
Attachment, 45 x 50 mm [2] 07946-6920100
Driver handle [3] 07749-0010000
[3]
[2]
[1]
(Lips)
