CRANKCASE
GX390H1 COUNTERSHAFT/P.T.O.
SHAFT BEARING/OIL SEAL
REPLACEMENT (1/6 REDUCTION
GEAR TYPE)
COUNTERSHAFT BEARING (6202)
(6302)

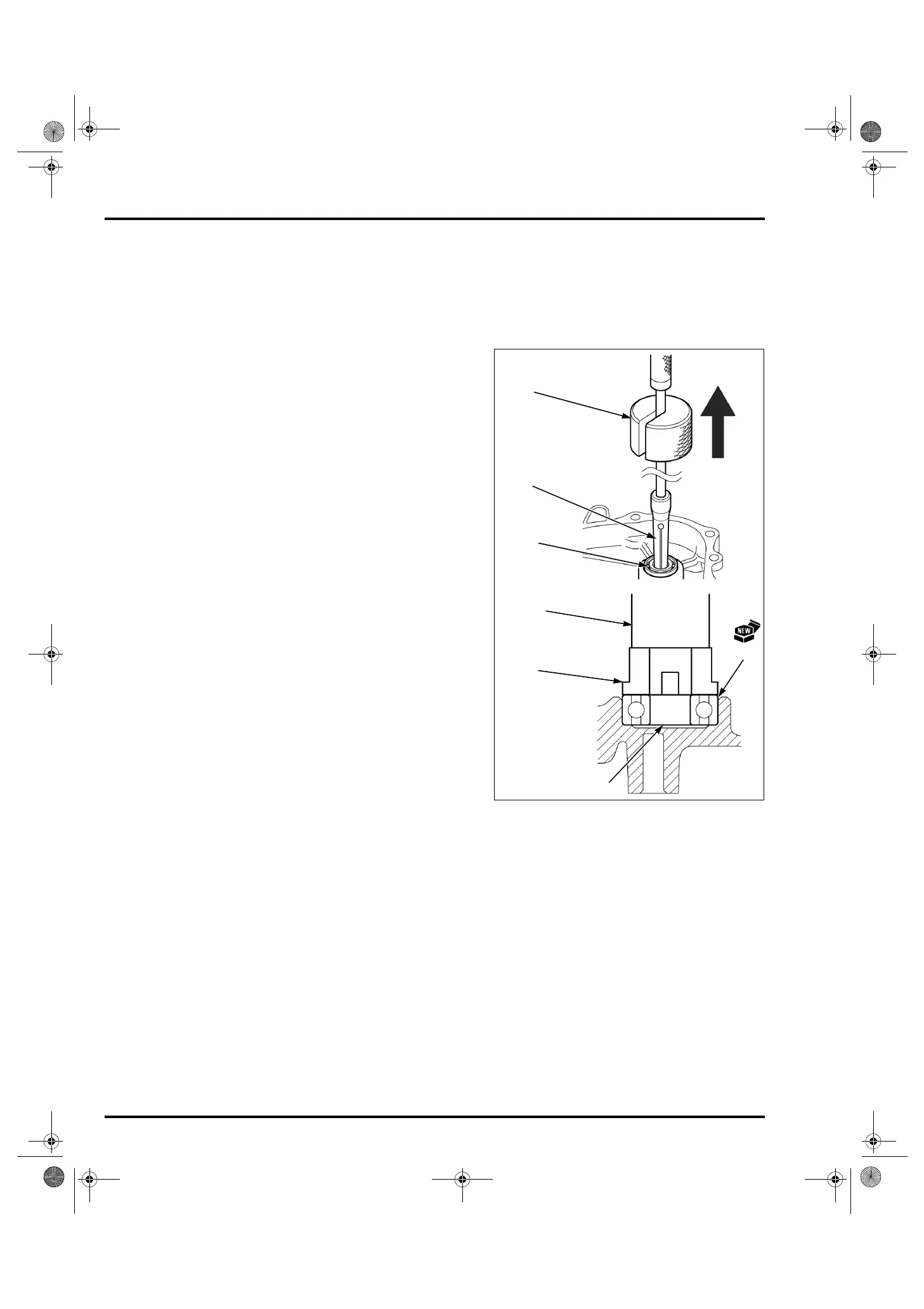

Pull out the radial ball bearing [1] using the special
tools.
Drive a new bearing [4] until it is fully seated on the end
using the special tools.
TOOLS:
Bearing remover shaft set,
15 mm [2] 07936-KC10500
Sliding hammer weight [3] 07741-0010201
TOOLS:
Attachment, 32 x 35 mm [5] 07746-0010100
Pilot, 15 mm [6] 07746-0040300
Driver handle [7] 07749-0010000
