CHARGING SYSTEM

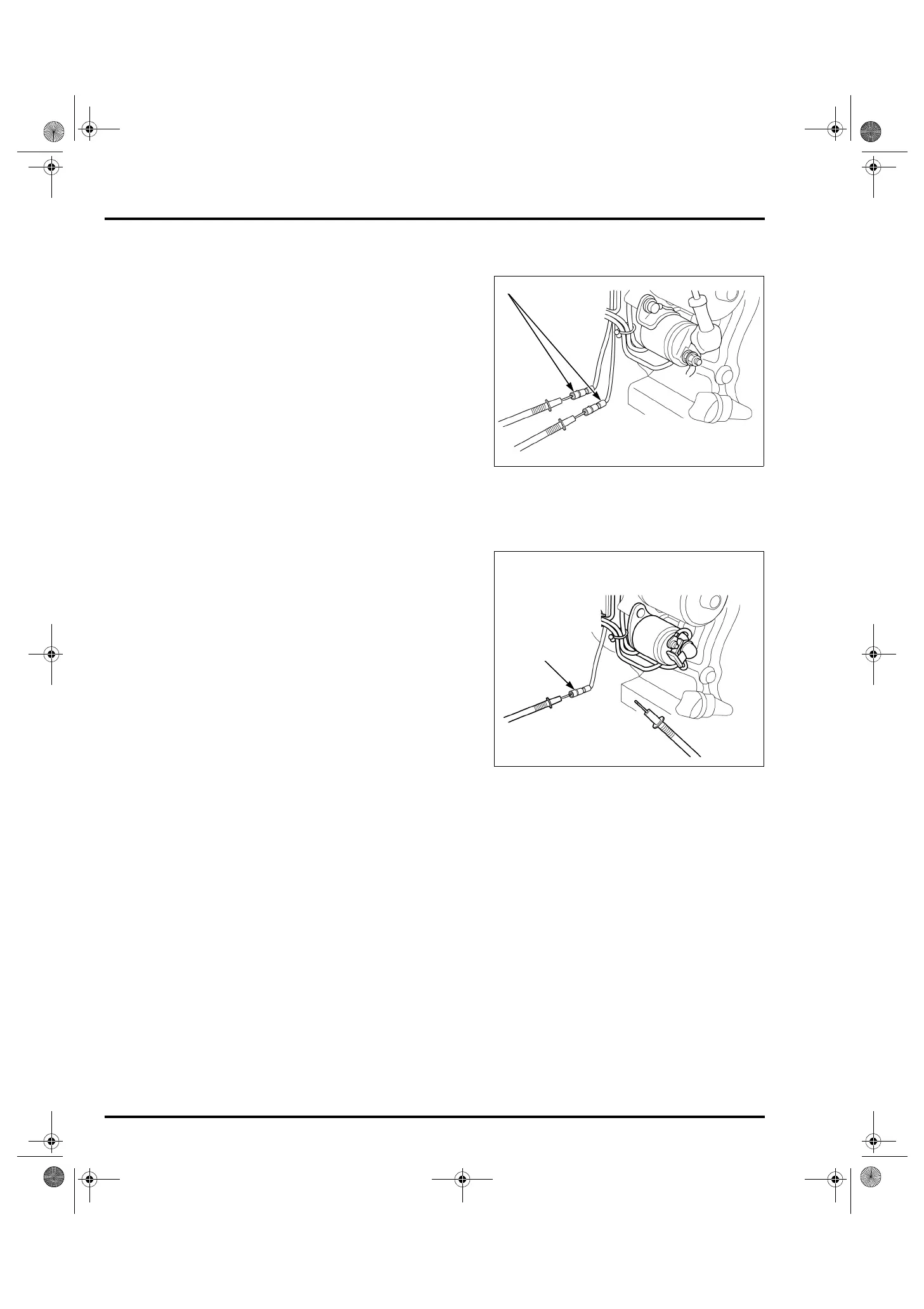

CHARGE/LAMP COIL INSPECTION
12 V-15 W/12 V-25 W LAMP COIL TYPE
Disconnect the lamp coil connectors [1].
Measure the resistance between the terminals of the
charge/lamp coil.
Check for continuity between each terminal and engine
ground.
There should be no continuity.
• If the measured resistance is not within the range
specification or if any wire has continuity to engine
ground, replace the lamp coil (page 8-7).
• If the resistance is good and the flywheel is ok,
replace the lamp coil and retest.
1 A/3 A CHARGE COIL/12 V-50 W
LAMP COIL TYPE
Disconnect the charge/lamp coil connector [1].
Check for continuity between terminal and engine
ground.
There should be no continuity.
If the resistance is good and the flywheel is ok, replace
the charge/lamp coil and retest.
Resistance:
lamp coil 12 V-15 W: 1.04 – 1.56 Ω
lamp coil 12 V-25 W: 0.30 – 0.46 Ω
Resistance:
charge coil 1 A: 3.00 – 4.00 Ω
charge coil 3 A: 0.62 – 0.93 Ω
Lamp coil 12 V-50 W: 0.29 – 0.44 Ω
