Honeywell Xenon XP 1952g User Manual

194 Xenon XP User Guide
PDF417 Message Length

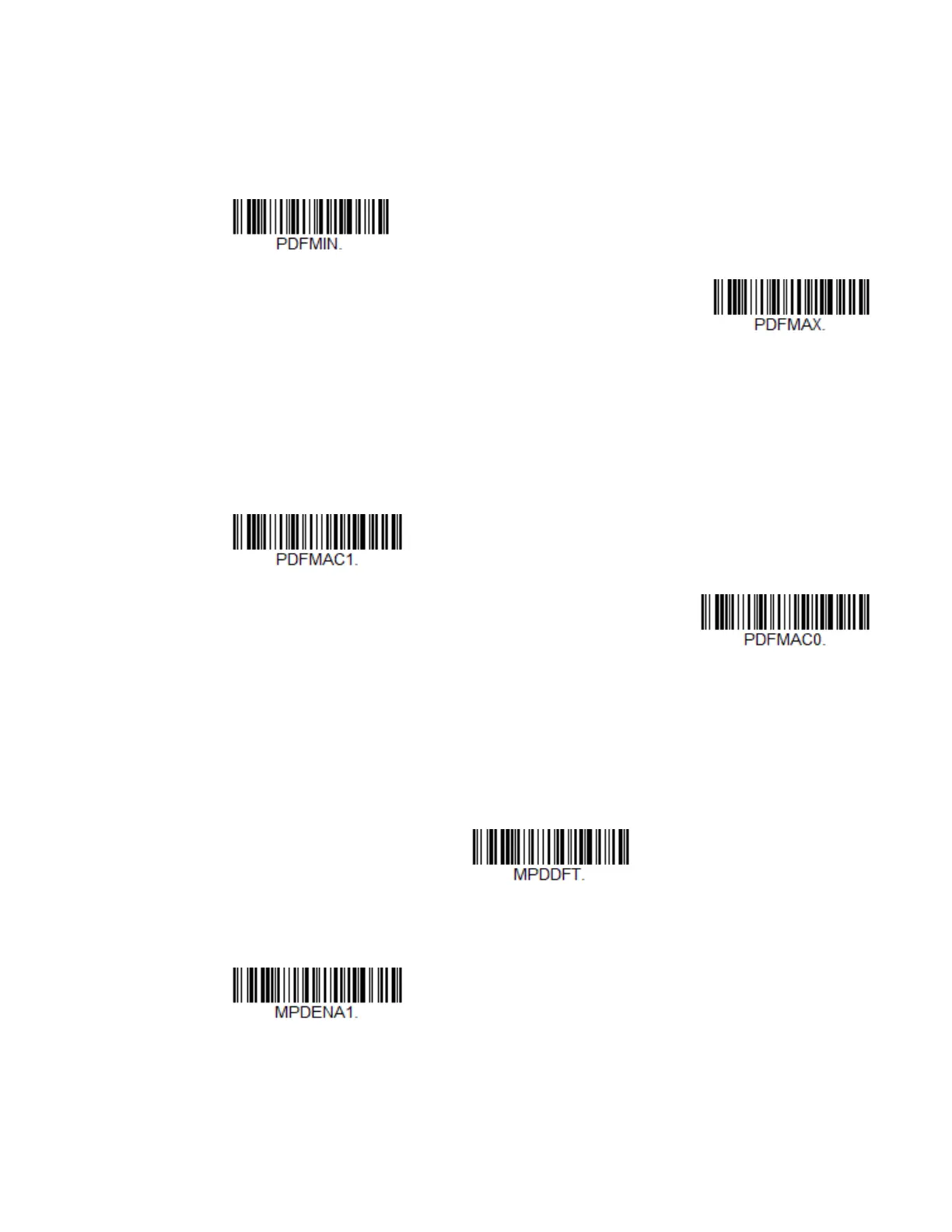

Scan the barcodes below to change the message length. Refer to Message Length
Description (page 152) for additional information. Minimum and Maximum
lengths = 1-2750. Minimum Default = 1, Maximum Default = 2750.
MacroPDF417
MacroPDF417 is an implementation of PDF417 capable of encoding very large
amounts of data into multiple PDF417 barcodes. When this selection is enabled,
these multiple barcodes are assembled into a single data string. Default = On.
MicroPDF417
< Default All MicroPDF417 Settings >
MicroPDF417 On/Off
Minimum Message Length
Maximum Message Length
* On
Off
On

Honeywell Xenon XP 1952g Specifications

General

Type	Handheld bar code reader
Sensor type	-
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	Code 128, Code 39, U.P.C.
Optical sensor resolution (W x H)	1240 x 800 pixels
2D (matrix & stacked) barcodes supported	Data Matrix, PDF417, QR Code
Battery life	14 h
Charging time	4.5 h
Battery capacity	2400 mAh
Power source type	Battery
Number of reads per charge	50000
Wireless range	10 m
Bluetooth version	4.2
Operating frequency	2400 MHz
Standard interfaces	Bluetooth, USB
Connectivity technology	Wired & Wireless
Product color	Black
LED indicators	Yes
Built-in display	No
Protection features	Bump resistant
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	99 mm
Width	64 mm
Height	165 mm
Weight	220 g
