Honeywell Xenon XP 1952g User Manual

Xenon XP User Guide 55
Error Indicators

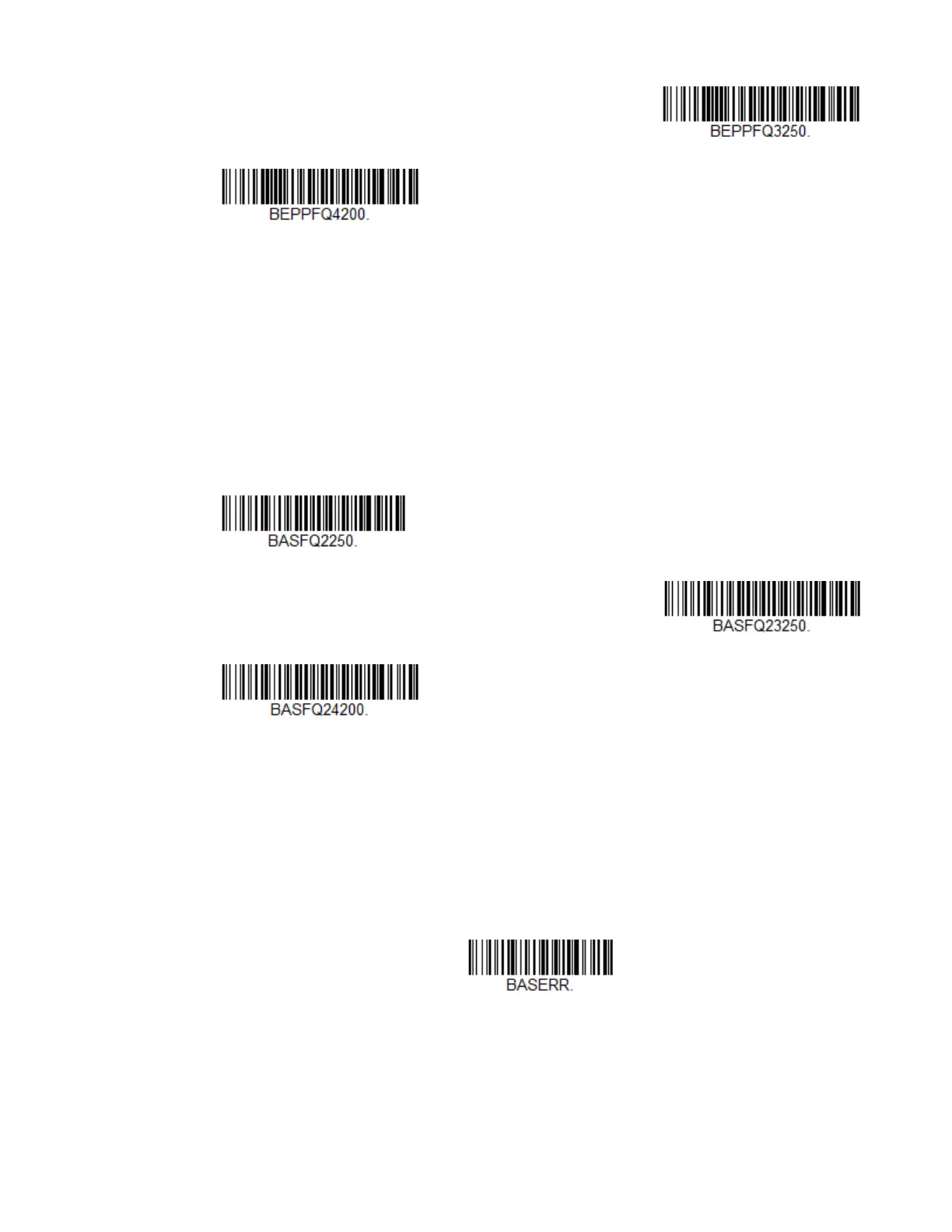

Beeper Pitch - Base Error
The base can be configured to beep at a particular pitch when an error occurs,
such as transmission problems to a host system. The beeper pitch codes modify
the pitch (frequency) of the error tone the base emits when there is an error. Default
= Low.
Number of Beeps - Base Error
The number of beeps and LED flashes emitted by the base for an error condition
can be programmed from 1 - 9. For example, if you program this option to have five
error beeps, there will be five error beeps and five LED flashes in response to an
error. To change the number of error beeps, scan the barcode below and then scan
a digit (1-9) from the Programming Chart, beginning on page 311, then Save.
Default = 1.
Medium (3250 Hz)
High (4200 Hz)
* Low/Razz (250 Hz)
Medium (3250 Hz)
High (4200 Hz)
Number of Base Error Beeps/LED Flashes

Honeywell Xenon XP 1952g Specifications

General

Type	Handheld bar code reader
Sensor type	-
Scanner type	1D/2D
Pitch reading angle	-45 - 45 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	Code 128, Code 39, U.P.C.
Optical sensor resolution (W x H)	1240 x 800 pixels
2D (matrix & stacked) barcodes supported	Data Matrix, PDF417, QR Code
Battery life	14 h
Charging time	4.5 h
Battery capacity	2400 mAh
Power source type	Battery
Number of reads per charge	50000
Wireless range	10 m
Bluetooth version	4.2
Operating frequency	2400 MHz
Standard interfaces	Bluetooth, USB
Connectivity technology	Wired & Wireless
Product color	Black
LED indicators	Yes
Built-in display	No
Protection features	Bump resistant
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	99 mm
Width	64 mm
Height	165 mm
Weight	220 g
