HP 3600 v2 Series Security Configuration Guide

285

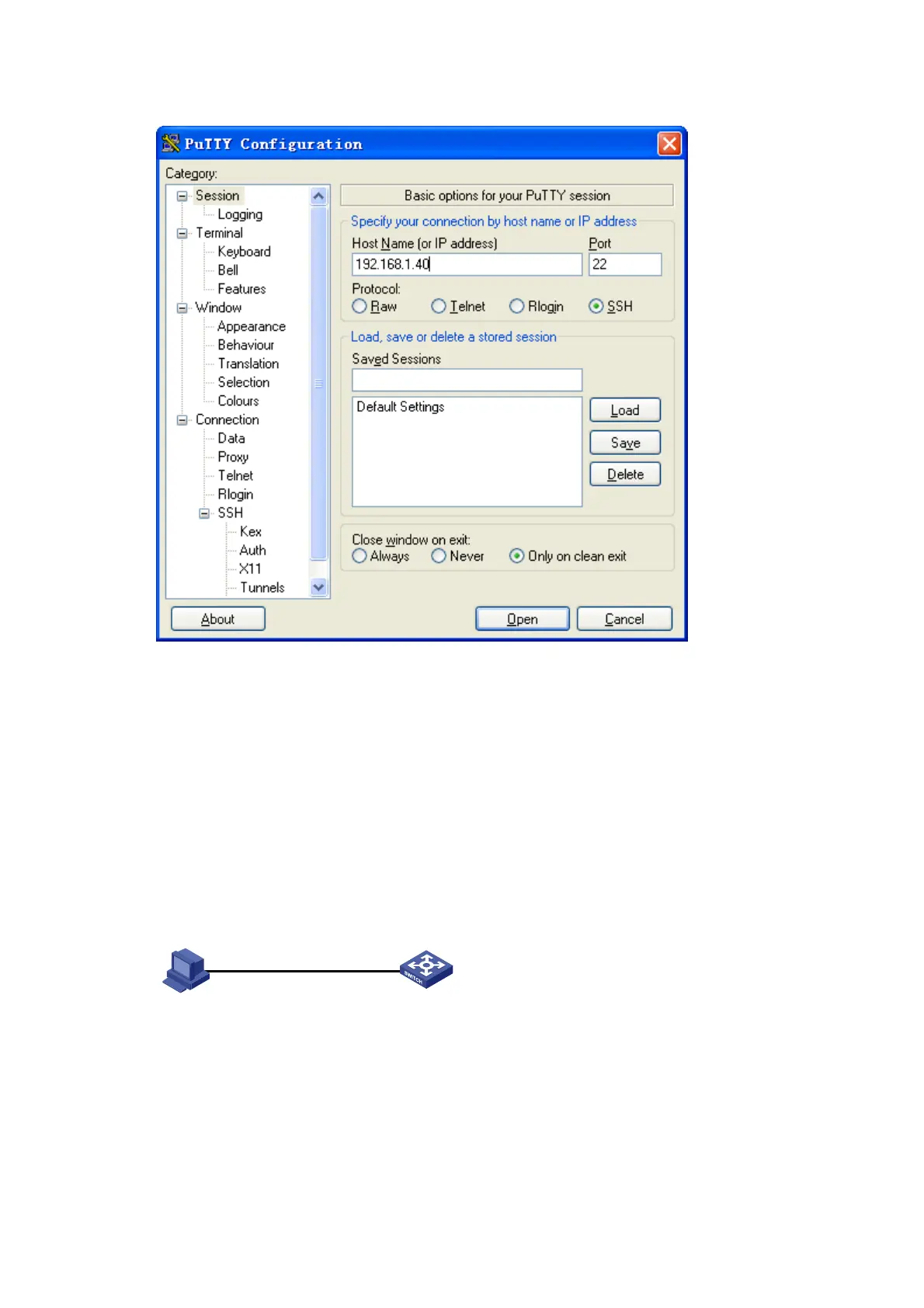

Figure 103 SSH client configuration interface
Click Open to connect to the server. If the connection is normal, you will be prompted to enter the
username and password. After entering the username (client001) and password (aabbcc), you can enter
the configuration interface of the server.
When the switch acts as a server for publickey authentication
Network requirements
As shown in Figure 104, a host (the SSH client) and a switch (the SSH server) are directly connected.
Configure an SSH user on the switch so that the host can securely log in to the switch after passing
publickey authentication. Use the RSA public key algorithm.
Figure 104 Network diagram
SSH client SSH server
Host Switch
192.168.1.56/24
Vlan-int1
192.168.1.40/24
Configuration procedure
