C–2 Technical Reference Guide

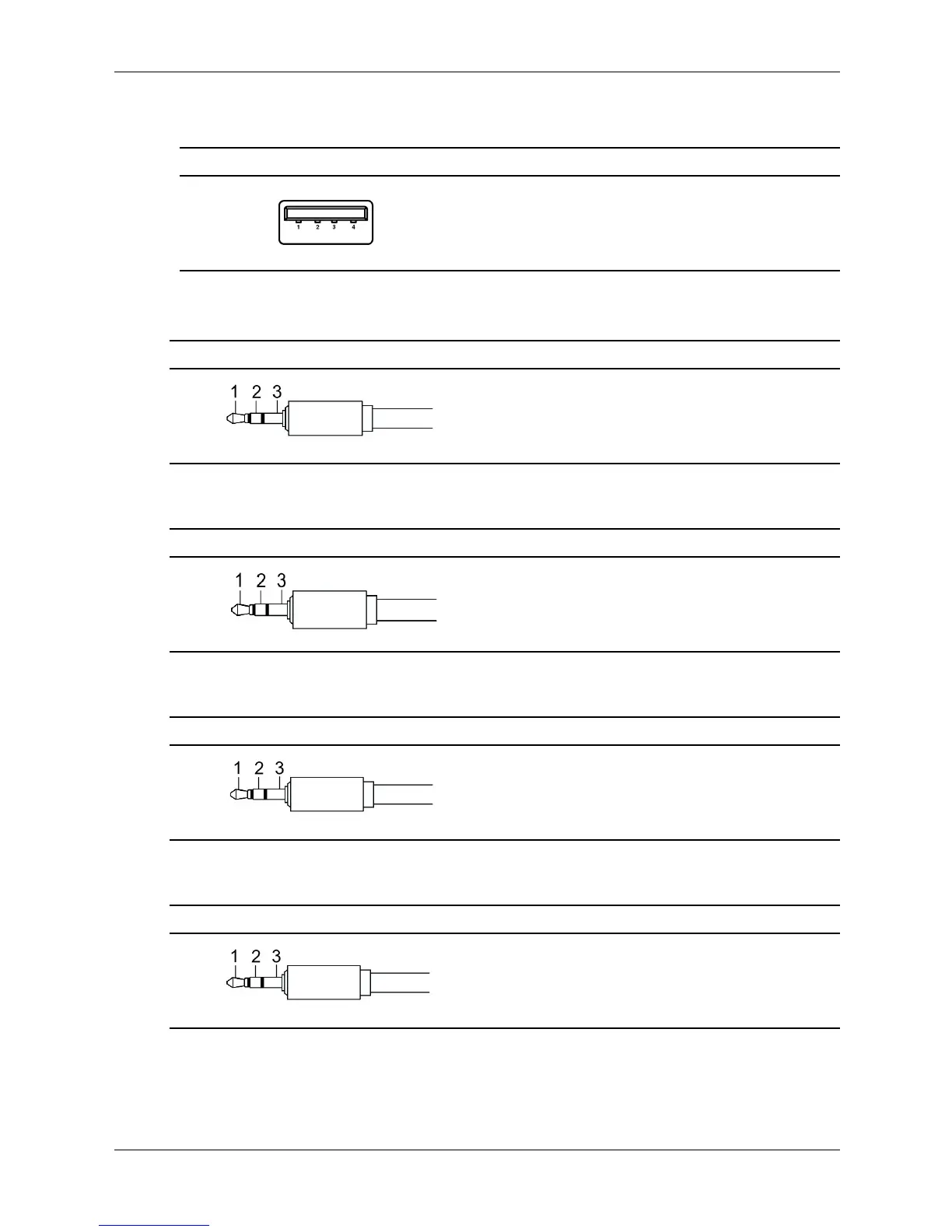

Cable Pin-Outs
USB
Microphone
Headphone
Line-in Audio
Line-out Audio
connector pin signal
1
2
3
4
+5 VDC
- Data
+ Data
Ground
connector and icon (1/8”) pin signal
1 (Tip)
2 (Ring)
3(Shield)
Audio
Power
Ground
connector and icon (1/8”) pin signal
1 (Tip)
2 (Ring)
3(Shield)
Audio_Left
Audio_Right
Ground
connector and icon (1/8”) pin signal
1 (Tip)
2 (Ring)
3(Shield)
Audio_In_Left
Audio_In_Right
Ground
connector and icon (1/8”) pin signal
1 (Tip)
2 (Ring)
3(Shield)
Audio_Out_Left
Audio_Out_Right
Ground
