Technical Reference Guide 3–3
Installing or Replacing Parts

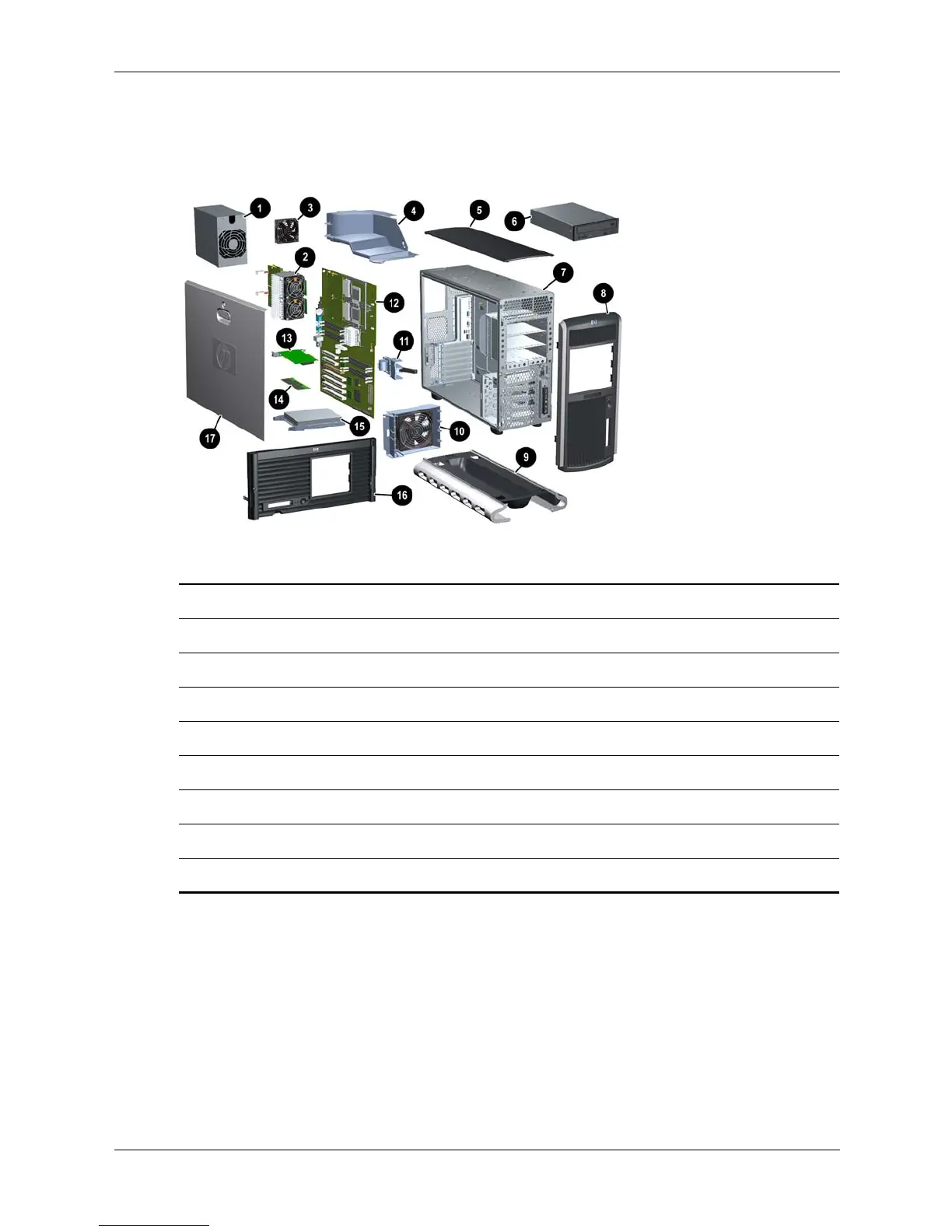

Exploded View of Main System Components
This diagram identifies main system components. For a comprehensive component diagram, see
the label on the inside of the main access panel.
Exploded view of system components
1 Power supply : Hard drive fan
2 CPU0 and CPU1 with power modules ; AGP retainer
3 Chassis fan < System board
4 Airflow guide and memory fan = AGP graphics card
5 Top panel > Memory module
6 Optical drive ? Hard drive with rails
7 Chassis @ Front access panel (rack-mount)
8 Front access panel (tower) A Main (side) access panel
9 Pedestal
