Technical Reference Guide 1–9
Product Information
Rear Panel

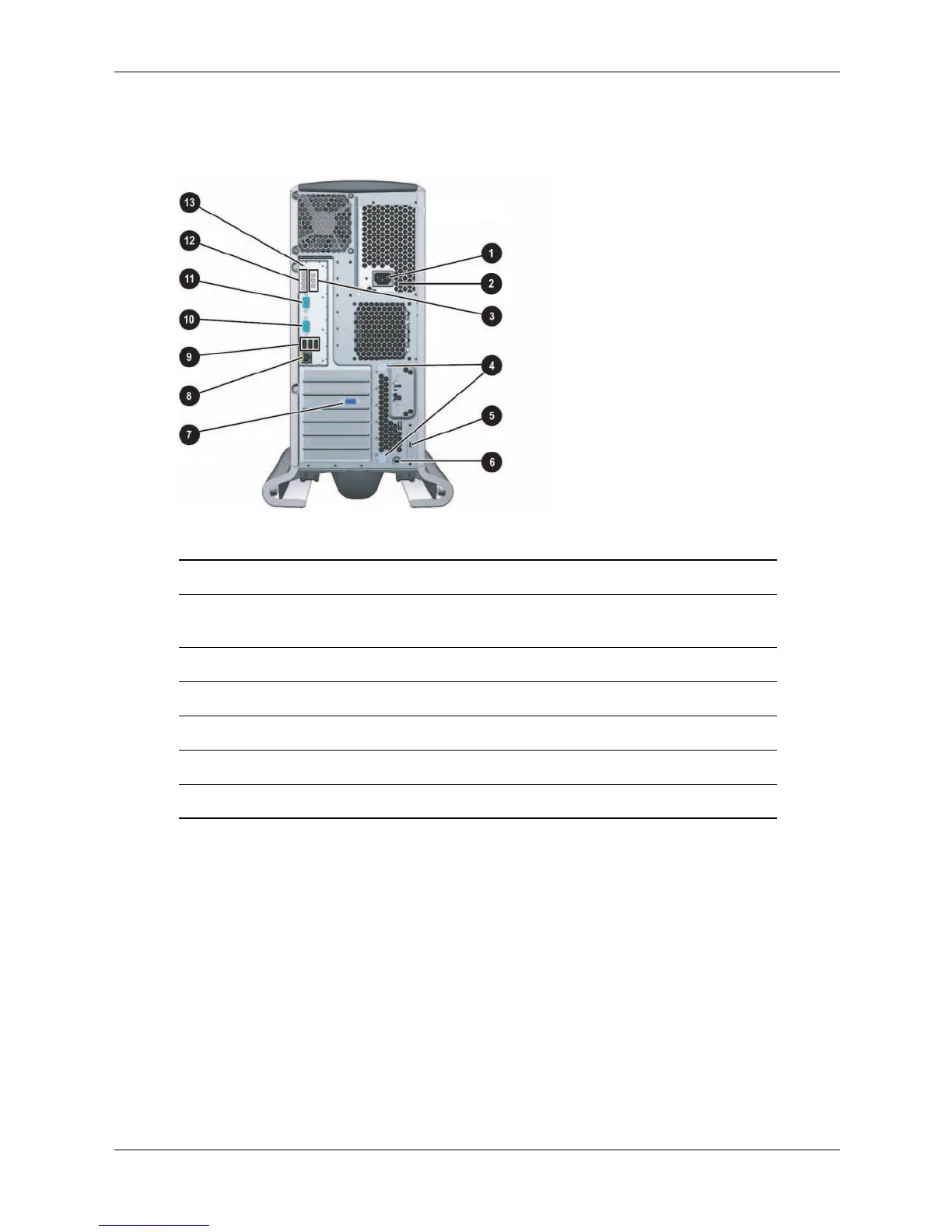

The HP workstation c8000 rear panel has the following connectors and features:
Rear panel, tower configuration
1 Power cord connector 8 LAN connector and LEDs
2 Built-In Self Test LED (power supply
LED behind ventilation holes)
9 Three USB connectors
3 On-board diagnostic LEDs - Serial connector B
4 PCI/AGP retention release ; Serial connector A
5 External SCSI connector (option) < Diagnostic LEDs
6 Security cable slot = Transfer-of-control (TOC) button
7 Monitor connector (on graphics card)
