Technical Reference Guide C–5

Cable Pin-Outs

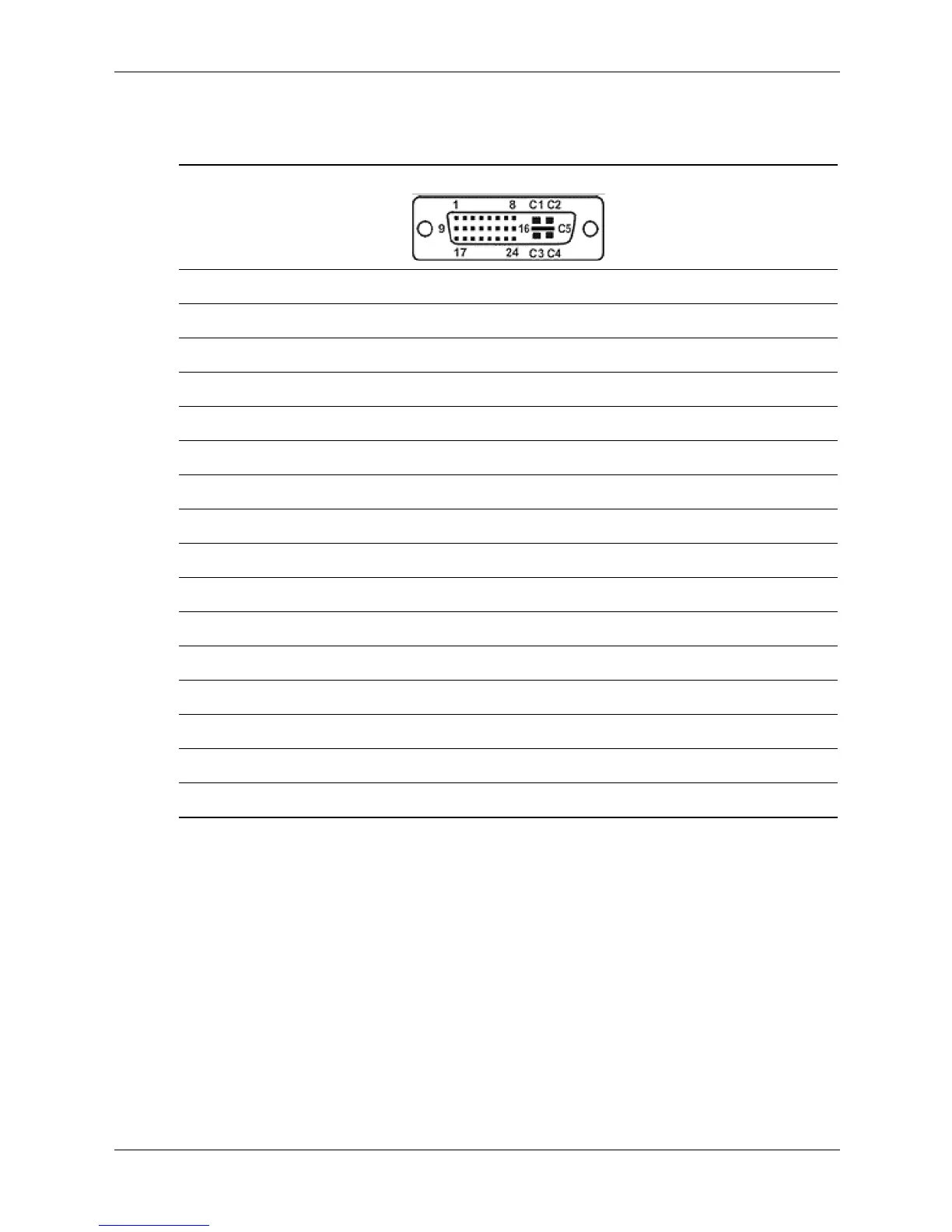

Monitor (DVI)

connector

pin signal pin signal

1 T.M.D.S DATA 2- 16 HOT PLUG DETECT

2 T.M.D.S DATA 2+ 17 T.M.D.S DATA 0-

3 T.M.D.S DATA 2/4 SHIELD 18 T.M.D.S DATA 0+

4 T.M.D.S DATA 4- 19 T.M.D.S DATA 0/5 SHIELD

5 T.M.D.S DATA 4+ 2 0 T.M.D.S DATA 5-

6 DDC CLOCK 21 T.M.D.S DATA 5+

7 DDC DATA 22 T.M.D.S CLOCK SHIELD

8 ANALOG VERT. SYNC 23 T.M.D.S CLOCK+

9 T.M.D.S DATA 1- 24 T.M.D.S CLOCK-

10 T.M.D.S DATA 1+

11 T.M.D.S DATA 1/3 SHIELD C1 ANALOG RED

12 T.M.D.S DATA 3- C2 ANALOG GREEN

13 T.M.D.S DATA 3+ C3 ANALOG BLUE

14 +5V POWER C4 ANALOG HORZ SYNC

15 GND C5 ANALOG GROUND
