HP c8000 User Manual

Technical Reference Guide C–3
Cable Pin-Outs

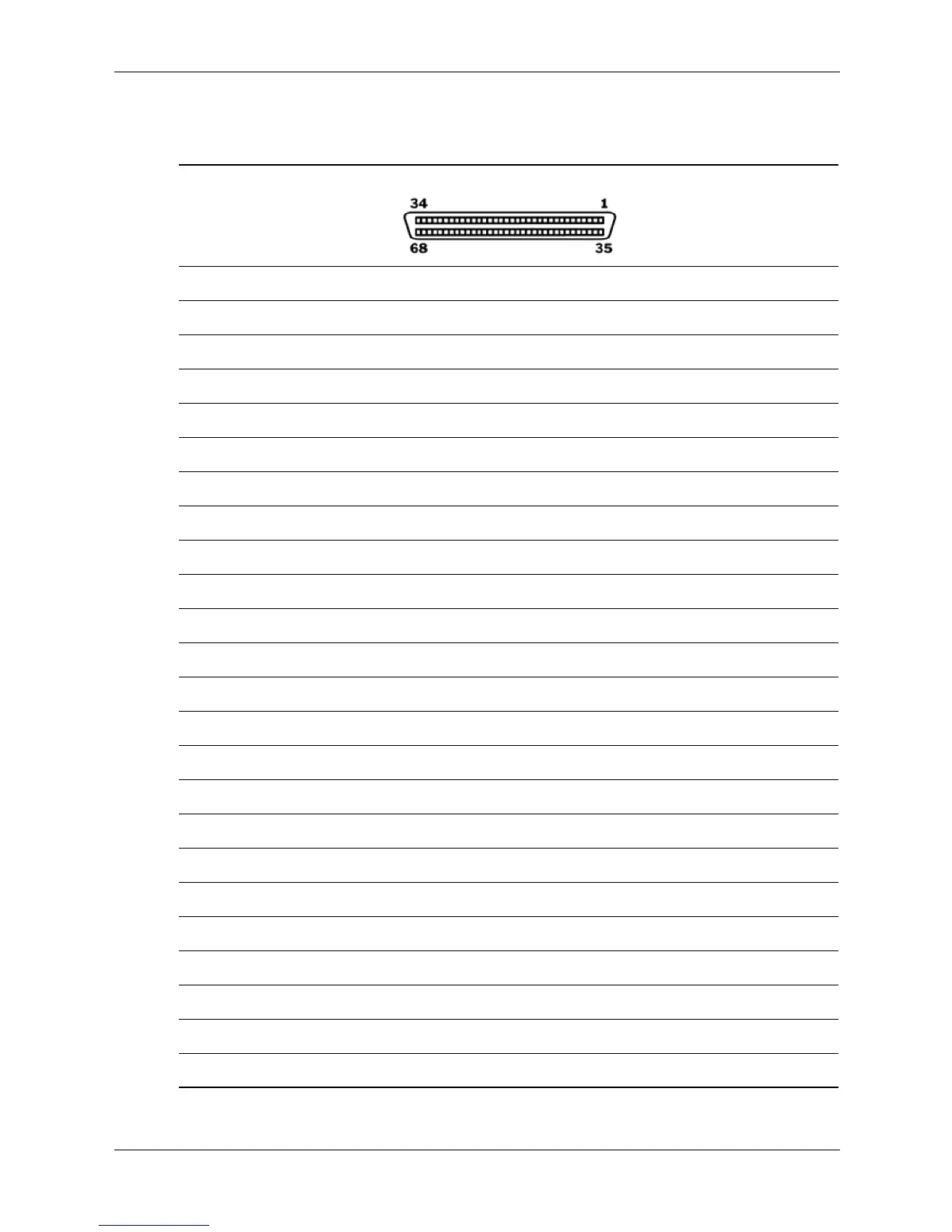

Ultra SCSI
connector
pin signal pin signal
1 +DB12 35 -DB12
2 +DB13 36 -DB13
3 +DB14 37 -DB14
4 +DB15 38 -DB15
5 +DPB1 39 -DPB1
6 GND 40 GND
7 +DB0 41 -DB0
8 +DB1 42 -DB1
9 +DB2 43 -DB2
10 +DB3 44 -DB3
11 +DB4 45 -DB4
12 +DB5 46 -DB5
13 +DB6 47 -DB6
14 +DB7 48 -DB7
15 +DPB 49 -DPB
16 DIFFSENSE 50 GND
17 TERMPWR 51 TERMPWR
18 TERMPWR 52 TERMPWR
19 RES 53 RES
20 +ATN 54 -ATN
21 GND 55 GND
22 +BSY 56 -BSY
23 +ACK 57 -ACK
