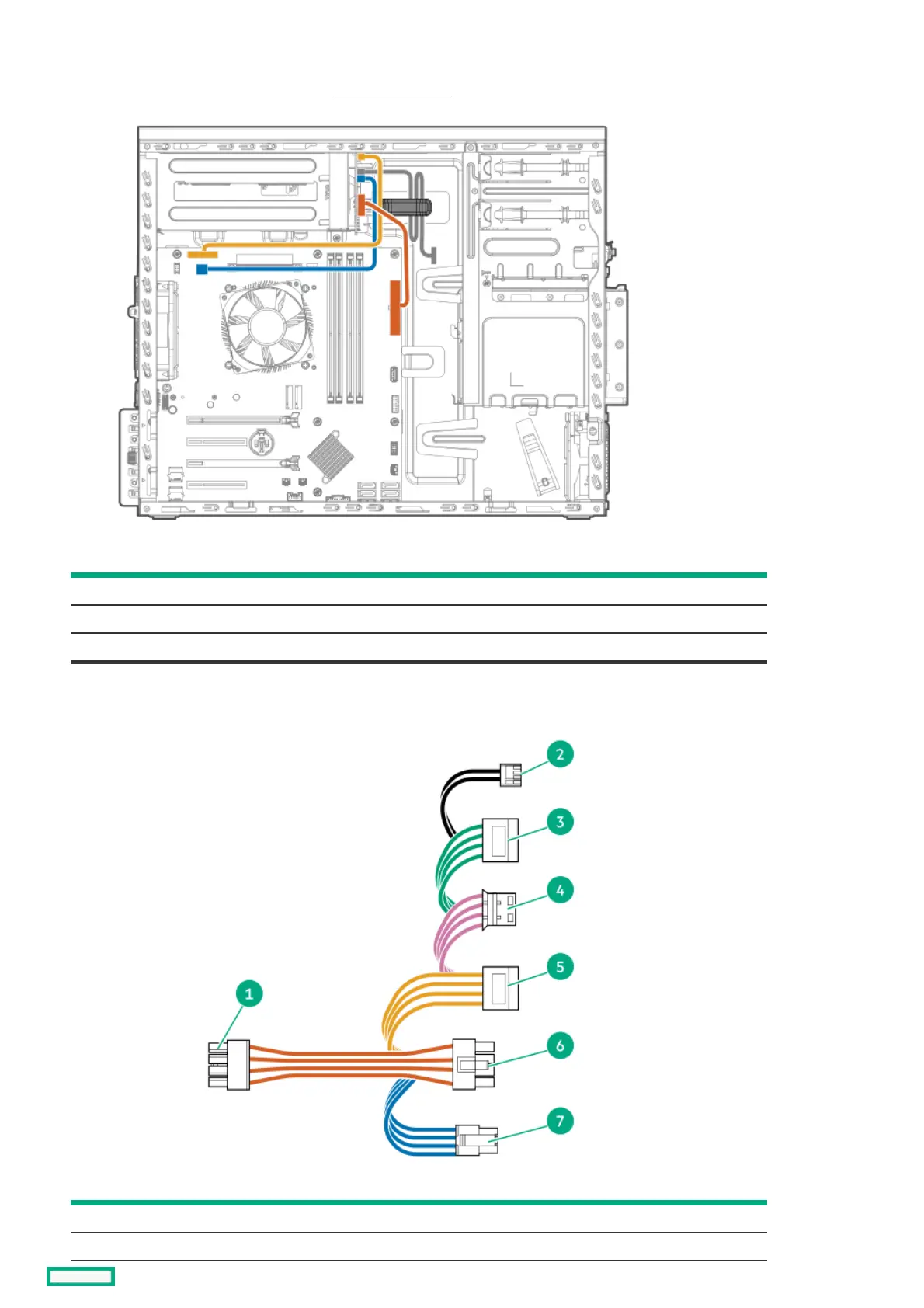

Flexible Slot power supply cablingFlexible Slot power supply cabling
The gray cable in the following diagram is the power fan-out cable.
ColorColor DescriptionDescription
Orange 24-pin power supply cable
Blue 4-pin power supply cable
Gold Flexible Slot power supply sideband cable
Flexible Slot power fan-out cableFlexible Slot power fan-out cable connectors connectors
ItemItem Cable labelCable label ConnectionConnection
1 HDD PWR (PDB) Connects to RPS power distribution board
2 ODD PWR Connects to the optical drive
