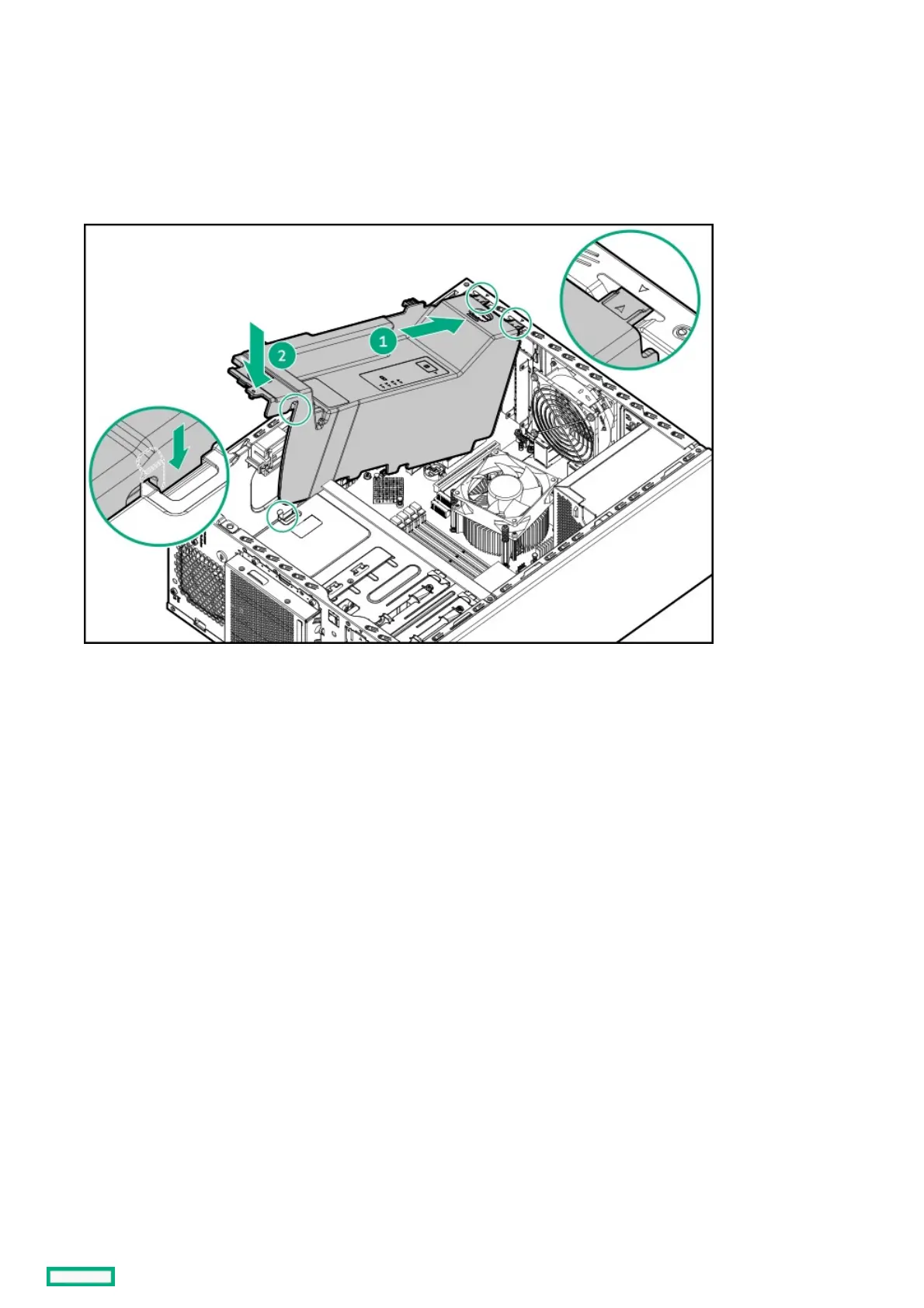

Install the air baffleInstall the air baffle

The air baffle is part of the PCI fan and air baffle option kit (P06303-B21).

ProcedureProcedure

1. Insert the baffle tabs into the slots on the rear chassis.

2. Press the front end of the baffle into the chassis.

Install the air baffle 47
