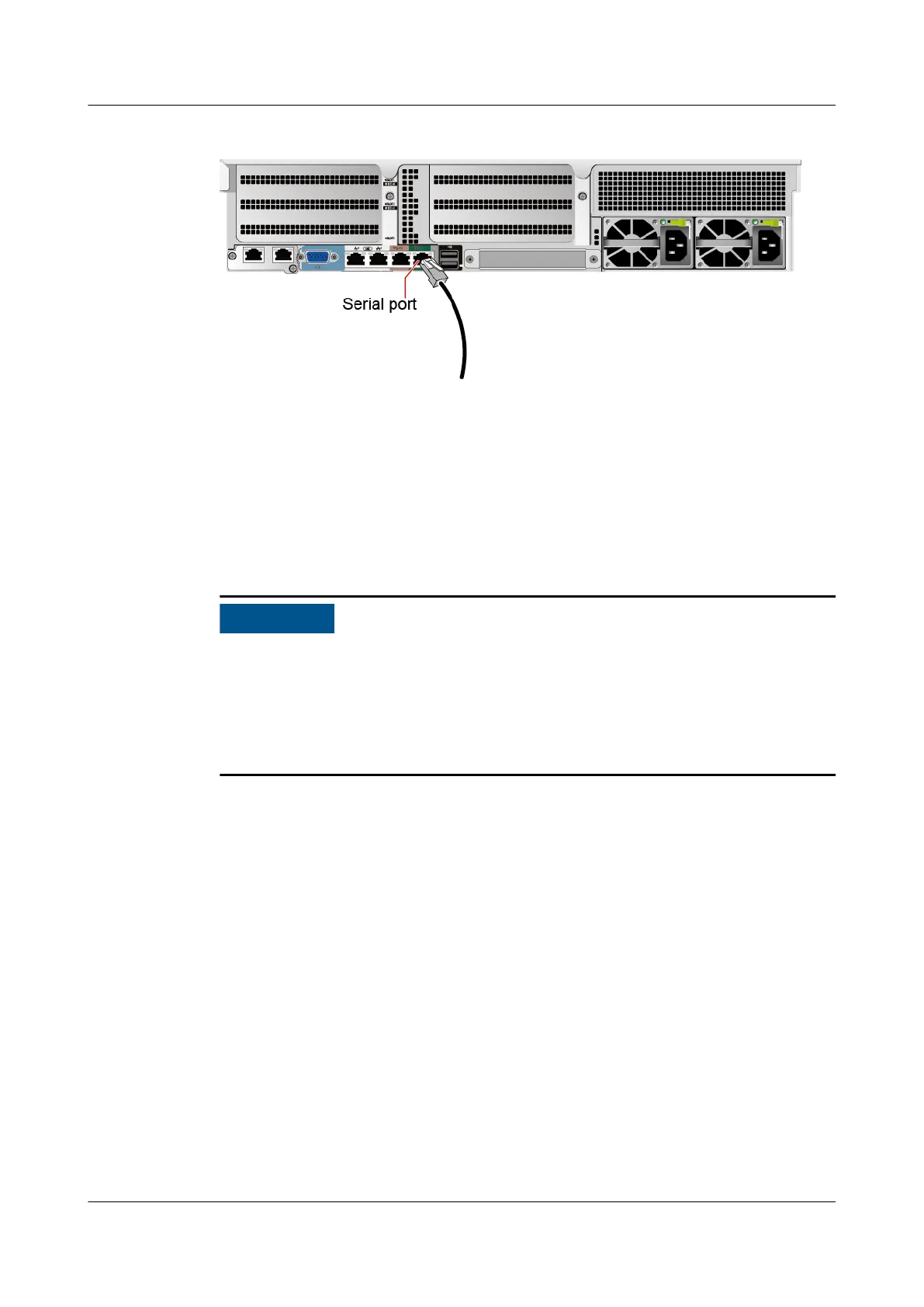

Figure 7-22 Connecting a serial cable
----End
7.2.6.8 Connecting PSU Cables
7.2.6.8.1 Connecting the AC PSU Cable
Before connecting power cables, ensure that the server has been correctly installed. For
details, see 7.2.5 Installing a 2288H V5.
NO TICE
l Use dedicated power cables to ensure equipment and personal safety.
l Use power cables only for dedicated servers. Do not use them for other devices.
l Connect the power cables of the active and standby PSUs to different power distribution
units (PDUs) to ensure reliable system operation.
l Ground the equipment before powering it on.
Procedure
Step 1 Take the spare part out of its ESD bag.
Step 2 Connect one end of the power cable to the power socket on the PSU of the server.
FusionServer Pro 2288H V5 Server
User Guide
7 Installation and Configuration
Issue 08 (2019-10-30) Copyright © Huawei Technologies Co., Ltd. 95
