Huawei FusionServer Pro 2288H V5 User Manual

41 Left mounting ear connector
(LCIA BOARD/J161)
42
Jumper (J176)
b
43 I/O NIC connectors (IO
BOARD/J159/J158)
44 RAID controller card
connector (RAID CARD/J48)
45 Riser card slot 2 (CPU 2/
J155)
- -
l a: "10GE optical port" corresponds to the mainboard integrated with two 10GE optical
ports and two GE electrical ports. "10GE electrical port" corresponds to the mainboard
integrated with two 10GE and two GE electrical ports.
l b: COM_SW(ON) is used for changing the connection direction of the physical serial
port. BMC_RCV(ON) is used for restoring default iBMC settings.
2.10.2 Drive Backplane
Front-Drive Backplanes
l 8 x 2.5" drive backplane

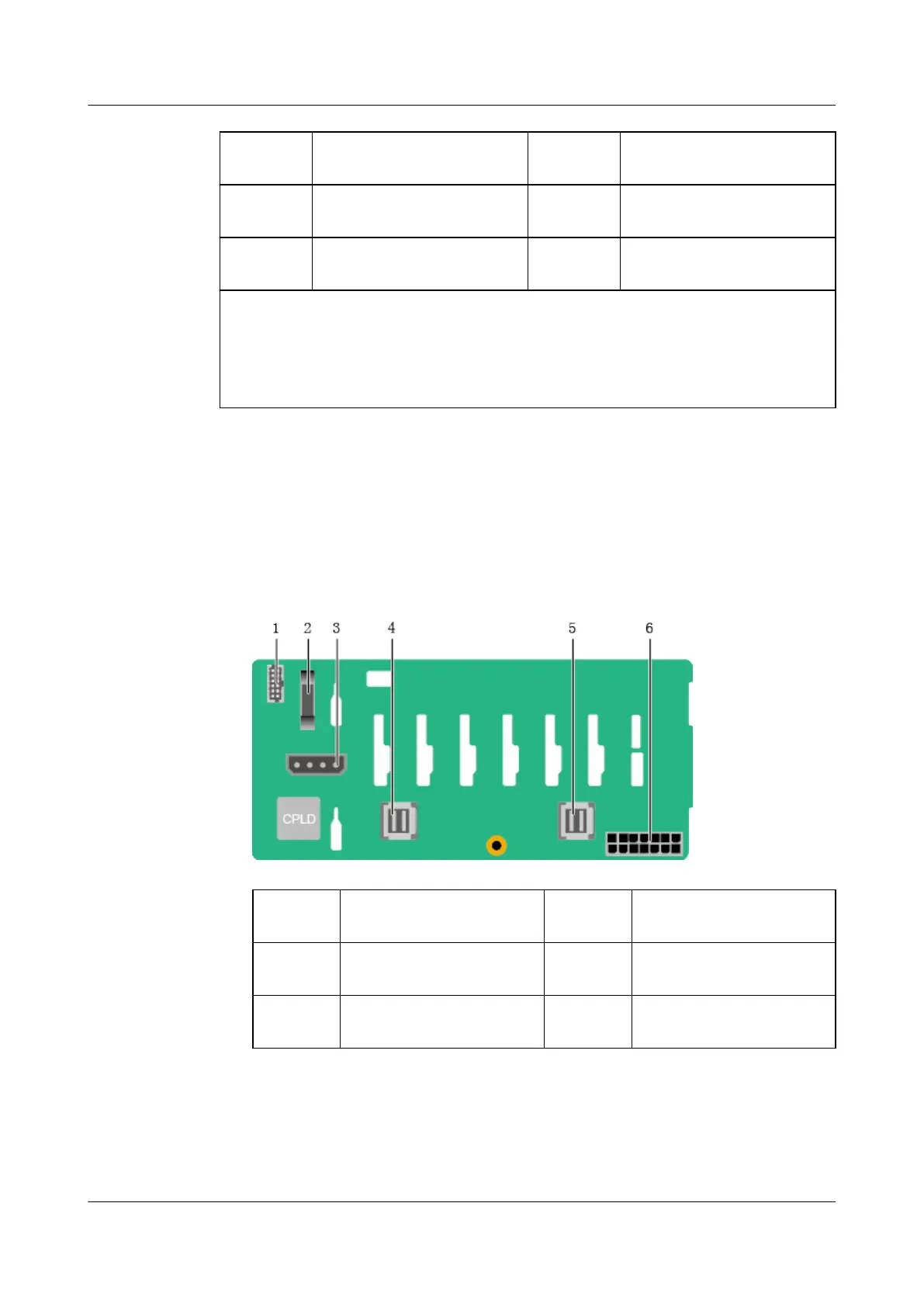

Figure 2-51 8 x 2.5" drive backplane (BOM 03022HXW)
1
Front VGA connector (J26) 2 Backplane signal cable
connector (J1)
3 DVD drive power connector
(J11)
4 mini-SAS HD connector
(PORT B/J29)
5 mini-SAS HD connector
(PORT A/J28)
6 Power connector (J24)
l 12 x 3.5" drive EXP backplane
FusionServer Pro 2288H V5 Server
User Guide
2 Hardware Description
Issue 08 (2019-10-30) Copyright © Huawei Technologies Co., Ltd. 52

Huawei FusionServer Pro 2288H V5 Specifications

General

Form Factor	2U rack server
Processor	Intel Xeon Scalable processors
Max Processors	2
Memory	Up to 3 TB
Memory Type	DDR4
Operating Temperature	5°C to 40°C
Storage	Supports up to 12 x 3.5-inch drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	4 x GE ports
Power Supply	800W or 1600W PSU options
Dimensions (H x W x D)	86.1 mm x 447 mm x 748 mm
