2.7.1 PCIe Cards
The PCIe card provides ease of expandability and connection.
l Contact your local Huawei sales representative or use the Intelligent Computing
Compatibility Checker to determine the components to be used.
2.7.2 PCIe Slots
PCIe Slots

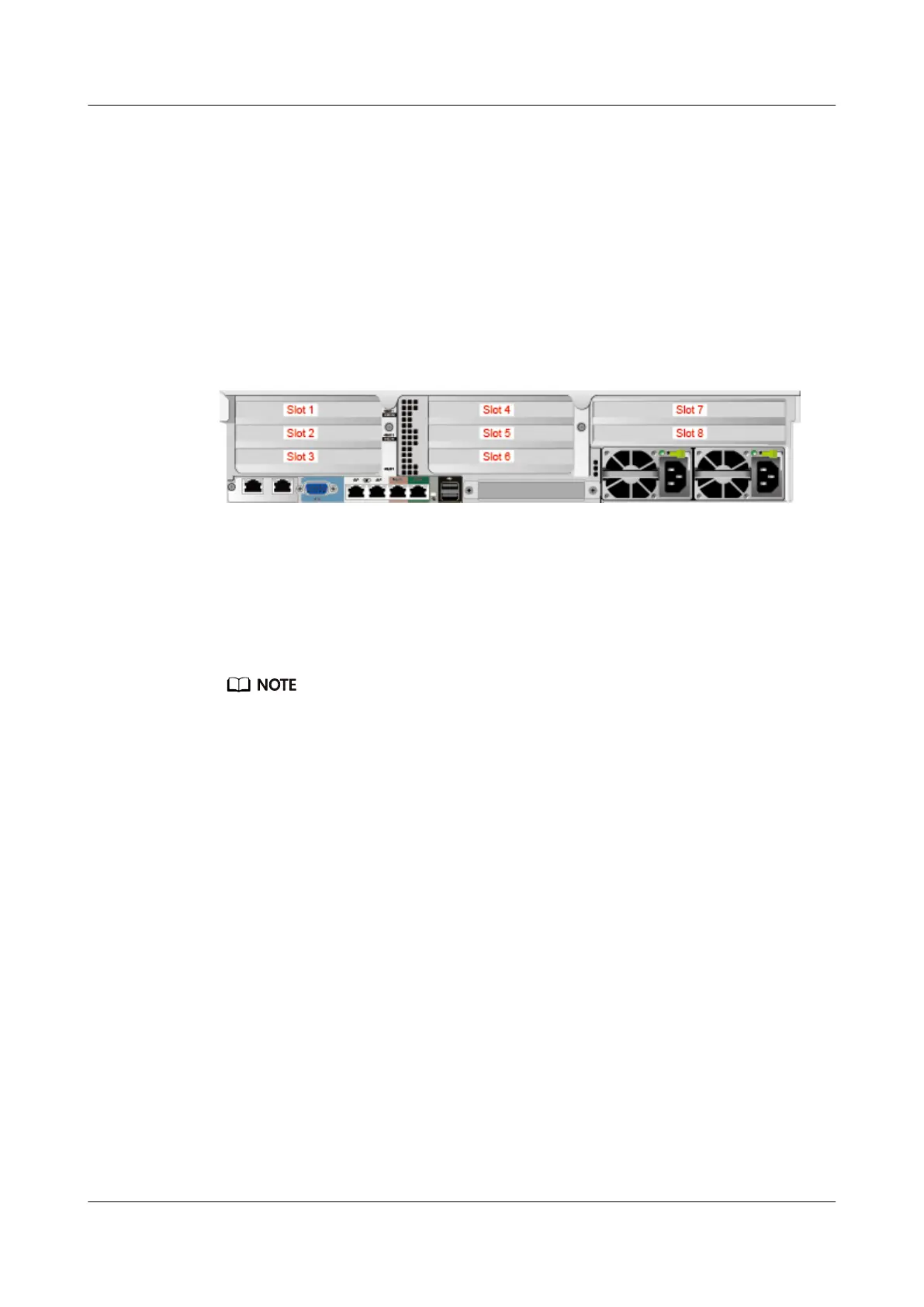

Figure 2-41 PCIe slots
l I/O module 1 provides slots 1 to 3. If a dual-slot PCIe riser module is used, slot 2 is
unavailable.
l I/O module 2 provides slots 4 to 6. If a dual-slot PCIe riser module is used, slot 5 is
unavailable.
l I/O module 3 provides slots 7 to 8. If a single-slot PCIe riser module is used, slot 8 is
unavailable.
Observe the following rules when configuring GPU PCIe cards:
l A dual-slot PCIe riser module in I/O module 1 or 2 can house only one single-slot or dual-slot PCIe
x16 GPU card in slot 1 or 4.
l A three-slot PCIe riser module in I/O module 1 or 2 does not support GPU cards.
l A single-slot PCIe riser module in I/O module 3 can house only one HHHL single-slot x16 GPU
card.
l I/O module 3 does not support GPU cards when it is installed with a dual-slot PCIe riser module.
l A maximum of two dual-slot GPU cards or three single-slot GPU cards are supported. All GPU
cards except HHHL P4 GPU cards must be installed in dedicated PCIe riser modules.
PCIe Riser Modules
l PCIe riser module 1 (universal)
– Provides PCIe slots 1 and 3 when installed in I/O module 1.
– Provides PCIe slots 4 and 6 when installed in I/O module 2.
FusionServer Pro 2288H V5 Server
User Guide
2 Hardware Description
Issue 08 (2019-10-30) Copyright © Huawei Technologies Co., Ltd. 41

Huawei FusionServer Pro 2288H V5 Specifications

General

Form Factor	2U rack server
Processor	Intel Xeon Scalable processors
Max Processors	2
Memory	Up to 3 TB
Memory Type	DDR4
Operating Temperature	5°C to 40°C
Storage	Supports up to 12 x 3.5-inch drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	4 x GE ports
Power Supply	800W or 1600W PSU options
Dimensions (H x W x D)	86.1 mm x 447 mm x 748 mm
