Configuration Maximum
Front Drives
Maximum
Rear Drives
Maximum
Built-in
Drives
Drive
Management
Mode
l a: The front drives and I/O module 3 support only 2.5-inch drives.
NOTE
Other front drive configurations and I/O modules support 2.5-inch and 3.5-inch drives.
l b: If an SP460C-M (Broadcom SAS3516) RAID controller card is used, I/O module 2
cannot hold drives.
l c: I/O module 3 supports only SAS/SATA drives when the server is configured with an
SR760-M (Broadcom SAS3416), SR760IT-M (Broadcom SAS3416), or SP460C-M
(Broadcom SAS3516) RAID controller card.
l d: Built-in drives are supported only when the server is configured with an SR760-M
(Broadcom SAS3416), SR760IT-M (Broadcom SAS3416), or SP460C-M (Broadcom
SAS3516) RAID controller card.
l e: Only the SR760-M (Broadcom SAS3416) or SR760IT-M (Broadcom SAS3416)
RAID controller card can be used to manage common drives.
l f: Only PCH can be used for drive management. The PCH supports only SATA drives.
l g: A RAID controller card or PCH can be used to manage common drives (slots 0 to 7).
The PCH supports only SATA drives.
l h: Every eight front drives require a RAID controller card. A maximum of three RAID
controller cards are supported.
l Contact your local Huawei sales representative or use the Intelligent Computing
Compatibility Checker to determine the RAID controller card to be used.

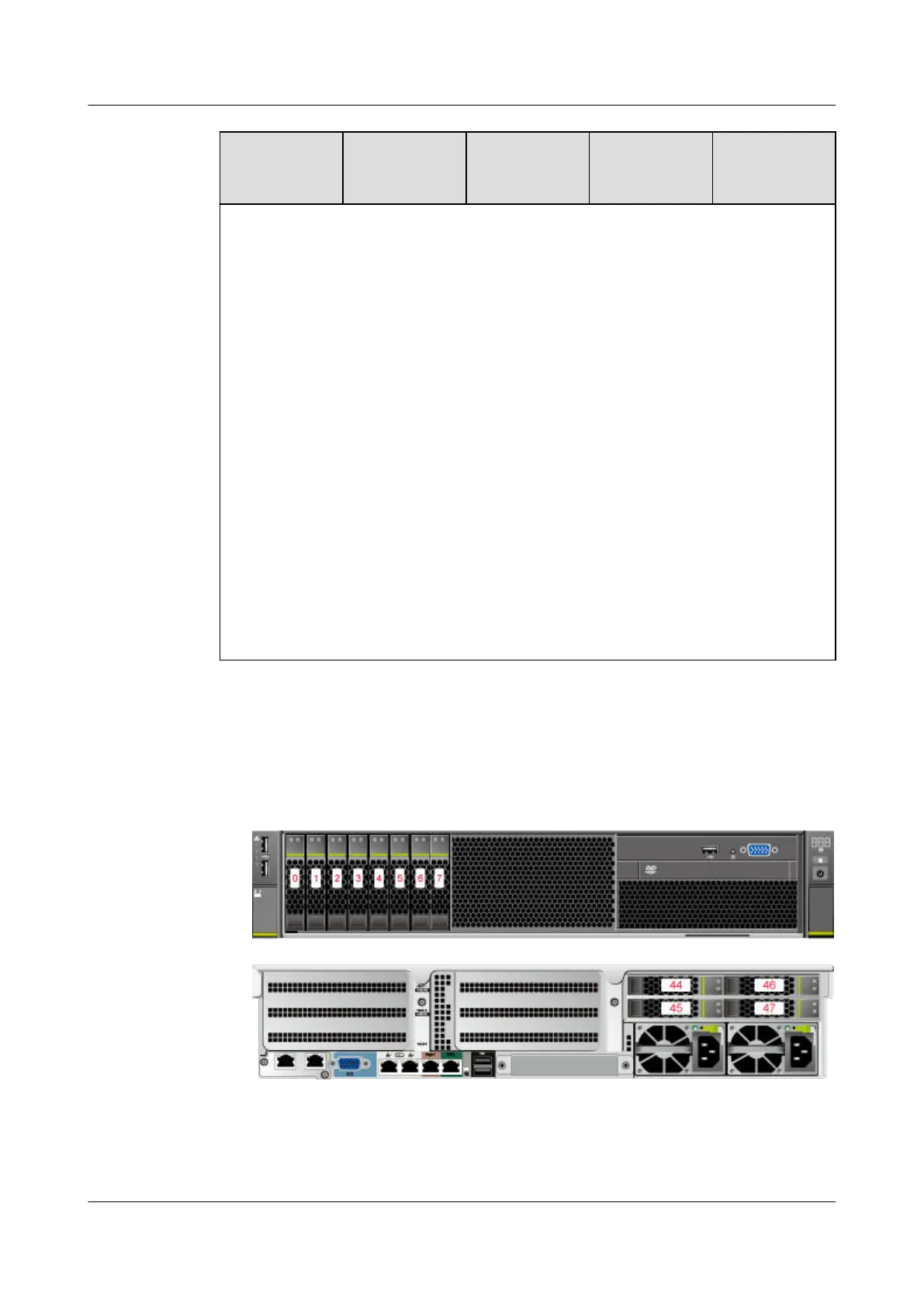

2.5.2 Drive Numbering
l 8 x 2.5" drive configuration
Figure 2-24 Drive numbering
l 12 x 3.5" drive EXP configuration 1
FusionServer Pro 2288H V5 Server
User Guide
2 Hardware Description
Issue 08 (2019-10-30) Copyright © Huawei Technologies Co., Ltd. 31
