Huawei FusionServer Pro 2288H V5 User Manual

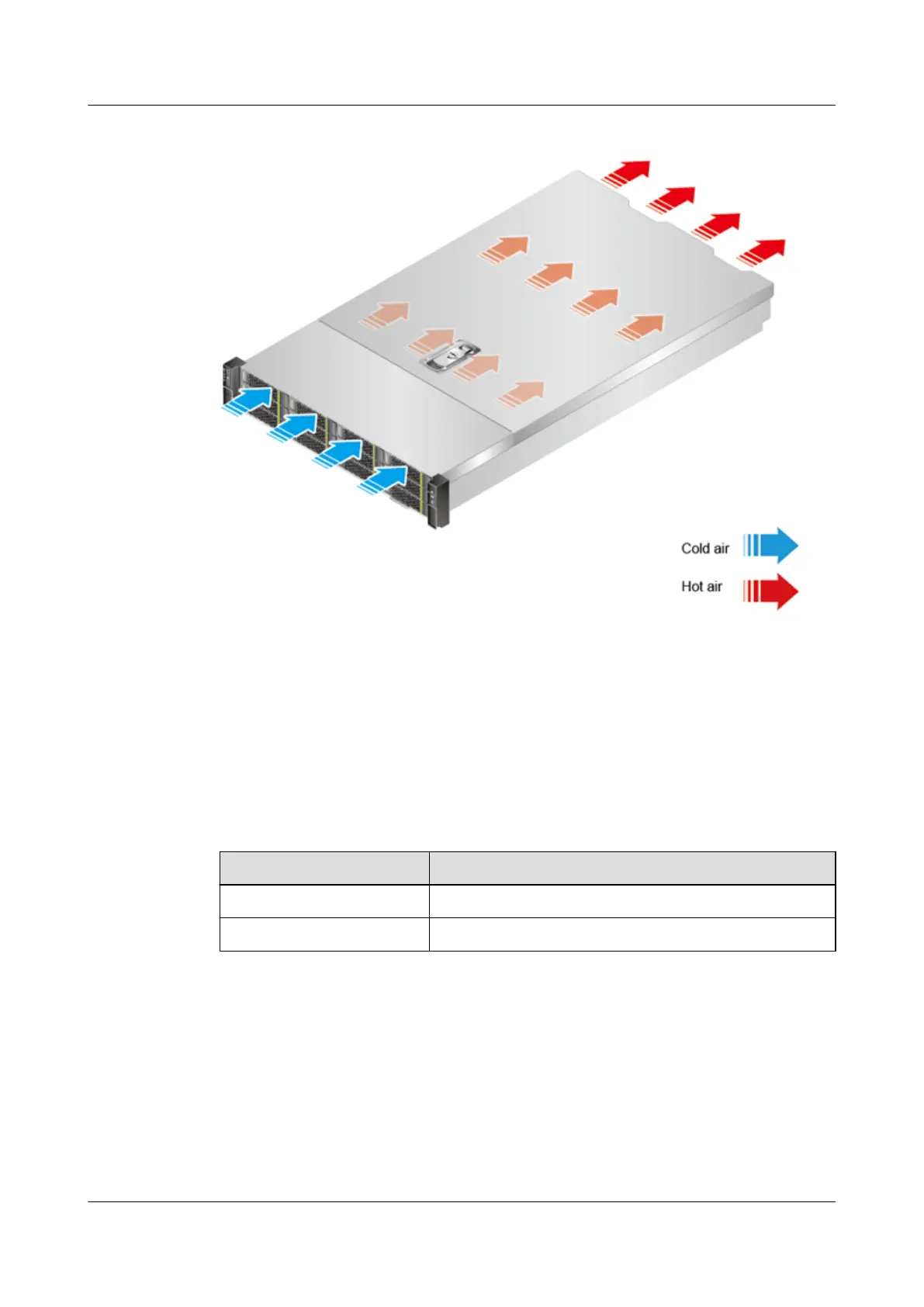

Figure 7-1 Direction of heat dissipation
7.1.2 Temperature and Humidity Requirements
To ensure continued safe and reliable equipment operation, install or position the system in a
well-ventilated, climate-controlled environment.
l Use temperature control devices all year long in any climates.
l In dry and humid areas, maintain ambient humidity within range with humidifiers and
dehumidifiers respectively.
Table 7-1 Temperature and humidity requirements in the equipment room
Item
Description
Temperature 5ºC to 35ºC (41ºF to 95ºF)
Humidity 8% RH to 90% RH (non-condensing)
7.1.3 Cabinet Requirements
l A general 19-inch cabinet with a depth of more than 1000 mm (39.37 in.) which
complies with the International Electrotechnical Commission 297 (IEC 297) standard.
l Air filters installed on cabinet doors.
FusionServer Pro 2288H V5 Server
User Guide
7 Installation and Configuration
Issue 08 (2019-10-30) Copyright © Huawei Technologies Co., Ltd. 74

Huawei FusionServer Pro 2288H V5 Specifications

General

Form Factor	2U rack server
Processor	Intel Xeon Scalable processors
Max Processors	2
Memory	Up to 3 TB
Memory Type	DDR4
Operating Temperature	5°C to 40°C
Storage	Supports up to 12 x 3.5-inch drives
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	4 x GE ports
Power Supply	800W or 1600W PSU options
Dimensions (H x W x D)	86.1 mm x 447 mm x 748 mm
