7.2.4.2 Installing Adjustable Guide Rails
The adjustable guide rails apply to a cabinet with a distance of 543.5 mm to 848.5 mm (21.40
in. to 33.41 in.) between the front and rear mounting bars.
The 2288H V5 servers are stackable onto adjustable guide rails.
Procedure
Step 1 Position a guide rail horizontally, keeping it in contact with the mounting bar in the cabinet
and hook the guide rail. See (1) in Figure 7-6.
The distance between the three holes in each mounting bar for the guide rail must be within 1 U.
Step 2 Plug the second square hole to secure the guide rail. See (2) in Figure 7-6.
Step 3 On the first lower square hole at the rear of the guide rail, insert an M6 screw to secure the
guide rail. See (3) in Figure 7-6.
Although the adjustable guide rails do not need screws for installation, we recommend you use M6
screws at the rear end to make the server more shockproof and secure.

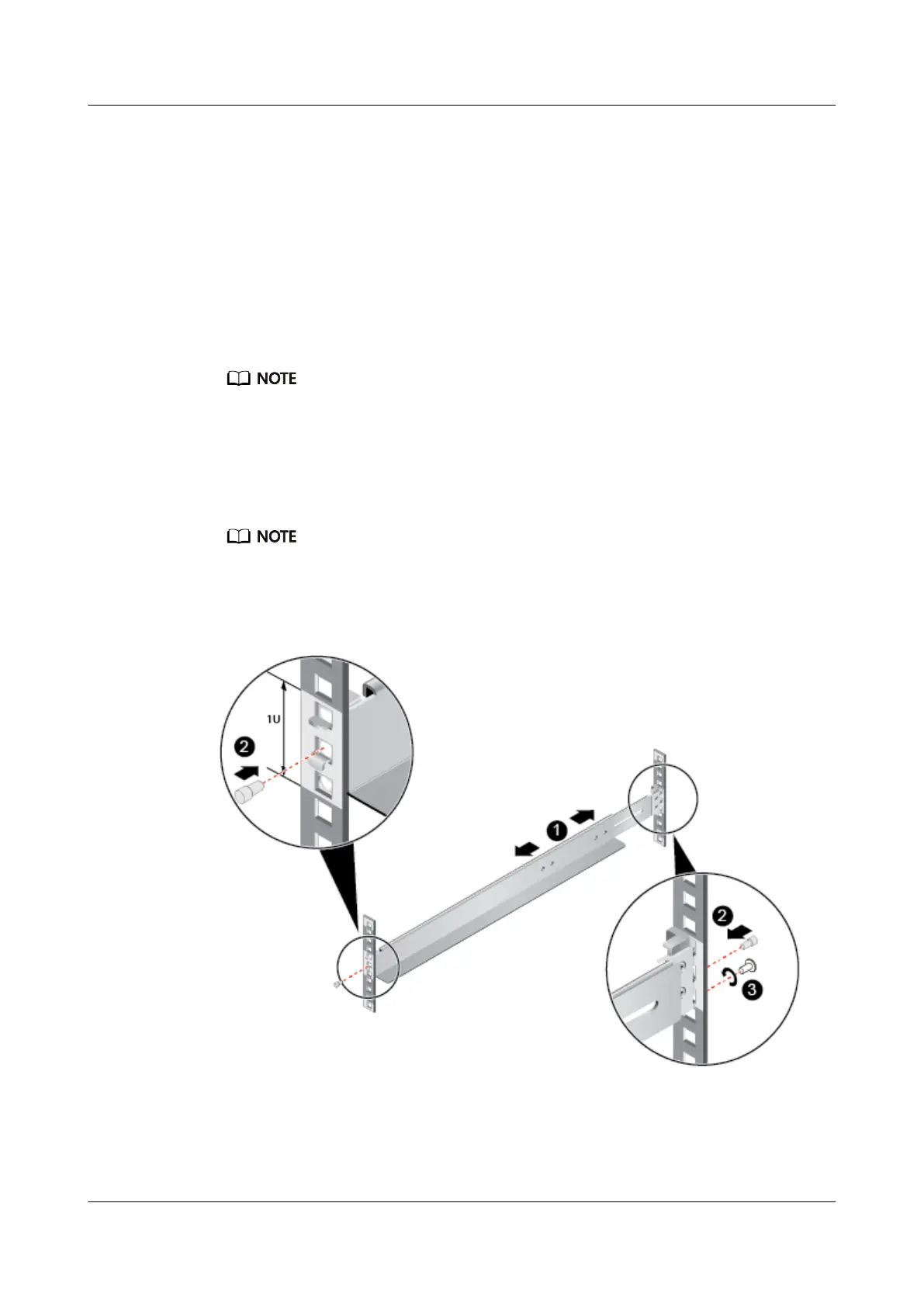

Figure 7-6 Installing an adjustable guide rail
Step 4 Install the other guide rail in the same way.
----End
