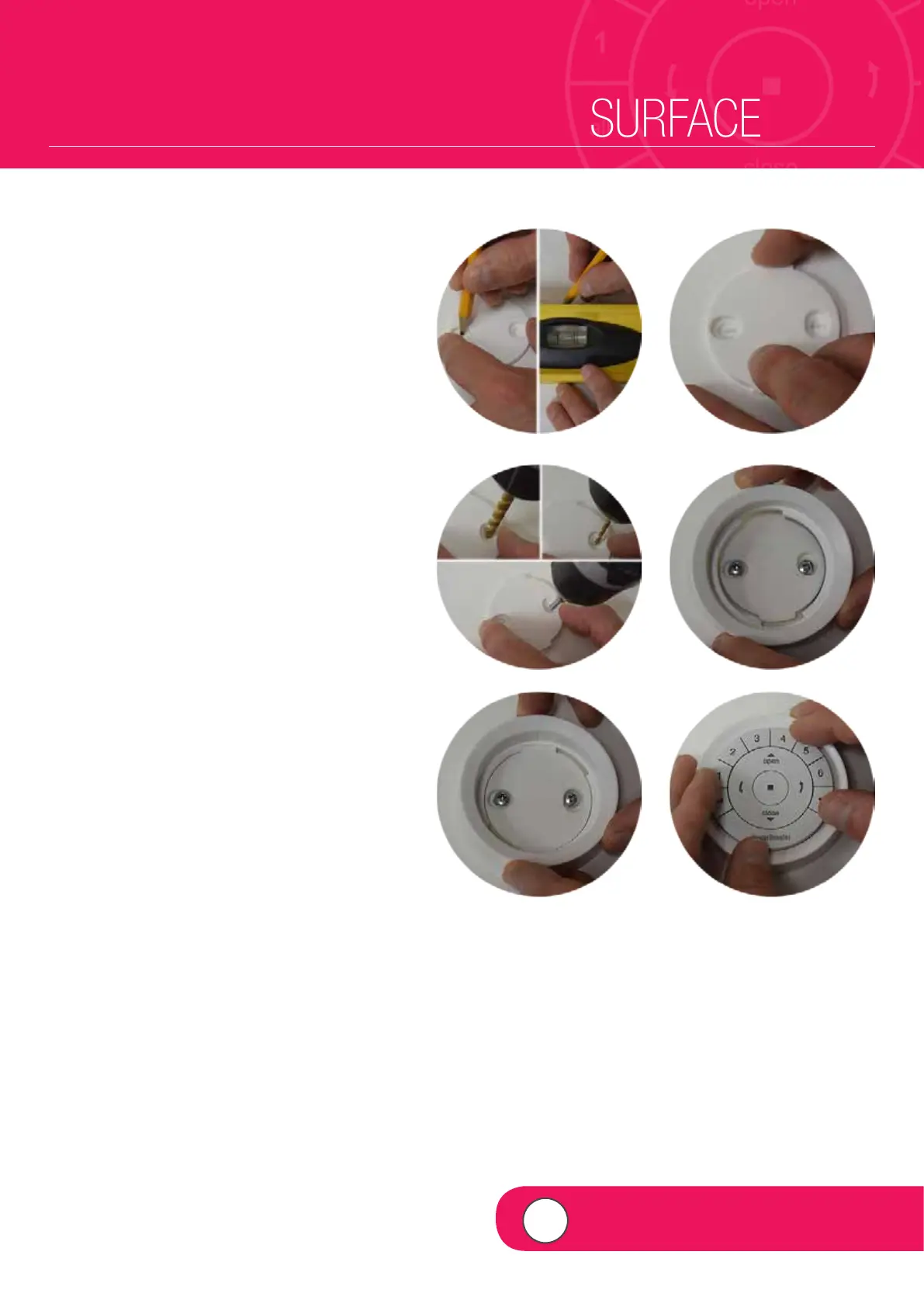

MOUNTING THE POWERVIEW SURFACE
q With a pencil, MARK the location for the
PowerView Surface on the mounting surface.
Option A. Use the screw holes on the Surface
mounting plate to mark the location. The
Hunter Douglas logo on the mounting plate
should appear right side up and be horizontal.
Option B. Use a bubble level with a ruled edge.
Mark a straight horizontal line approximately
45mm in length on the mounting surface.
w PLACE the Surface mounting plate on the
mounting surface, lining up the screw holes
on the mark. The Hunter Douglas logo on the
mounting plate should appear right side up and
be horizontal.
e ATTACH the Surface mounting plate to the
mounting surface using the screws provided.
Option A. If mounting the Surface onto drywall,
use a 3mm drill bit to drill pilot holes. Tap drywall
anchors into the pilot holes until the flange of the
anchor is flush with the drywall.
Option B. If you are mounting the Surface onto
wood, use a 3mm drill bit to drill the screw holes.
r LINE UP the cut-outs on the Surface ring with the
notches on the mounting plate.
t INSERT the Surface ring around the attached
mounting plate and ROTATE it to the right until it
securely locks into place.
NOTE: If the texture of mounting surface
is uneven, insert the foam spacers into the
corresponding grooves on the back side of the
Surface ring before inserting the ring onto the
mounting plate.
y LINE UP the raised notches of the Surface remote
with the indentations in the Surface ring and
INSERT the Surface Remote until it is snug,
NOTE: The Hunter Douglas logo on the Surface
remote should appear right side up, be horizontal.
